ABB ACS550-U1-097A-4 | 3AUA0000011039

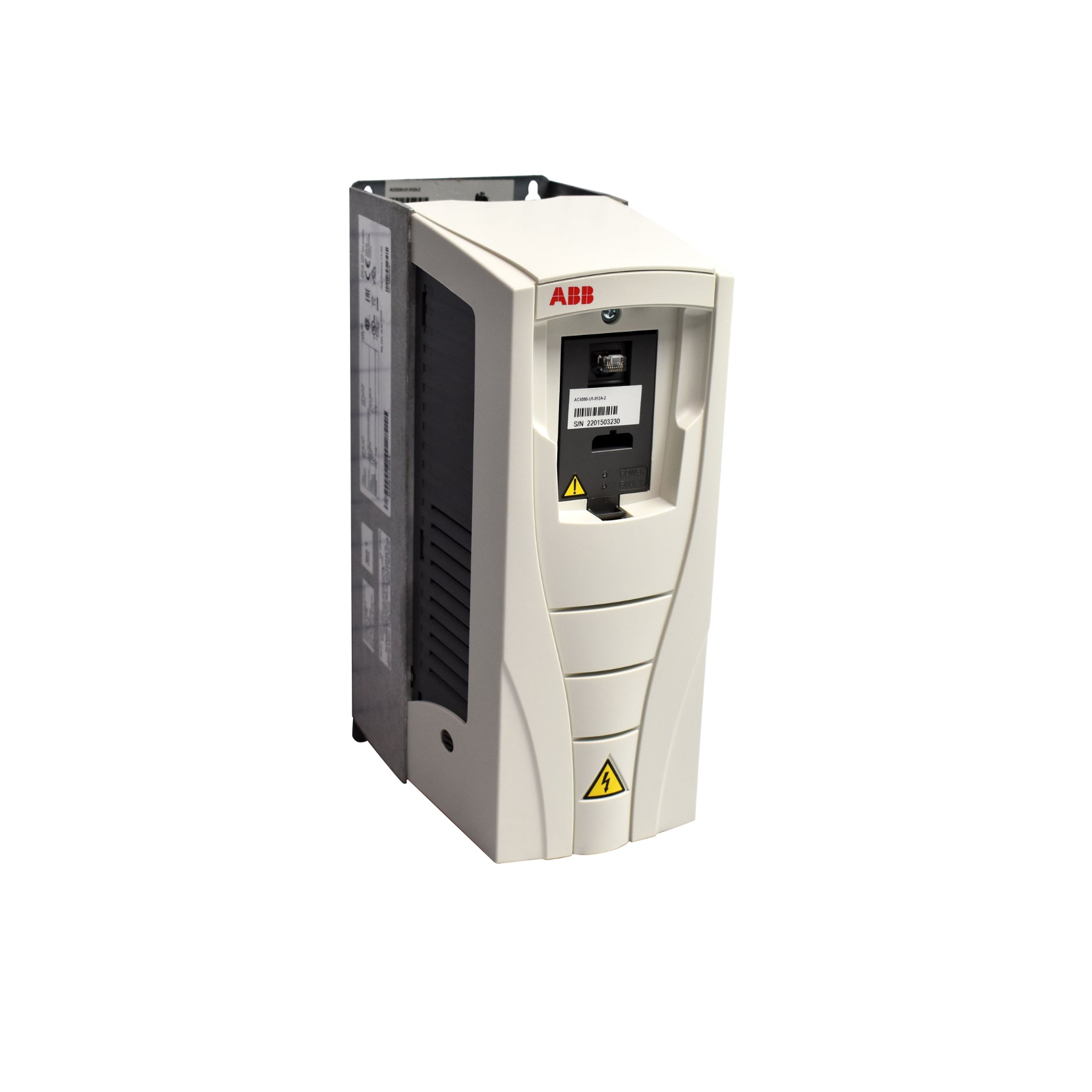

ABB ACS550-U1-097A-4 | 60 HP Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-U1-097A-4
Product ID: 3AUA0000011039
ABB Type Designation: ACS550-U1-097A-4
Catalog Description: General purpose AC drive, 60 HP, 97 A, 3-phase, 380–480 V, IP21, wall-mounted

Overview

The ABB ACS550-U1-097A-4 is a high-performance 60 HP variable frequency drive tailored for versatile motor control in industrial and commercial systems. It supports 3-phase input voltages from 380 to 480 V and provides a robust 97 A output current in a space-efficient IP21 wall-mountable enclosure.

Key Features

• Motor Power: 45 kW (60 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 97 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with navigation assistant

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-U1-097A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 600 mm x 203 mm x 229 mm

• Weight: Approx. 18.5 kg

• Certifications: CE, UL, cUL

Applications

• HVAC systems

• Water and wastewater treatment

• Conveyor belts

• Industrial automation and processing systems

Product Description

The ACS550-U1-097A-4 offers easy configuration, integrated safety, and precise motor control for a wide range of applications. It combines intuitive features like a built-in keypad and EMC filtering with robust construction, ensuring long-lasting performance in demanding environments.

Why Choose ABB ACS550-U1-097A-4?

• Energy-efficient solution for 60 HP motors

• Simple setup with built-in tools

• Integrated EMC and STO safety features

• Designed for reliable operation in diverse industries

Order Now

Available for immediate delivery with full technical documentation and global support.

Return to the ABB ACS550 General Purpose Drives collection

Explore ABB Industrial Drives main category

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
