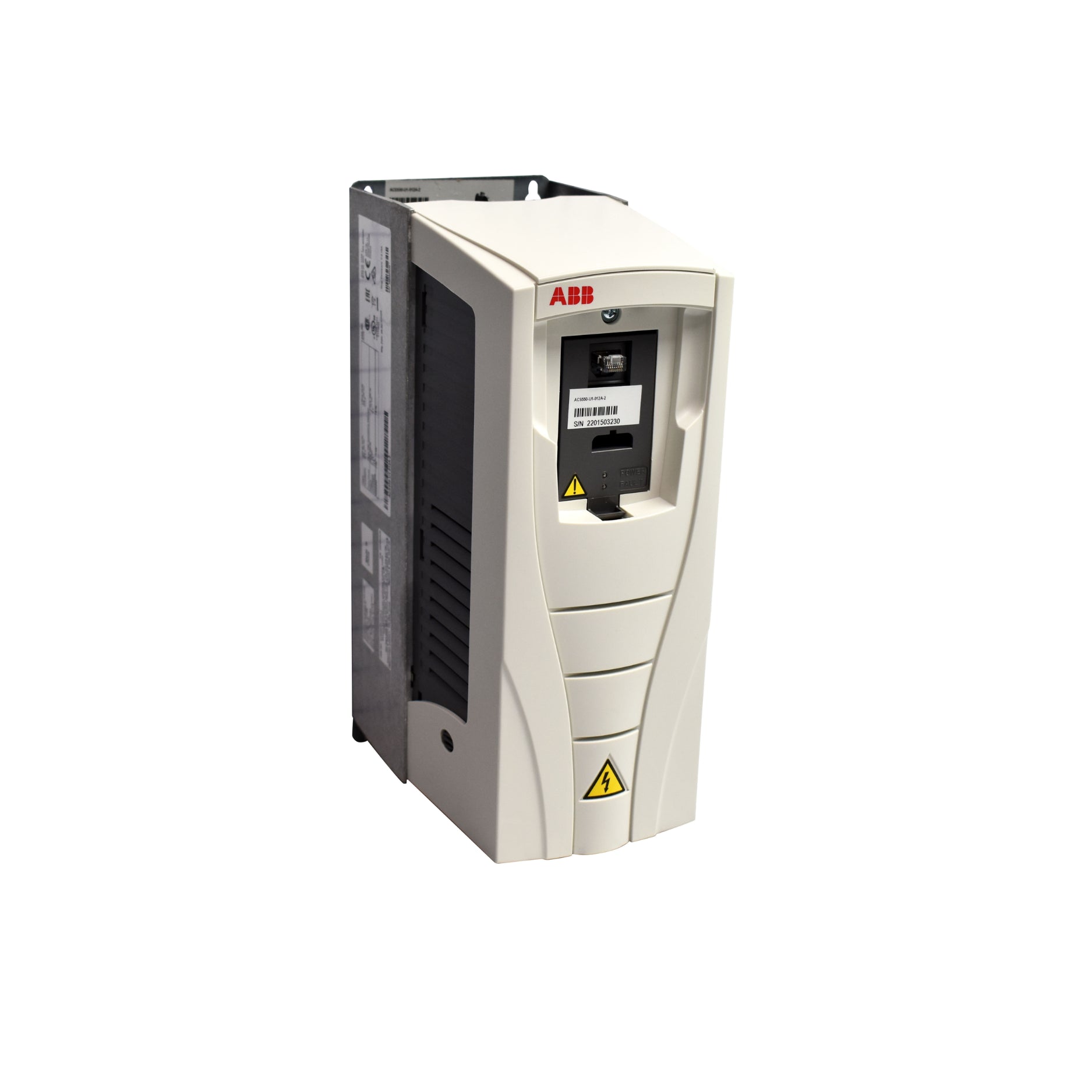

ABB ACS550-U1-078A-4 | 3AUA0000009443

ABB ACS550-U1-078A-4 | 50 HP Variable Frequency Drive, IP21

Global Commercial Alias: ACS550-U1-078A-4
Product ID: 3AUA0000009443
ABB Type Designation: ACS550-U1-078A-4
Catalog Description: General purpose AC drive, 50 HP, 78 A, 3-phase, 380–480 V, IP21, wall-mounted

Overview

The ABB ACS550-U1-078A-4 is a robust 50 HP variable frequency drive built for industrial and commercial motor control needs. With a 3-phase input voltage of 380–480 V and 78 A output current, it offers reliable and energy-efficient performance in a compact IP21 wall-mountable enclosure.

Key Features

• Motor Power: 37 kW (50 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 78 A

• Output Frequency: 0 to 500 Hz

• Control Methods: Scalar (V/f), Sensorless Vector

• Overload Capacity:

  • Heavy Duty: 150% for 60 sec

  • Normal Duty: 110% for 60 sec

• Built-in EMC Filter: Category C2

• Safety Function: Safe Torque Off (STO)

• Communication: Modbus RTU (RS-485)

• User Interface: Integrated keypad with navigation assistant

• Enclosure Type: IP21 wall-mounted

• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS550-U1-078A-4

• Input Frequency: 50/60 Hz

• Analog Inputs: 2

• Digital Inputs: 6

• Analog Outputs: 2

• Relay Outputs: 3

• Operating Temperature: -10°C to +50°C

• Dimensions (H x W x D): 600 mm x 203 mm x 229 mm

• Weight: Approx. 17.3 kg

• Certifications: CE, UL, cUL

Applications

• Industrial ventilation and HVAC

• Pumping systems

• Conveyor systems

• General-purpose automation and processing

Product Description

The ACS550-U1-078A-4 is engineered for energy efficiency and simplicity. With advanced safety functions, EMC filtering, and assistant-guided configuration, it meets the high demands of modern automation environments. Its compact design makes it ideal for space-limited installations.

Why Choose ABB ACS550-U1-078A-4?

• Powerful and compact solution for 50 HP motors

• Fast installation and configuration

• Integrated EMC and STO safety

• Ideal for various industrial applications

Order Now

Available for global delivery with technical support and documentation.
