ABB ACS550-01-087A-4 | 3AUA0000013108-D

ABB ACS550-01-087A-4 | 45 kW Variable Frequency Drive – 87 A, 380V AC, IP54 Enclosure

Overview

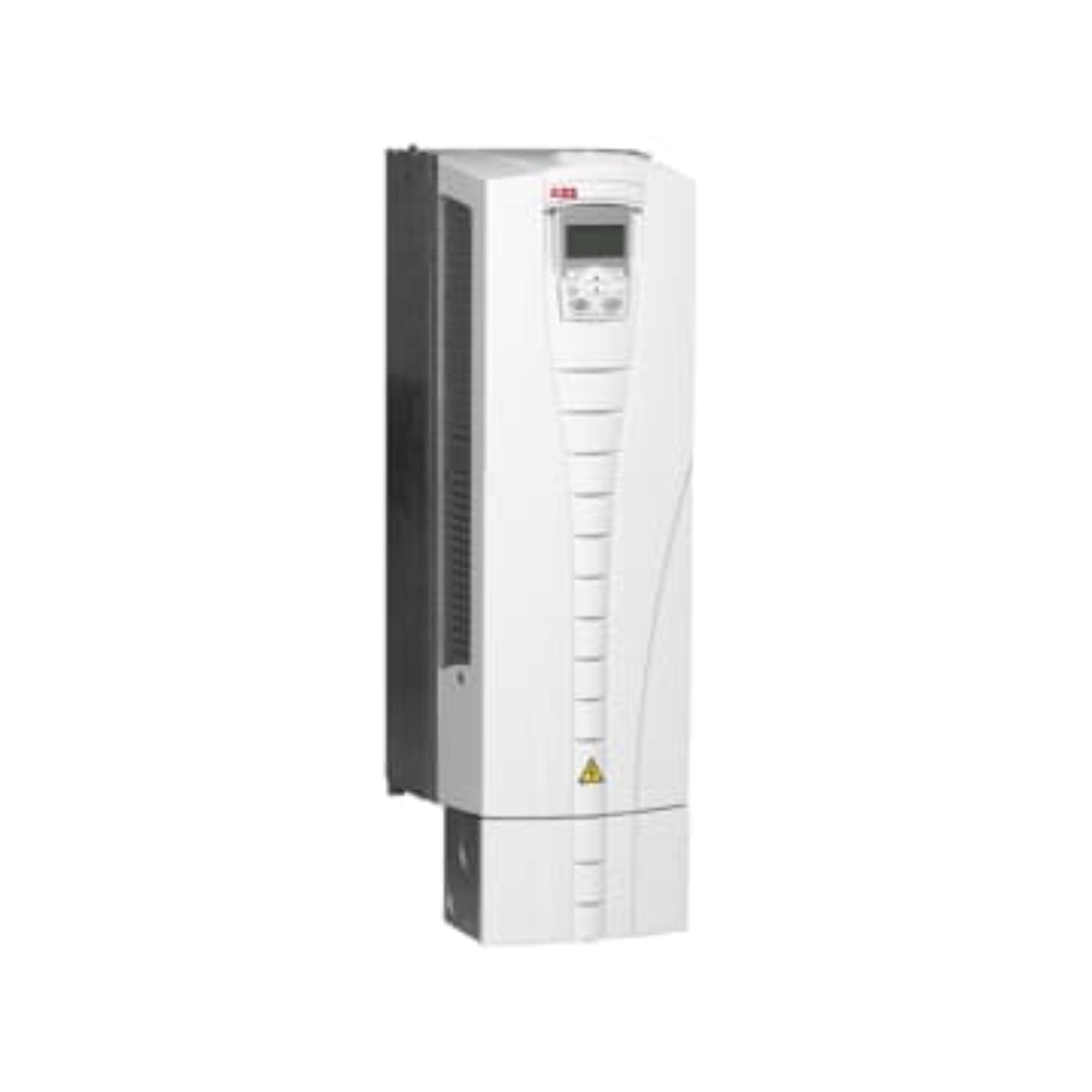

The ABB ACS550-01-087A-4 is a 45 kW (60 hp) wall-mounted VFD rated at 87 A for 380V AC three-phase power supply. Featuring a rugged IP54 enclosure, this drive is designed for harsh industrial environments, delivering reliable motor control in applications such as pumps, fans, conveyors, and compressors.

Key Features

• Power Rating: 45 kW (60 hp)

• Rated Output Current: 87 A

• Voltage Rating: 380V AC, 3-phase

• Enclosure Type: IP54 (dust and water protected)

• Mounting: Wall-mount

• Control Modes: Scalar (V/Hz), sensorless vector control

• User Interface: Built-in keypad with menu-driven setup

• EMC Filter: Integrated

• Harmonic Reduction: Built-in swinging choke

• Braking Chopper: Integrated

• Standard Protocol: Modbus RTU via RS-485

Technical Specifications

• Model Number: ACS550-01-087A-4

• Global Commercial Alias: ACS550-01-087A-4

• Product ID: 3AUA0000013108-D

• Input Voltage: 380–480V AC ±10%

• Output Frequency Range: 0–500 Hz

• Cooling Method: Air-cooled, with integrated fan

• Operating Temperature: -10°C to +40°C (no derating)

• Control Panel: Detachable keypad included

• Fieldbus Options: PROFIBUS, CANopen, DeviceNet (via optional modules)

• Dimensions (H x W x D): Approx. 700 x 258 x 260 mm

• Weight: Approx. 32 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Water & Wastewater: Pump and blower control

• HVAC: Efficient ventilation and air handling

• Material Handling: Smooth conveyor speed regulation

• Processing Equipment: Fans, mixers, and extruders

• Industrial Facilities: General motor control applications

Why Choose ABB ACS550-01-087A-4?

• High Protection (IP54): Suitable for dusty and humid environments

• Integrated Features: Saves panel space and installation cost

• Simple Setup: Preconfigured macros and guided menu

• Energy Saving: Built-in PID and precise speed control reduce energy use

• Field-Proven Reliability: Trusted in global industrial installations

Order Now

In stock and ready for worldwide delivery.
