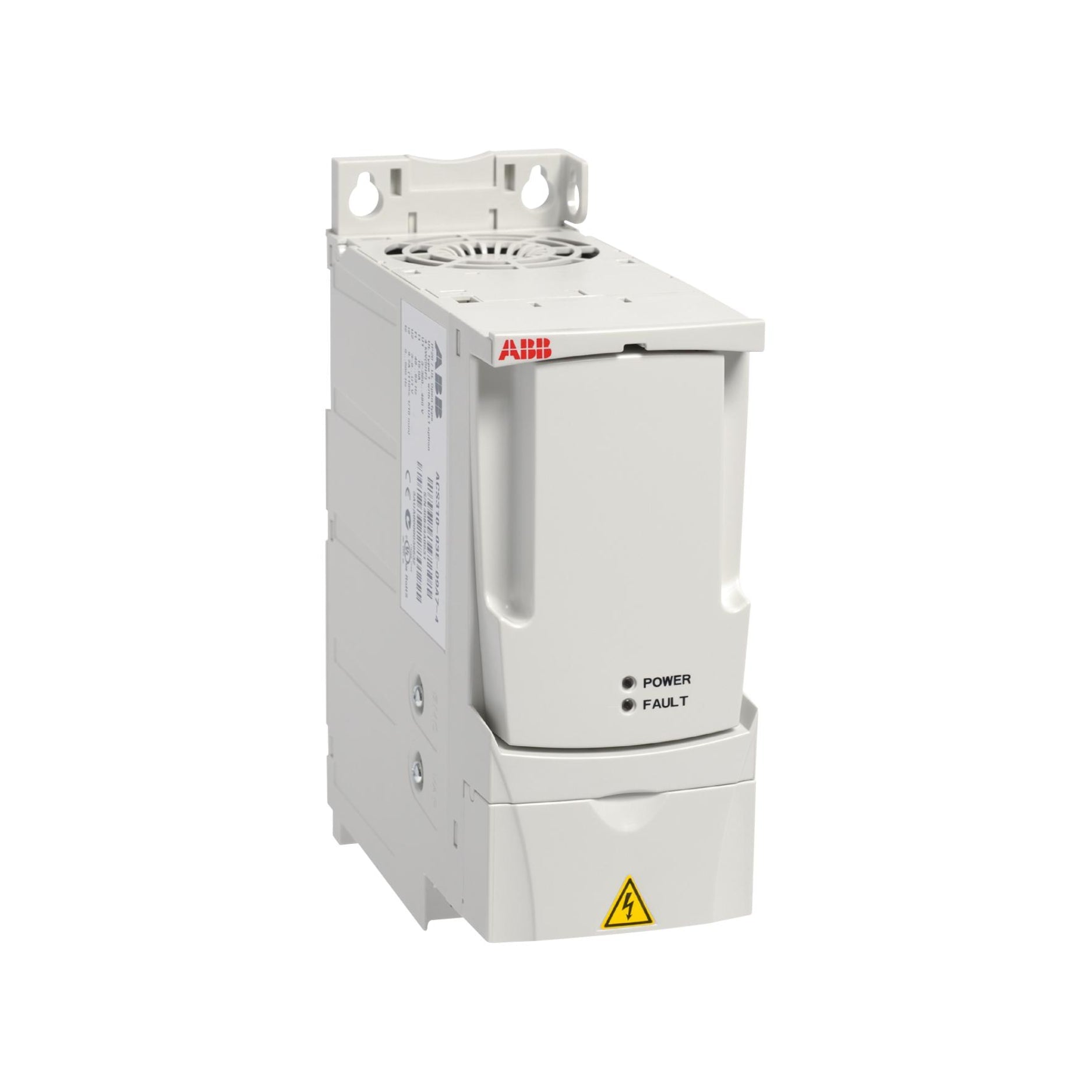

ABB ACS310-03E-25A4-4 | 3AUA0000039635

ABB ACS310-03E-25A4-4 | 11 kW VFD, 25.4 A, 400 V, IP20 for Pumps and Fans

Global Commercial Alias: ACS310-03E-25A4-4
Product ID: 3AUA0000039635
ABB Type Designation: ACS310-03E-25A4-4
Catalog Description: Variable Frequency Drive, 11 kW, 25.4 A, 400 V, IP20, optimized for HVAC, pump, and fan control in light-duty industrial applications

Overview

The ABB ACS310-03E-25A4-4 is a high-efficiency VFD designed to control pumps and fans in HVAC and light industrial systems. It delivers precise motor control, built-in energy-saving functions, and robust protection features in a compact footprint.

Key Features

• Motor Power: 11 kW (15 HP)

• Input Voltage: 380–480 V AC, 3-phase

• Output Current: 25.4 A

• Control Method: Scalar (V/f) control

• Dedicated Functions: Sleep/wake, pump cleaning, soft fill, PID control

• Overload Capacity: 110% for 60 seconds

• EMC Filter: Integrated C2 class

• Enclosure Protection: IP20

• Mounting Options: Wall-mountable or DIN rail

• Control Panel: Optional

Technical Specifications

• Frequency Range: 0–500 Hz

• Digital Inputs: 5

• Analog Inputs: 2

• Analog Outputs: 1

• Relay Outputs: 1

• Protection: Overvoltage, short-circuit, overload

• Operating Temp: -10°C to +50°C

• Dimensions (H x W x D): 219 mm x 120 mm x 160 mm

• Weight: 2.6 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• HVAC and ventilation systems

• Pump control in water management

• Booster systems

• Light industrial machinery

Product Description

The ABB ACS310-03E-25A4-4 offers intuitive control and enhanced energy efficiency for motor-driven systems in various industries. With specialized pump and fan functions, it helps optimize performance and reduce operational costs.

Why Choose ABB ACS310-03E-25A4-4?

• Optimized for HVAC and water applications

• Energy-saving features built-in

• Quick setup and integration

• Reliable ABB technology and support

Order Now

Available for worldwide shipping.
