At DDPARTSSOLUTION, we specialize in delivering advanced industrial automation components, and the Allen-Bradley SMC-3 Smart Motor Controller stands out as a reliable, space-saving, and energy-efficient solution for motor control. Also known as the ab smc 3 or soft starter smc 3, this controller is engineered to reduce mechanical stress, improve system protection, and optimize startup performance for motors ranging from 3 to 480 A.

Product Overview

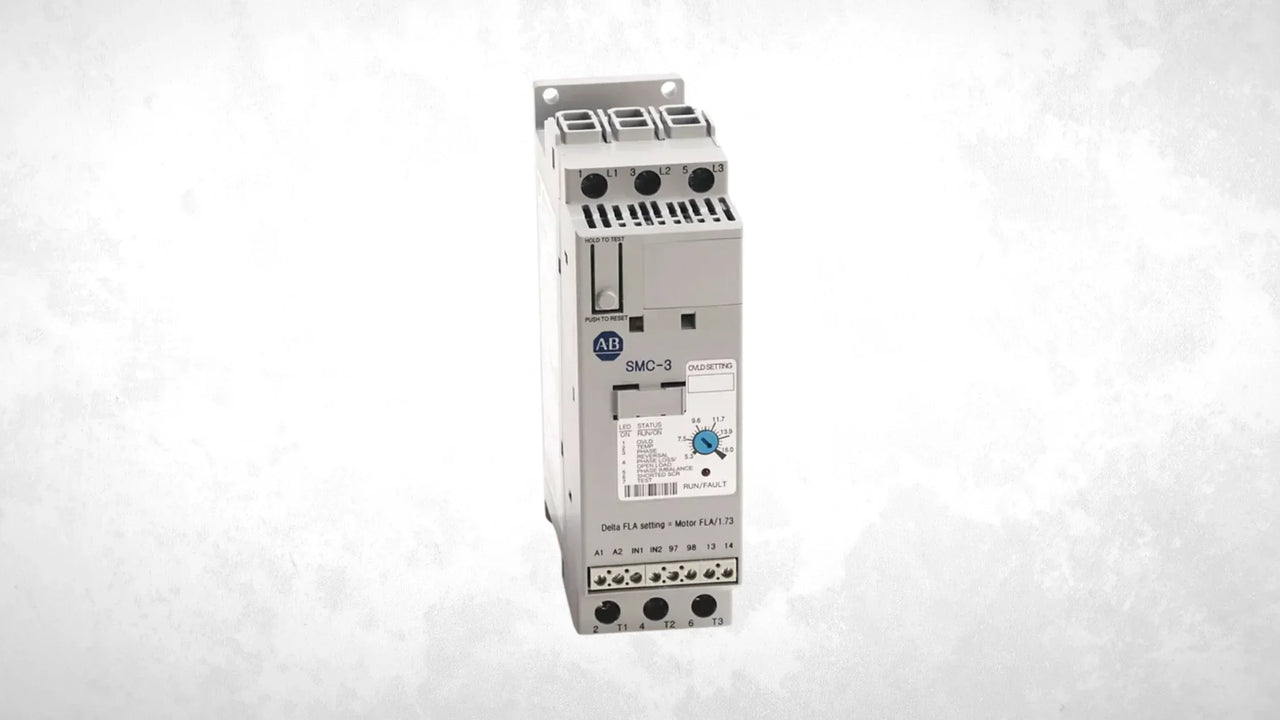

The SMC-3 Smart Motor Controller from Allen-Bradley is designed for three-phase induction motors and supports applications requiring current ranges between 3 and 480 A. It accommodates supply voltages from 200 to 690V AC, making it suitable for global installations across a wide range of industries.

Its solid-state design with true three-phase control ensures consistent torque and balanced starting, while the integral bypass contactor reduces internal heat dissipation and enhances overall efficiency.

Key Features and Benefits

1. Integrated Bypass with SCR Technology

The ab smc 3 includes a silicon-controlled rectifier (SCR) bypass contactor, which reduces the thermal footprint inside control panels, minimizes power loss during operation, and increases system lifespan.

2. Multiple Start and Stop Modes

Operators can choose from five control methods:

• Soft Start

• Current Limit Start

• Kickstart

• Soft Stop

• Coast-to-Stop
  This flexibility allows fine-tuning for various motor loads and applications.

3. Electronic Overload Protection

Built-in Class 10 and Class 20 overload settings protect motors against overheating, tripping in overcurrent conditions before damage occurs.

4. Compact Footprint

Its small form factor allows for installation in tight spaces, making the soft starter smc 3 ideal for MCC (Motor Control Center) layouts and decentralized control systems.

5. Diagnostics and Ease of Use

Includes motor status diagnostics and setup via DIP switches. Features a push-to-reset and hold-to-test button, reducing commissioning and maintenance time.

Applications

The soft starter smc 3 is ideal for motor-driven applications where mechanical stress must be minimized during startup or shutdown. Common industries and use cases include:

• HVAC: Chillers and compressors

• Water/Wastewater: Pumps and blowers

• Material Handling: Conveyors and lifts

• Aggregates: Crushers and feeders

• Food & Beverage: Process mixers

Standards and Certifications

The ab smc 3 meets a wide range of global certifications, ensuring compliance and safety in international applications:

• UL Listed (Open Type)

• CSA Certified

• CE Marked (Open Type)

• CCC Certified

• RoHS Compliant

• Suitable for IE3 High-Efficiency Motors in accordance with IEC 60034-30

Selection Tools

Rockwell Automation offers digital tools that assist with selecting and sizing the SMC-3:

• SMC Estimation Wizard – Analyze product and system requirements for optimal configuration

• SMC Thermal Wizard – Perform thermal load analysis to ensure appropriate sizing

These resources streamline system integration and ensure thermal protection based on specific application demands.

Why Choose the SMC-3 from Allen-Bradley?

Choosing the Allen-Bradley SMC-3 Smart Motor Controller means investing in a proven soft starter technology trusted by OEMs and industrial plants around the world. With robust motor protection, scalable configuration, and easy integration, the soft starter smc 3 simplifies operations while extending motor life.

Buy here ab smc 3

Order with DDPARTSSOLUTION

At DDPARTSSOLUTION, we supply the ab smc 3 in both new and verified surplus conditions. Our team offers fast, secure shipping worldwide and expert support to ensure you receive the right product for your application. Whether you are upgrading legacy systems or designing new industrial control panels, we have the parts you need—ready to ship.

Contact us today to request a quote or inquire about available stock.
