In industrial automation, I/O (Input/Output) modules are essential for PLCs to communicate with external devices. A single module failure can disrupt an entire production line.

In this guide, you'll learn how to accurately diagnose and safely replace faulty I/O modules in systems using PLCs from brands like Allen-Bradley, Siemens, and Omron.

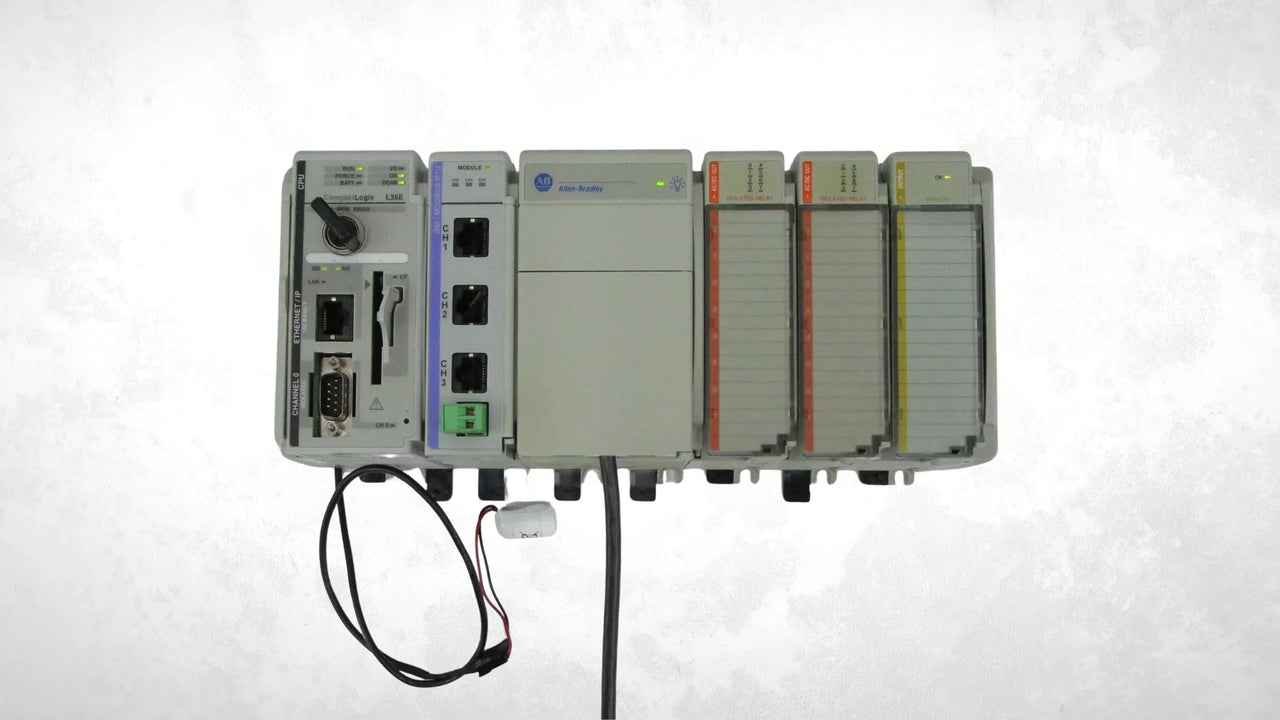

🔍 What Are PLC I/O Modules?

PLC I/O modules connect programmable logic controllers to field devices such as sensors, motors, actuators, and switches. They come in two main types:

• Input modules: Receive signals from external devices.

• Output modules: Send control commands to field equipment.

⚠️ Signs of a Faulty I/O Module

Watch for these common symptoms:

• Devices not responding despite correct power supply

• Fault or error LEDs lit on the module or rack

• Error alerts in PLC software (e.g., RSLogix, TIA Portal, GX Developer)

• Intermittent operation of inputs or outputs

🧪 How to Diagnose I/O Issues

1. Check the module's LED indicators
   Most modules have status LEDs that signal errors or connection problems.

2. Use PLC programming software
   Tools like RSLogix 5000 (Allen-Bradley), TIA Portal (Siemens), or CX-Programmer (Omron) show real-time faults and diagnostics.

3. Test voltage and continuity
   Use a multimeter to check the power supply and continuity of input/output signals.

4. Perform a cross-swap test
   Replace the suspected module with a known working one to isolate the issue.

🛠️ How to Safely Replace a Faulty Module

1. Power down the PLC and control panel

2. Label and disconnect all cables carefully

3. Remove the module from the DIN rail or backplane

4. Insert the new module and reconnect cables

5. Power the system back on and validate in the software

✅ Pro Tip:

Keep spare modules in stock for critical models such as:

• Allen-Bradley 1769-IA16 / 1769-OB16

• Siemens SM1223 / SM1231

• Omron CP1W-40EDR / CP1W-20EDT
