Allen-Bradley CompactLogix Series: Scalable and Reliable Control for Modern Automation
Why You Can Trust This Content ?
Experience:
This content is written by professionals with over 10 years of hands-on experience in industrial automation projects using CompactLogix controllers across automotive, food & beverage, and manufacturing sectors.
Expertise:
All technical information and practical recommendations are based on official Rockwell Automation documentation and real-world system integration projects.
Authoritativeness:
Our team works directly with OEMs, system integrators, and factories across North and South America, ensuring constant exposure to the latest CompactLogix models and applications.
Trustworthiness:
Product details, use cases, and configuration guidance are thoroughly verified and field-tested, making this guide reliable for engineers and decision-makers alike.
What Is the Allen-Bradley CompactLogix Series?

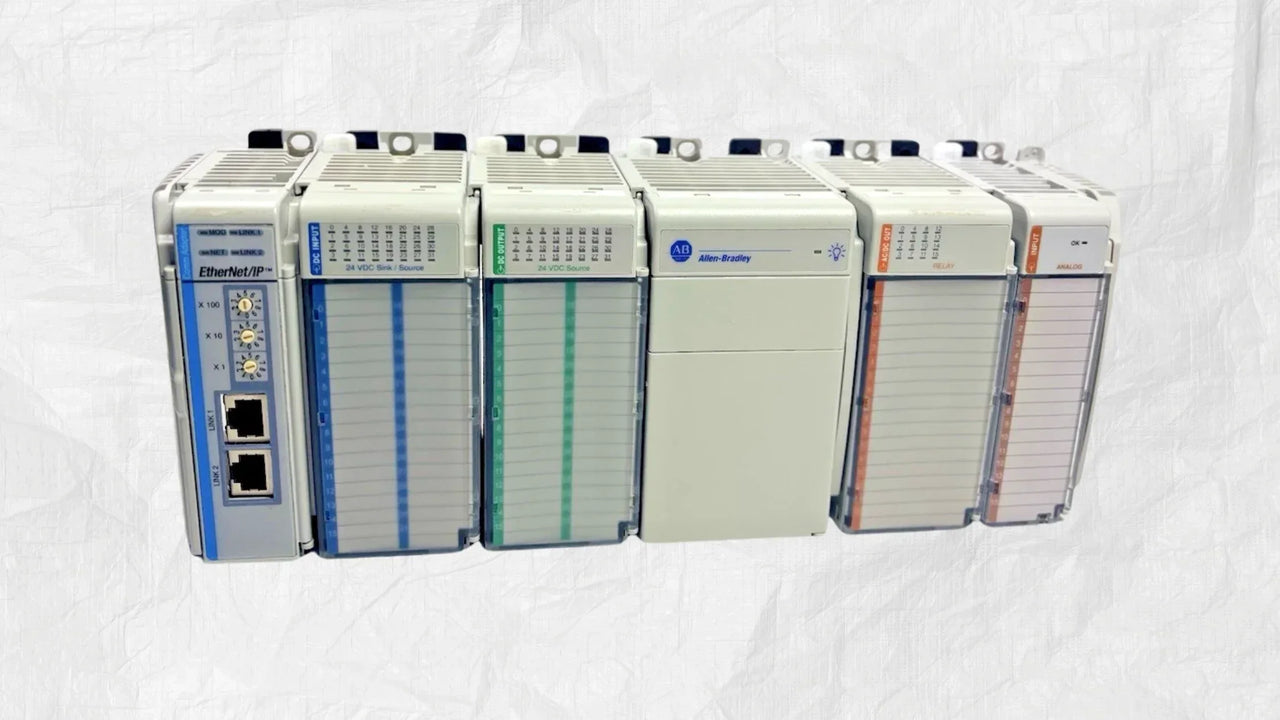

The Allen-Bradley CompactLogix Series is a family of programmable automation controllers (PACs) developed by Rockwell Automation. It offers scalable control solutions for small to mid-sized applications, combining high-speed processing, integrated safety, motion, and seamless connectivity through EtherNet/IP.
CompactLogix fills the gap between MicroLogix and ControlLogix systems, offering an ideal balance of performance, flexibility, and footprint.
Main Categories in the CompactLogix Family
1. CompactLogix CPUs
CompactLogix CPUs are the core processors responsible for logic execution, communication, and coordination with local or distributed I/O modules. These CPUs support a wide range of memory sizes, real-time processing, and Ethernet/IP communication.
Key Features:
-
Memory sizes from 1MB to 4MB
-
Integrated dual Ethernet ports (on most models)
-
Supports motion and distributed I/O
-
Ideal for standalone machines and small systems
Popular Models:
Link: Allen-Bradley CompactLogix CPUs
2. CompactLogix Controllers
These controllers combine the CPU with a modular architecture that allows for flexible I/O expansion and network integration. CompactLogix controllers are fully compatible with Rockwell Automation’s Integrated Architecture and programmed via Studio 5000 Logix Designer.
Key Features:
-
Modular I/O and communication support
-
Supports up to 30 I/O modules (depending on chassis)
-
Seamless integration with HMI, drives, and motion
-
Designed for performance and ease of maintenance
Link: Allen-Bradley CompactLogix Controllers
3. CompactLogix Safety Controllers
These controllers are built for applications requiring functional safety. They include dual memory partitions—one for standard logic and one for safety—making them ideal for systems requiring SIL2/PLd or SIL3/PLe certification.
Key Features:
-
Integrated safety and standard control
-
Certified for use in safety-rated environments
-
Supports CIP Safety and motion applications
-
Reduces the need for separate safety controllers
Popular Models:
Link: Allen-Bradley Safety CompactLogix Controllers
Advantages of the CompactLogix Series
-
Scalable architecture for growing applications
-
Compact design saves panel space
-
Integrated motion and safety in one controller
-
Fast scan times and high memory capacity
-
Seamless integration with Studio 5000
-
Broad support from Rockwell and authorized partners
Real-World Applications
Automotive:
Robotic arms, press control, vision systems
Food & Beverage:
Packaging lines, batch control, tracking
Pharmaceutical:
Compliance, traceability, secure recipe execution
Water & Wastewater:
Pump and valve automation, telemetry
Material Handling:
Conveyors, sorters, AGVs, palletizing systems
Frequently Asked Questions (FAQ)
What software is required to program CompactLogix controllers?
All CompactLogix models are programmed using Studio 5000 Logix Designer from Rockwell Automation.
Can I use both standard and safety logic in a CompactLogix Safety Controller?
Yes. Safety controllers are designed with two memory partitions to separate safety logic from standard logic.
Is the CompactLogix platform compatible with ControlLogix components?
CompactLogix supports many of the same features, protocols, and tools as ControlLogix but is optimized for smaller-scale systems.
How scalable is the CompactLogix platform?
You can start with just a CPU and expand up to 30 I/O modules, use multiple communication protocols, and scale across multiple machines or lines.
Why Choose CompactLogix?
CompactLogix provides a future-ready platform for industrial automation. It is compact, cost-effective, and offers the same high-performance capabilities found in larger systems—making it the ideal solution for manufacturers who need robust control without overengineering.
Combined with global support and compatibility with Rockwell’s Integrated Architecture, CompactLogix is a proven, reliable choice for both new installations and upgrades.
