Allen-Bradley PowerFlex 523: Compact and Cost-Effective Motor Control
DANIEL GOMES | |

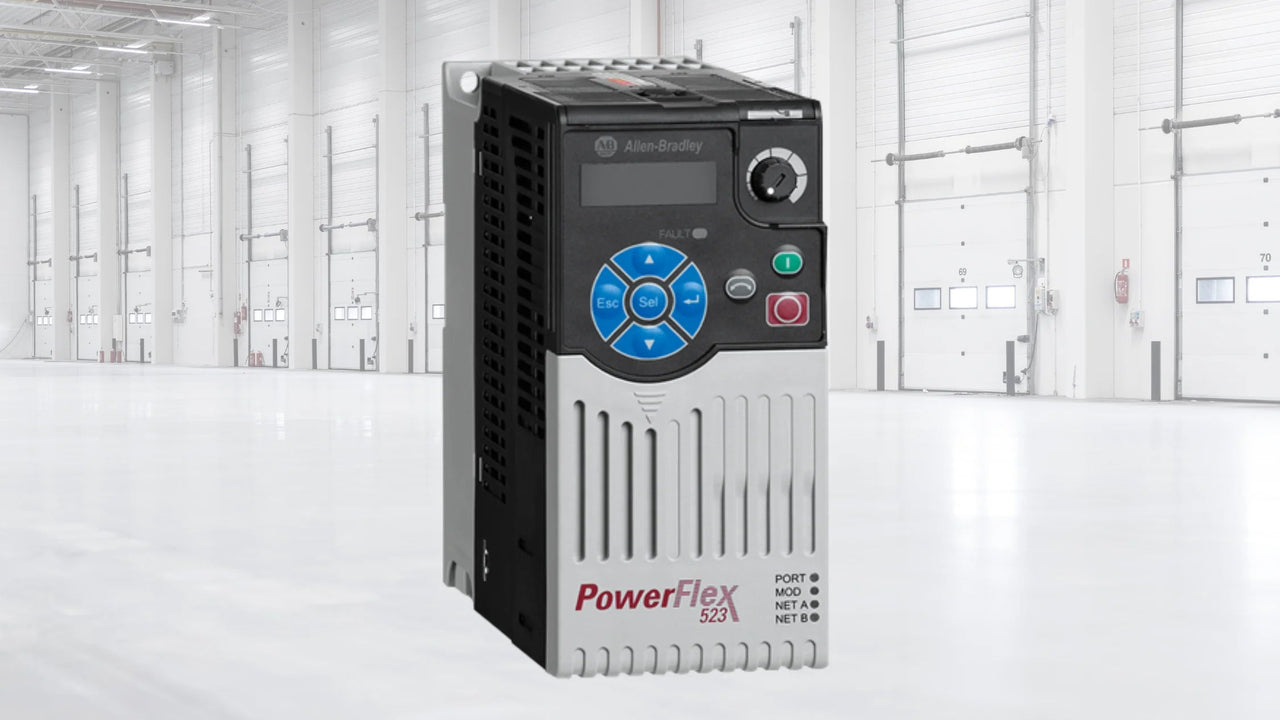

What Is the Allen-Bradley PowerFlex 523?
The PowerFlex 523 is an AC variable frequency drive (VFD) from the Allen-Bradley PowerFlex 520 series, developed by Rockwell Automation. Designed for simple motor control applications, the PowerFlex 523 delivers reliable performance, flexible configuration, and easy integration—all in a compact and affordable package.
Ideal for standalone machines or basic automation systems, the PowerFlex 523 helps manufacturers reduce energy consumption and improve machine efficiency with minimal setup and engineering time.
Key Features of the PowerFlex 523
-
✅ Power range: 0.25 to 15 HP (0.2 to 11 kW)
-
✅ Voltage options: 100–600V AC, single or three-phase
-
✅ Sensorless vector control (SVC) and volts/hertz (V/Hz) motor control
-
✅ Built-in USB port for quick programming
-
✅ Compact footprint with side-by-side mounting
-
✅ Support for DSI, Modbus RTU, and EtherNet/IP via optional modules
-
✅ Removable control module for fast commissioning and replacement
These features make the 523 VFD a strong choice for OEMs and machine builders needing dependable, entry-level motor control.
Advantages of PowerFlex 523 in Automation Systems
💡 Ease of Use
With built-in programming tools, intuitive LCD interface, and support for Connected Components Workbench (CCW) software, setup is fast and user-friendly.
🔧 Flexible Installation
Compact size and multiple mounting options make it easy to integrate into tight control panels.
🌍 Energy Efficiency
Built-in energy-saving features like sleep mode and variable torque control reduce power consumption and operating costs.
🌐 Seamless Communication
Add-on communication modules allow integration with EtherNet/IP, DeviceNet, and other common industrial protocols—making it easy to fit into existing systems.
Common Applications
The Allen-Bradley PowerFlex 523 is ideal for:
-
Conveyors
-
Pumps and fans
-
Mixers and agitators
-
Packaging machinery
-
Textile and printing machines
-
HVAC equipment
It is especially effective in simple, standalone machines that don’t require advanced I/O or motion capabilities.
PowerFlex 523 vs 525
| Feature | PowerFlex 523 | PowerFlex 525 |
|---|---|---|
| Application Level | Basic motor control | Advanced control with enhanced features |
| Built-in I/O | Basic | Extended analog/digital I/O |
| Communication | Modbus RTU, optional Ethernet | Built-in EtherNet/IP |
| Safety Functions | Not included | Integrated Safe Torque-Off (STO) |
| Programming | CCW via USB | CCW and Studio 5000 |
The PowerFlex 523 is ideal for users needing basic motor control with low cost, while the PowerFlex 525 offers more advanced options.
Where to Buy PowerFlex 523 Drives
Looking to buy the Allen-Bradley PowerFlex 523 VFD? At DDPARTS SOLUTION, we stock new and used PowerFlex drives, including the 523 series. Whether you’re replacing an existing drive or equipping a new machine, we offer fast global shipping, expert support, and competitive pricing.
Final Thoughts
The PowerFlex 523 is a compact, cost-effective solution for motor control in small machines and simple automation tasks. With flexible installation, efficient performance, and easy integration, it's the ideal choice for OEMs, panel builders, and manufacturers looking to streamline operations and save energy.
