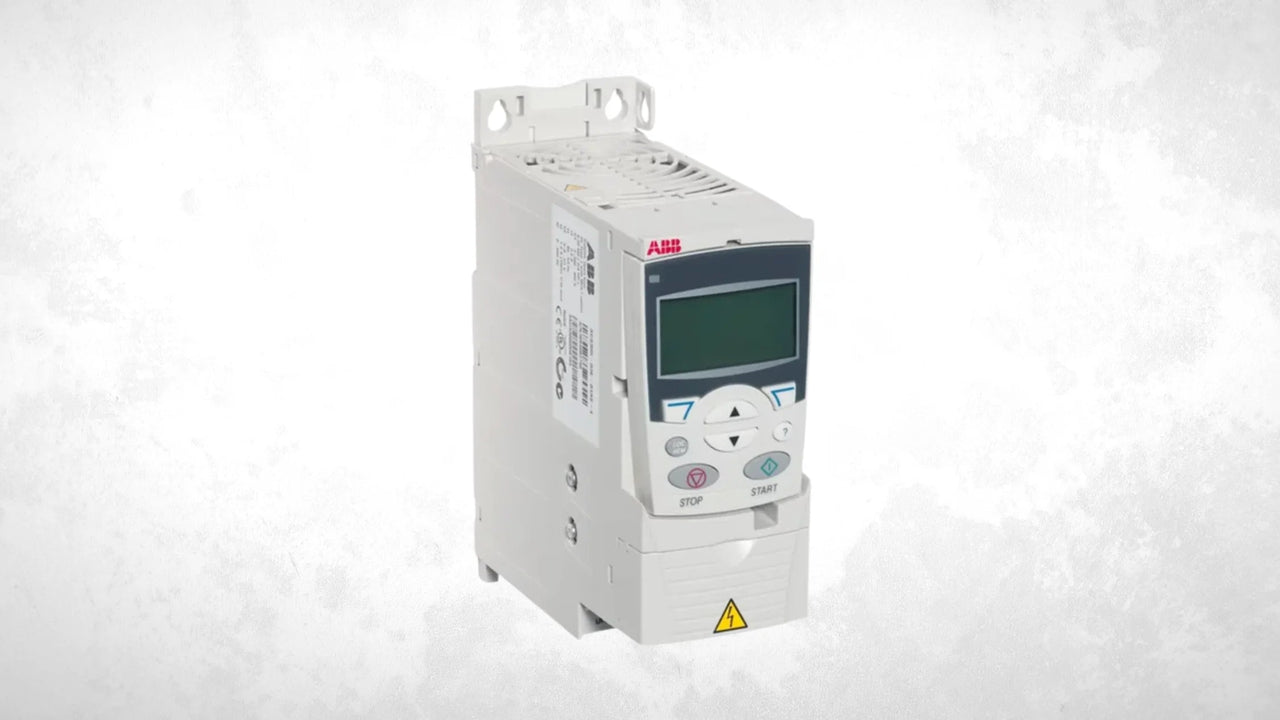

ABB ACS355 VFD | Compact Drive for Simple to Complex Motor Control
DANIEL GOMES | |
What is the ABB ACS355?
The ABB ACS355 is part of ABB’s General Machinery Drives series, tailored for applications that require precise speed control and easy integration. It supports both asynchronous and permanent magnet motors, making it ideal for a broad range of industrial environments.
Key Features of the ABB ACS355 Drive
-
✅ Power Range: 0.37 kW to 22 kW (0.5 to 30 HP)
-
✅ Input Voltage: 200-240V (1-phase/3-phase) or 380-480V (3-phase)
-
✅ Control Types: Scalar (V/Hz), Sensorless Vector, and Permanent Magnet
-
✅ STO (Safe Torque Off): SIL 3 certified integrated safety function
-
✅ Compact Design: DIN rail or wall mounting, side-by-side installation
-
✅ Built-in EMC filters and brake chopper (on selected models)
-
✅ Fieldbus Options: Modbus, CANopen, PROFIBUS, EtherNet/IP, DeviceNet
-
✅ User-friendly Interface: Assistants for setup, parameter setting, and diagnostics
Typical Applications
-
Conveyors
-
Pumps and fans
-
Packaging machinery
-
Textile machines
-
Food and beverage systems
-
OEM machine panels
The ACS355 excels in dynamic applications where fast braking, precise control, and compact size are required.
Benefits for OEMs and System Integrators
-
🔧 Fast Installation: Mounts easily in panels with DIN rail or screw
-
💡 Energy Efficient: Adjustable speed reduces energy consumption
-
🔐 Integrated Safety: Eliminates need for external safety relays with STO
-
🔄 Flexible Communication: Supports various industrial network protocols
-
⚙️ Maintenance-Friendly: Diagnostic tools and removable memory unit (RMIO)
Technical Specifications Snapshot
| Feature | Specification |
|---|---|
| Voltage Input | 200–240V / 380–480V AC |
| Motor Types Supported | Induction & Permanent Magnet |
| Control Modes | V/Hz, Sensorless Vector, Torque Control |
| Protection Class | IP20 (standard), IP66 (optional enclosures) |
| Operating Temp. Range | -10°C to +50°C without derating |
| Safety Feature | STO (Safe Torque Off) – SIL3 / PL e certified |
Frequently Asked Questions (FAQs)
Q1: What motors can I run with the ABB ACS355?
A: It supports standard induction motors and permanent magnet motors, ideal for both open-loop and advanced control setups.
Q2: Does the ACS355 include safety features?
A: Yes, it features built-in STO (Safe Torque Off), certified to SIL 3 / PL e, eliminating the need for external safety components.
Q3: Can I use ACS355 in panel assemblies?
A: Absolutely. Its slim profile and flexible mounting options (DIN rail, wall) make it perfect for OEM control panels and tight spaces.
Q4: What are the communication options?
A: The drive supports Modbus, CANopen, PROFIBUS, EtherNet/IP, and more via optional fieldbus modules.
Q5: Is the ACS355 available from DDPARTSSOLUTION?
A: Yes. We offer the ABB ACS355 with fast shipping and global availability—contact us for stock and pricing.
