Weintek TK6070iP | 7" HMI Touchscreen | 800×480 TFT LCD | 24 V DC | RS-232/RS-485

Weintek TK6070iP | Reliable 7" HMI for Industrial Automation

Overview

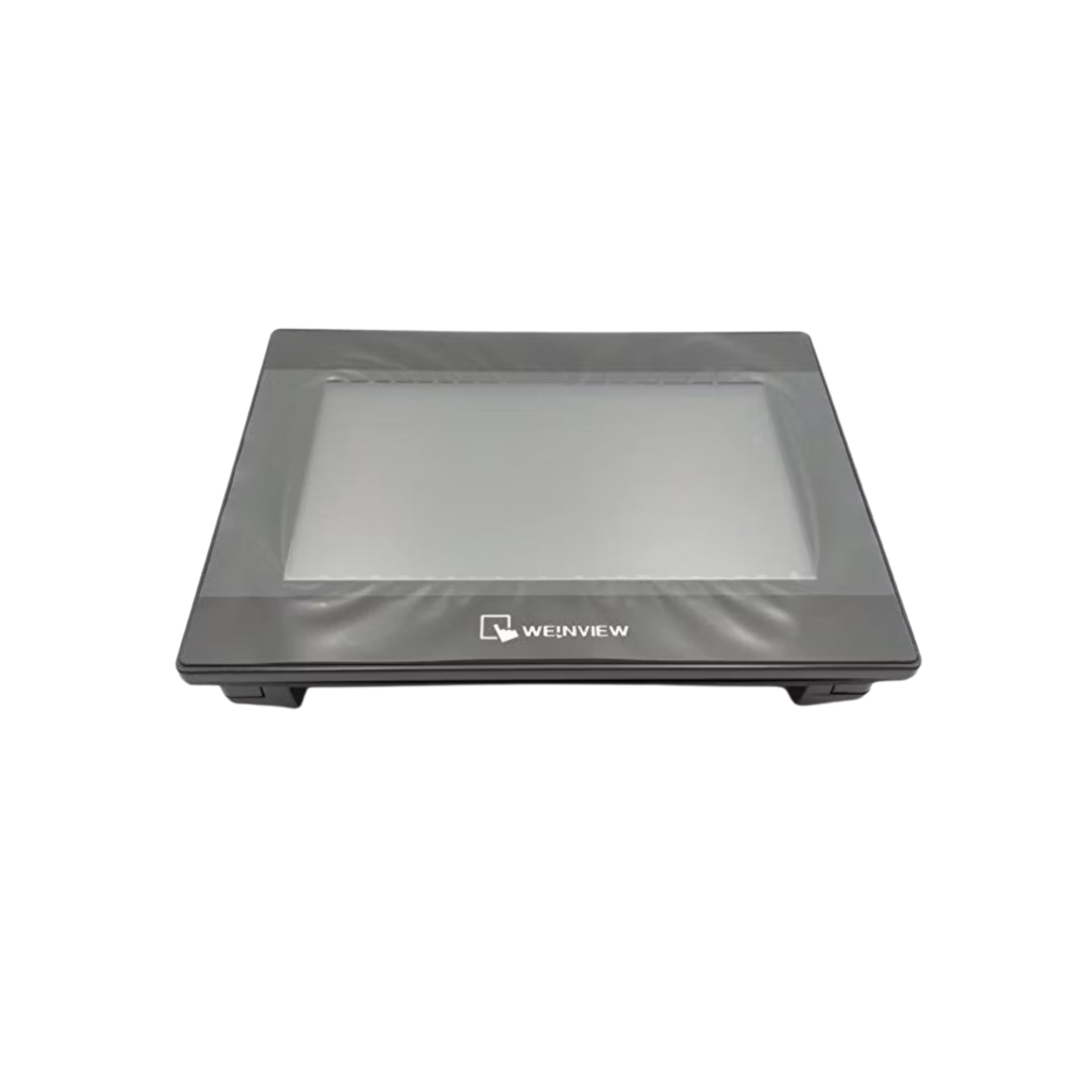

The Weintek TK6070iP is a robust 7-inch Human Machine Interface (HMI) designed for efficient machine control and monitoring in industrial environments. Featuring a TFT LCD with a resolution of 800×480 pixels and 65,536 colors, this HMI offers clear visuals and intuitive operation. Its durable design includes an IP65-rated front panel, making it suitable for harsh conditions.

Key Features

• Display: 7" TFT LCD, 800×480 resolution, 65,536 colors

• Touch Panel: 4-wire resistive

• Processor: 32-bit RISC CPU, 400 MHz

• Memory: 128 MB Flash, 64 MB DRAM

• Power Supply: 24 V DC ±20%

• Interfaces:

  • COM1: RS-232

  • COM2: RS-485 2W/4W

  • USB 2.0 (Mini USB for downloading)

• Built-in RTC: Yes

• Enclosure: Industrial plastic

• Dimensions (W×H×D): 200.4 × 146.5 × 34 mm

• Panel Cutout: 192 × 138 mm

• Weight: Approximately 0.52 kg

• Software: Compatible with EasyBuilder 8000 V4.65.06 or later

• Certifications: CE compliant

Applications

• Industrial Automation Systems

• Machine Control Panels

• Process Monitoring

• Packaging Machinery

• Material Handling Equipment

Why Choose Weintek TK6070iP?

• Compact Design: Saves space in control panels

• Durable Construction: IP65 front panel for harsh environments

• Flexible Communication: Multiple interfaces for seamless integration

• User-Friendly Software: EasyBuilder 8000 simplifies project development

• Reliable Performance: Ensures consistent operation in demanding applications

SEO Image Alt Text (125 Characters or Less):

Weintek TK6070iP HMI with 7" 800×480 TFT LCD, 24 V DC input, RS-232/RS-485 ports, USB, and EasyBuilder 8000 support for industrial automation.

Let me know if you need listings for other Weintek HMI models or compatible accessories!

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
