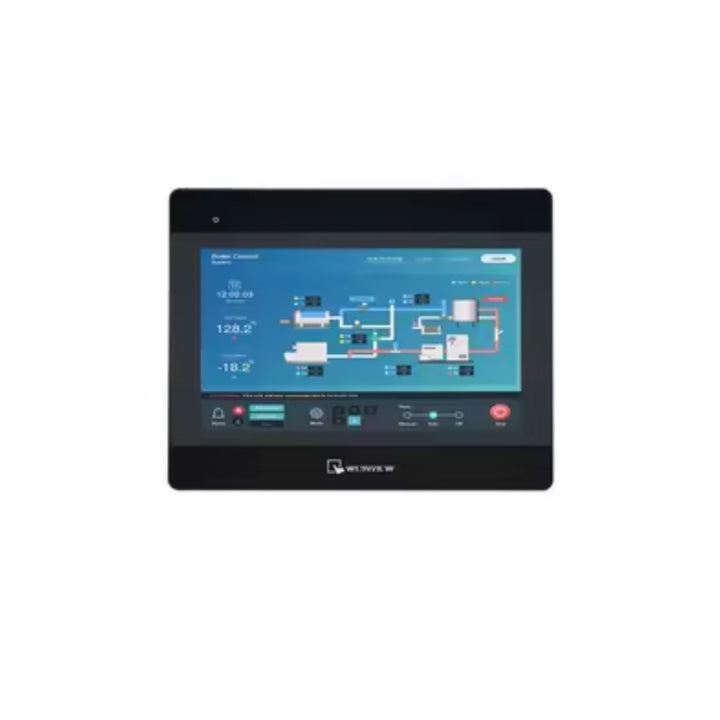

Weintek TK6070iH | Compact 7-Inch Touchscreen Interface for Industrial Use

Overview

The Weintek TK6070iH is a 7-inch Human Machine Interface built for industrial machine control and monitoring. With a wide-format display and a range of standard communication ports, it provides a practical and reliable interface for automated equipment.

Key Features

• Display Size: 7" widescreen

• Resolution: 800 × 480 pixels

• Color Depth: 65,536 colors

• Touchscreen: 4-wire resistive

• Processor: 32-bit RISC CPU, 400 MHz

• Memory: 128 MB Flash, 64 MB RAM

• Power Supply: 24 V DC ±20%

• Ports and Interfaces:

  • COM1: RS-232/RS-485 (2W/4W)

  • COM2: RS-232

  • COM3: RS-232/RS-485

  • USB Host (1.1)

  • USB Client (2.0)

• SD Card Slot: Not available

• Built-in RTC (Real-Time Clock)

• Enclosure: Plastic housing

• Front Panel Rating: IP65

• Mounting Style: Panel mount

• Dimensions (W × H × D): 200 × 146 × 41.8 mm

• Panel Cutout: 192 × 138 mm

• Weight: Approx. 0.8 kg

• Operating Temperature: 0 °C to 45 °C

• Storage Temperature: –20 °C to 60 °C

• Humidity Range: 10–90% RH (non-condensing)

Applications

• Machine control panels

• Industrial interface terminals

• Operator stations

• Packaging and sorting systems

• General equipment monitoring

Why Choose the Weintek TK6070iH?

• Wide-format display for compact control spaces

• Multiple communication ports for flexible integration

• Rugged front panel protection

• Built-in clock for time-based control features

• Cost-effective solution for standard HMI tasks
