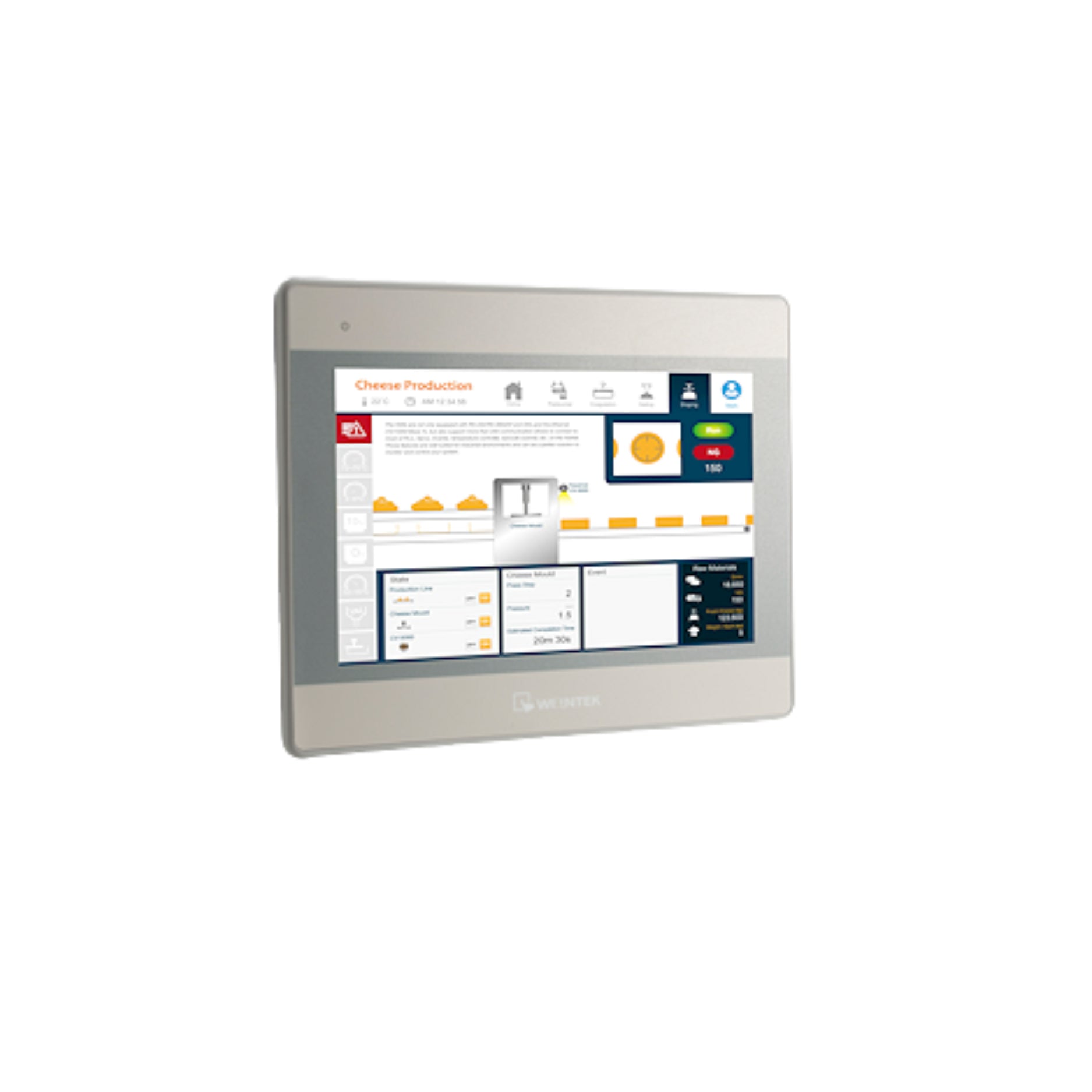

Weintek MT8100iE | Robust 10.1" HMI for Industrial Automation

Overview

The Weintek MT8100iE is a durable 10.1-inch Human Machine Interface (HMI) designed for efficient machine control and monitoring in industrial environments. Featuring a TFT LCD with a resolution of 800×480 pixels and 262K colors, this HMI offers clear visuals and intuitive operation. Its rugged design includes an IP65-rated front panel, making it suitable for harsh conditions.

Key Features

• Display: 10.1" TFT LCD, 800×480 resolution, 262K colors

• Touch Panel: 4-wire resistive

• Processor: 32-bit RISC Cortex-A8, 600 MHz

• Memory: 128 MB Flash, 128 MB RAM

• Power Supply: 24 V DC ±20%

• Interfaces:

  • COM1: RS-232/RS-485 2W/4W

  • COM3: RS-485 2W

  • USB Host: USB 2.0 x 1

  • Ethernet: 10/100 Base-T x 1

• Built-in RTC: Yes

• Enclosure: Plastic

• Dimensions (W×H×D): 271 × 213 × 40 mm

• Panel Cutout: 260 × 202 mm

• Weight: Approximately 1.3 kg

• Protection: NEMA4 / IP65 compliant front panel

• Operating Temperature: 0 °C to 50 °C

• Storage Temperature: -20 °C to 60 °C

• Relative Humidity: 10% to 90% RH (non-condensing)

• Certifications: CE compliant

• Software: Compatible with EasyBuilder Pro V3.00.01 or later versions

Applications

• Industrial Automation Systems

• Machine Control Panels

• Process Monitoring

• Packaging Machinery

• Material Handling Equipment

Why Choose Weintek MT8100iE?

• Robust Design: IP65 front panel for harsh environments

• Flexible Communication: Multiple interfaces for seamless integration

• User-Friendly Software: EasyBuilder Pro simplifies project development

• Reliable Performance: Ensures consistent operation in demanding applications

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
