Weintek MT8100i | 10" HMI Touchscreen | 800×480 TFT LCD | 24 V DC | RS-232/RS-485

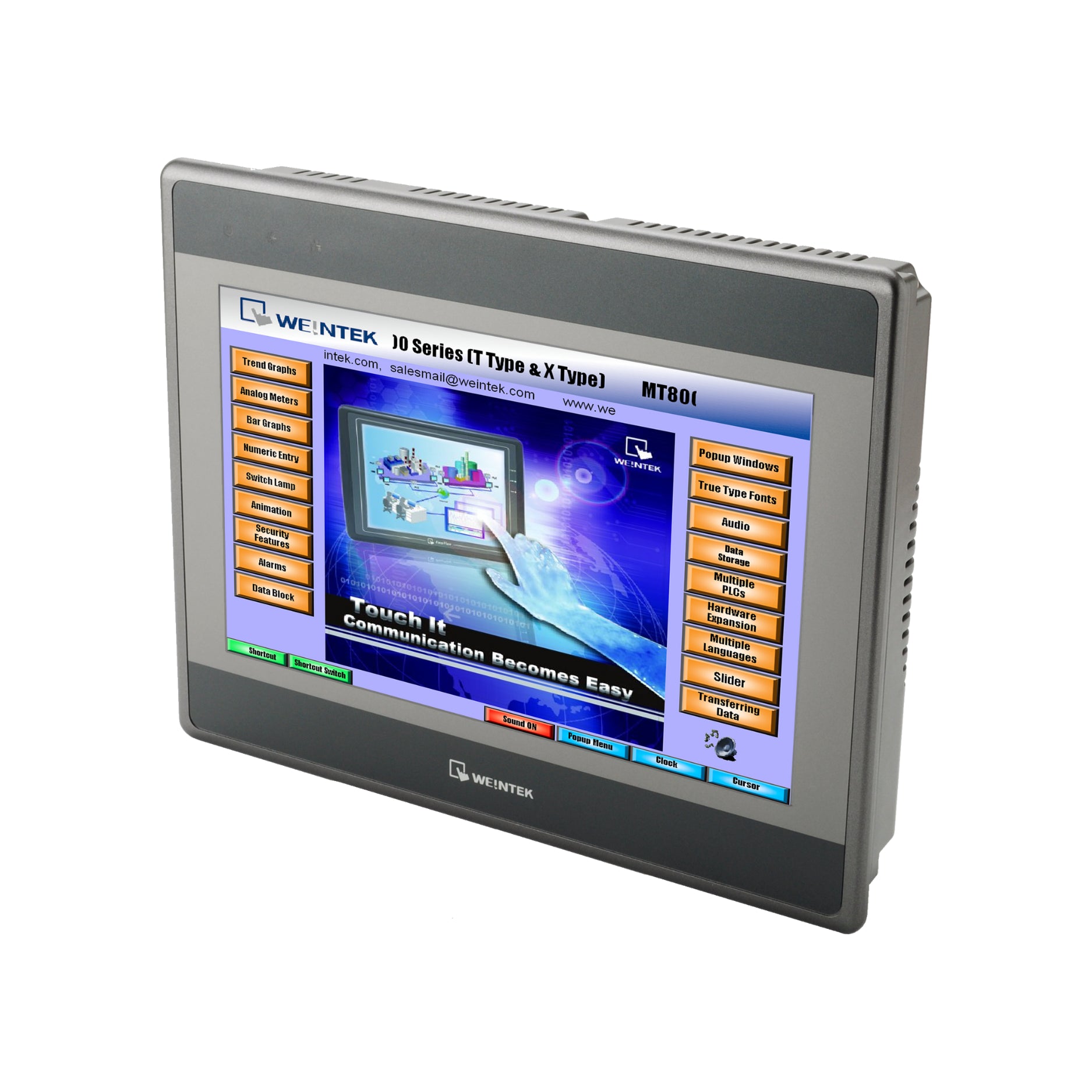

Weintek MT8100i | 10-Inch Operator Interface for Industrial Applications

Overview

The Weintek MT8100i is a 10-inch Human Machine Interface designed for monitoring and controlling machines in industrial settings. With a wide 800×480 resolution display, multiple communication ports, and built-in features like USB and SD card support, it provides dependable performance in control panels.

Key Features

• Display Size: 10" widescreen

• Resolution: 800 × 480 pixels

• Color Depth: 65,536 colors

• Touchscreen: 4-wire resistive

• Processor: 32-bit RISC CPU, 400 MHz

• Memory: 128 MB Flash, 64 MB RAM

• Power Supply: 24 V DC ±20%

• Ports and Interfaces:

  • COM1: RS-232/RS-485 (2W/4W)

  • COM2: RS-232

  • COM3: RS-232/RS-485

  • USB Host (1.1)

  • USB Client (2.0)

  • Ethernet (10/100 Base-T)

  • SD Card Slot

• Built-in RTC

• Front Panel Rating: IP65

• Material: Plastic enclosure

• Mounting Style: Panel mount

• Dimensions (W × H × D): 271 × 212 × 50 mm

• Panel Cutout: 259 × 201 mm

• Weight: Approx. 1.4 kg

• Operating Temperature: 0 °C to 50 °C

• Storage Temperature: –20 °C to 60 °C

• Humidity Range: 10–90% RH (non-condensing)

Applications

• Machine control interfaces

• Equipment diagnostics

• Industrial monitoring panels

• Automation system operation

• Factory floor HMI stations

Why Choose the Weintek MT8100i?

• Large, high-visibility display

• Multiple serial and USB connections

• Reliable panel mount design

• SD card access for data backup and storage

• Built-in real-time clock for event logging

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
