Siemens 6ED1055-1MD00-0BA2 | LOGO! AM2 RTD Expansion Module – 2

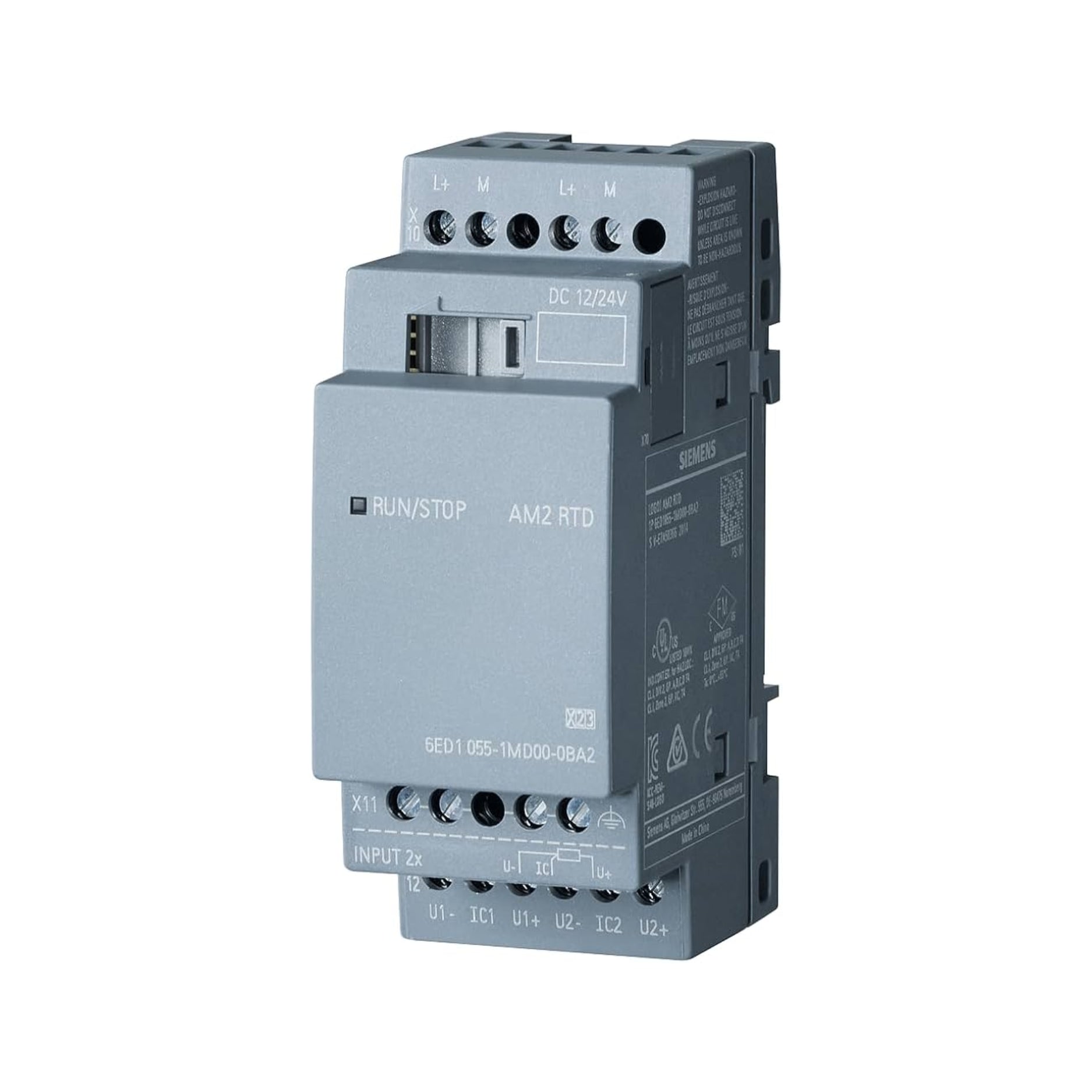

Siemens 6ED1055-1MD00-0BA2 | LOGO! AM2 RTD Expansion Module

Overview:

The Siemens 6ED1055-1MD00-0BA2 is an expansion module designed for the LOGO! 8 logic modules, offering 2 analog inputs specifically for Resistance Temperature Detectors (RTDs) such as Pt100 and Pt1000 sensors. This module enables precise temperature monitoring and control in various industrial applications. It operates with a 12/24V DC power supply, ensuring compatibility with standard industrial power systems.

Key Features:

• Analog Inputs: 2 inputs compatible with RTD sensors (Pt100/Pt1000)
• Temperature Measurement Range: -50°C to +200°C, suitable for a wide range of applications
• High Accuracy: Provides precise temperature readings for critical processes
• Compact Design: Occupies minimal space in control panels, with dimensions of 90 mm (H) x 35.5 mm (W) x 58 mm (D)
• Easy Integration: Seamlessly connects to LOGO! 8 base modules, expanding their analog input capabilities
• Operating Temperature Range: 0°C to 55°C, suitable for standard industrial environments

Technical Specifications:

• Product Type: LOGO! AM2 RTD Expansion Module
• Power Supply: 12/24V DC
• Analog Inputs: 2 for RTD sensors (Pt100/Pt1000)
• Temperature Measurement Range: -50°C to +200°C
• Accuracy: High precision for reliable temperature monitoring
• Dimensions (H x W x D): 90 mm x 35.5 mm x 58 mm
• Net Weight: Approximately 0.128 kg
• Mounting: 35 mm DIN rail
• Certifications: CE, UL, and other international standards

Applications:

• Temperature Monitoring: Ideal for applications requiring precise temperature measurement and control
• Industrial Automation: Enhances the functionality of LOGO! 8 modules in automated systems
• HVAC Systems: Suitable for monitoring and controlling heating, ventilation, and air conditioning systems
• Process Control: Applicable in various industrial processes where temperature regulation is critical

Order Now to expand your LOGO! 8 system with Siemens' reliable and precise RTD expansion module technology.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
