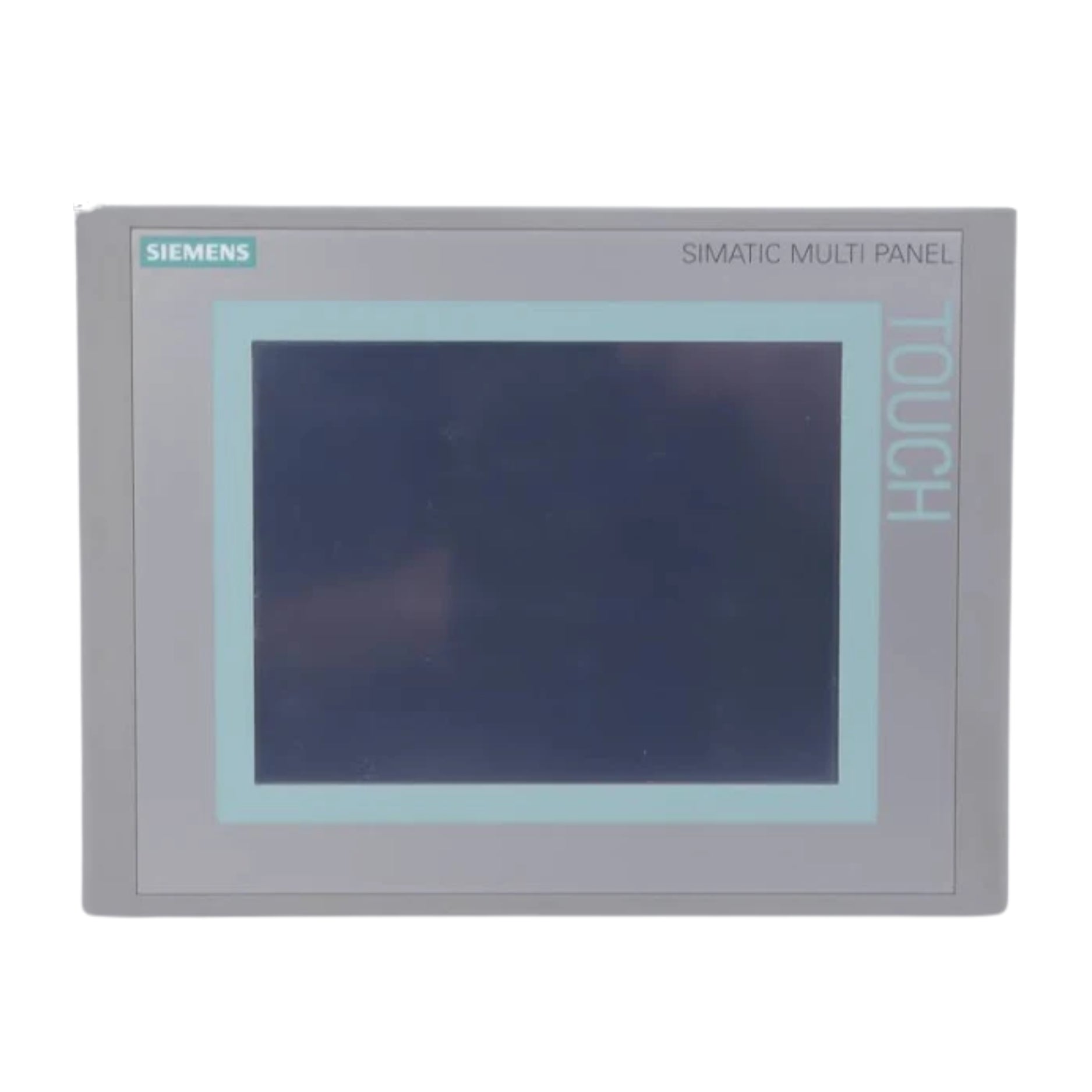

Siemens 6AV6643-0CB01-1AX1 | SIMATIC MP 277 8" Touch Multi Panel

Siemens 6AV6643-0CB01-1AX1 | SIMATIC MP 277 8" Touch Multi Panel

Overview:

The Siemens 6AV6643-0CB01-1AX1 is part of the SIMATIC MP 277 series, designed to provide advanced human-machine interface (HMI) capabilities in industrial automation settings. It features a 7.5-inch TFT display with touch functionality, offering intuitive user interaction. With a 6 MB user memory and retentive memory, it supports complex applications and data retention during power cycles. The panel is configurable using WinCC flexible 2005 Standard SP1.

Key Features:

• Display: 7.5-inch TFT with touch functionality
• User Memory: 6 MB
• Retentive Memory: Yes
• Configuration Software: WinCC flexible 2005 Standard SP1
• Interfaces: 1x RS422, 1x RS485, 1x Ethernet (RJ45), 2x USB
• Mounting: Vertical installation with a maximum permissible angle of inclination of 35° without external ventilation
• Protection Rating: IP65 at the front, IP20 at the rear

Technical Specifications:

• Display Resolution: 640 x 480 pixels
• Number of Colors: 65,536
• Processor: ARM
• Main Memory: 128 MB
• Supply Voltage: 24 V DC
• Dimensions (W x H x D): Approximately 243 mm x 186 mm x 60 mm
• Weight: Approximately 2.2 kg
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature Range: -20°C to +60°C
• Relative Humidity: Up to 90% (non-condensing)

Applications:

• Industrial Automation: Serves as an interface for monitoring and controlling automated processes.
• Process Control: Allows operators to interact with and manage various process parameters.
• Machine Operation: Provides a user-friendly interface for machine control and monitoring.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
