Siemens 3RH2122-1BB40 | SIRIUS Contactor Relay

Overview:

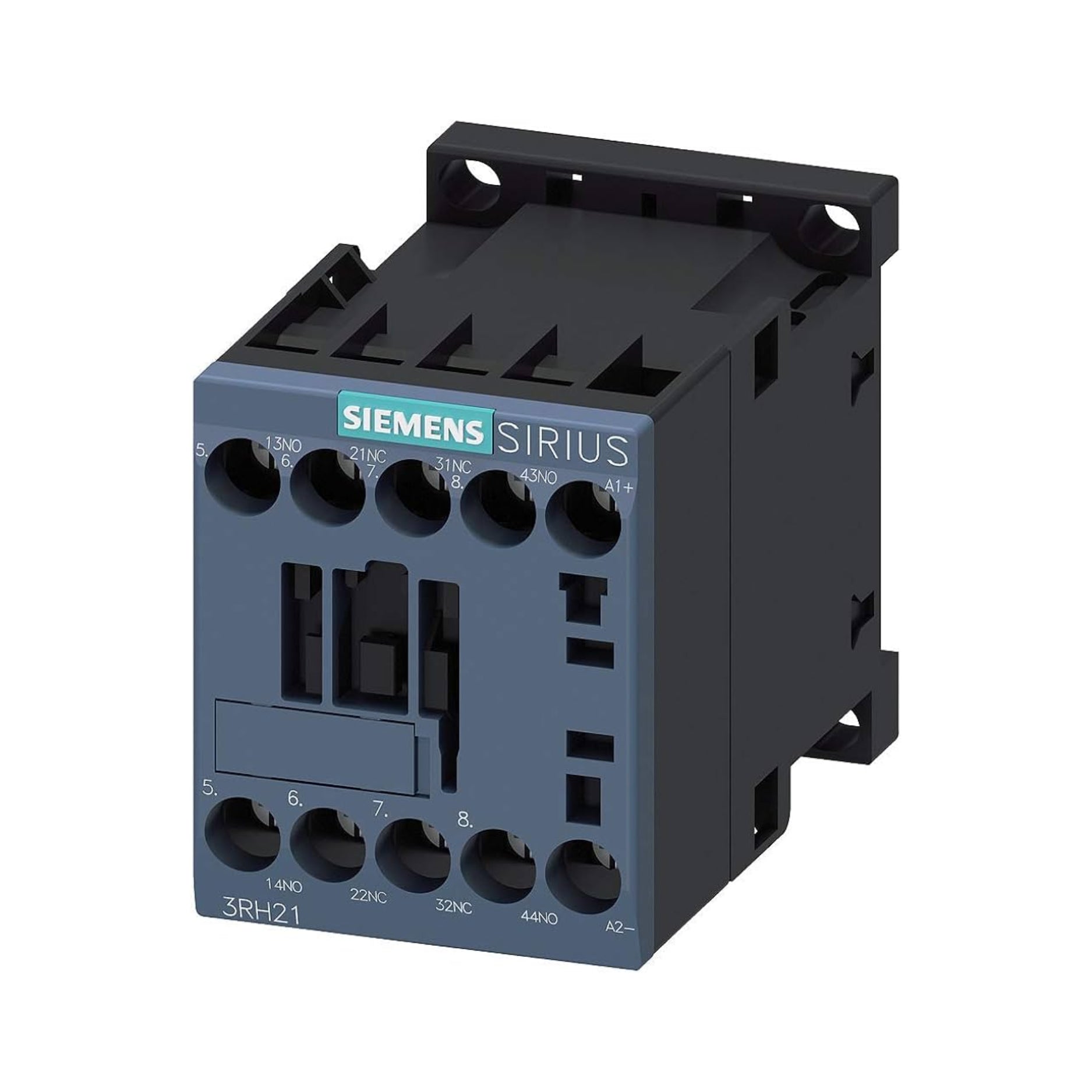

The Siemens 3RH2122-1BB40 is a SIRIUS series contactor relay designed for efficient control in industrial automation systems. It features a combination of 2 normally open (NO) and 2 normally closed (NC) contacts, operates with a 24 V DC coil voltage, and is equipped with screw terminals for secure and straightforward wiring. This relay is built to ensure reliable performance in various control applications.

Key Features:

• Contact Configuration: 2 NO + 2 NC contacts
• Coil Voltage: 24 V DC
• Terminal Type: Screw terminals
• Frame Size: S00
• Compact Design: Facilitates easy integration into control panels
• High Electrical Durability: Rated for up to 10 million operating cycles

Technical Specifications:

• Rated Operational Voltage (Ue): Up to 690 V AC
• Rated Operational Current (Ie):
  • AC-15 (Control of Electromagnetic Loads):
    • At 230 V: 10 A
    • At 400 V: 3 A
    • At 500 V: 2 A
    • At 690 V: 1 A
  • DC-13 (Control of Electromagnetic Loads):
    • At 24 V: 10 A
    • At 110 V: 1 A
    • At 220 V: 0.3 A
    • At 440 V: 0.14 A
    • At 600 V: 0.1 A
• Insulation Voltage (Ui): 690 V
• Surge Voltage Resistance: 6 kV
• Mechanical Life: 30 million operating cycles
• Ambient Operating Temperature: -25°C to +60°C
• Mounting: DIN rail or screw mounting
• Dimensions (H x W x D): 77.5 mm x 45 mm x 82 mm
• Net Weight: Approximately 0.271 kg

Applications:

• Industrial Automation: Ideal for controlling auxiliary circuits and interfacing with control systems
• Motor Control Centers: Suitable for use in motor starter combinations
• Lighting Systems: Effective in controlling lighting circuits
• General Control Circuits: Applicable in various control and signaling tasks

Order Now to enhance your control systems with Siemens' reliable SIRIUS contactor relay technology.
