SICK UM30-213113 | Ultrasonic Sensor, 3500mm Range, 10-30V DC,

SICK UM30-213113 (6036918) | Long-Range Ultrasonic Sensor, 3500mm Range

Overview

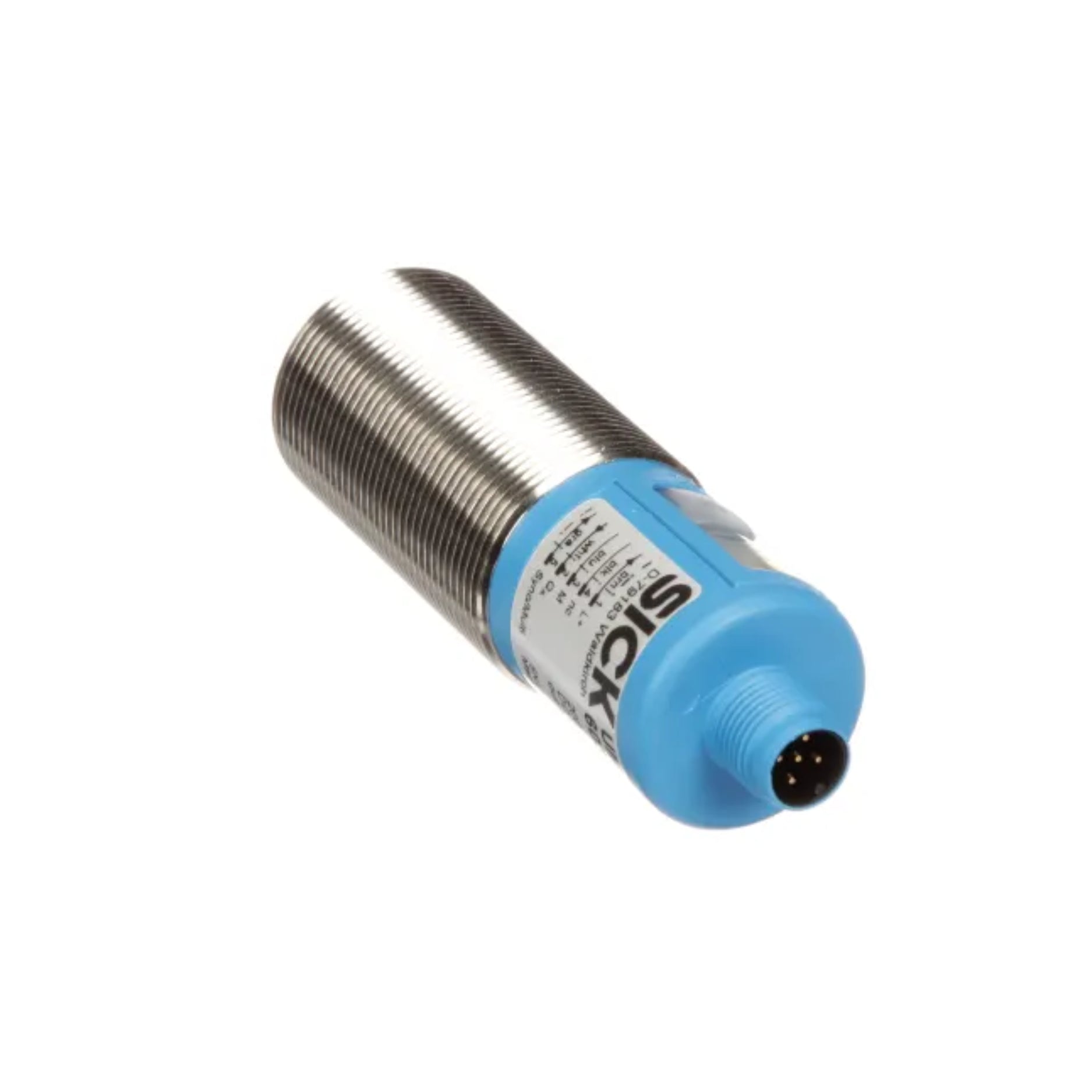

The SICK UM30-213113 (part number 6036918) is a high-precision ultrasonic sensor, designed for long-range distance measurement and object detection in industrial automation applications. With a detection range of up to 3500mm (3.5m), this sensor provides accurate measurement of distances, even for transparent, reflective, or irregularly shaped objects.

Operating on a 10-30V DC power supply, the UM30-213113 features both analog (4-20mA/0-10V) and switching outputs, offering versatile integration options into industrial control systems. Its rugged IP67-rated housing ensures long-lasting performance in harsh environments.

Key Features

• Ultrasonic Distance Sensor – Provides reliable detection of objects and materials
• 3500mm (3.5m) Sensing Range – Supports long-range applications
• Analog & Switching Outputs – Includes 4-20mA / 0-10V analog output and digital switching output
• 10-30V DC Power Supply – Compatible with standard industrial voltage levels
• Fast Response Time – Ensures real-time object detection and measurement
• IP67 Protection Rating – Resistant to dust, water, and harsh industrial conditions
• Compact & Robust Housing – Designed for demanding environments
• Easy Integration & Configuration – Supports various mounting options

Technical Specifications

• Model: UM30-213113
• Part Number: 6036918
• Type: Ultrasonic Distance Sensor
• Sensing Range: 200mm to 3500mm (3.5m)
• Output Type: Analog (4-20mA / 0-10V) and Digital Switching Output
• Operating Voltage: 10-30V DC
• Mounting Type: Standard bracket or surface mount
• Operating Temperature: -25°C to +70°C (-13°F to 158°F)
• Protection Class: IP67 (Dust & Water Resistant)
• Certifications: CE, UL, RoHS

Applications

• Level Measurement – Detects liquid or bulk material levels in tanks and silos
• Conveyor Belt Systems – Measures object distances and detects presence
• Packaging Machinery – Ensures precise material handling and placement
• Industrial Automation & Robotics – Provides accurate positioning and distance control
• Logistics & Warehousing – Supports automated detection and inventory tracking

Why Choose the SICK UM30-213113?

• Long-Range, High-Precision Measurement – Ideal for varied industrial applications
• Reliable Detection of Any Surface – Works with transparent, reflective, and irregular objects
• Versatile Output Options – Supports both analog and digital control systems
• Durable & Rugged Design – IP67-rated for harsh industrial conditions
• Fast & Easy Installation – Compatible with standard mounting setups
