Pepperl+Fuchs NBN40-U1-E2-V1 | Extended-Range Inductive Proximity Sensor for Harsh Environments

Overview

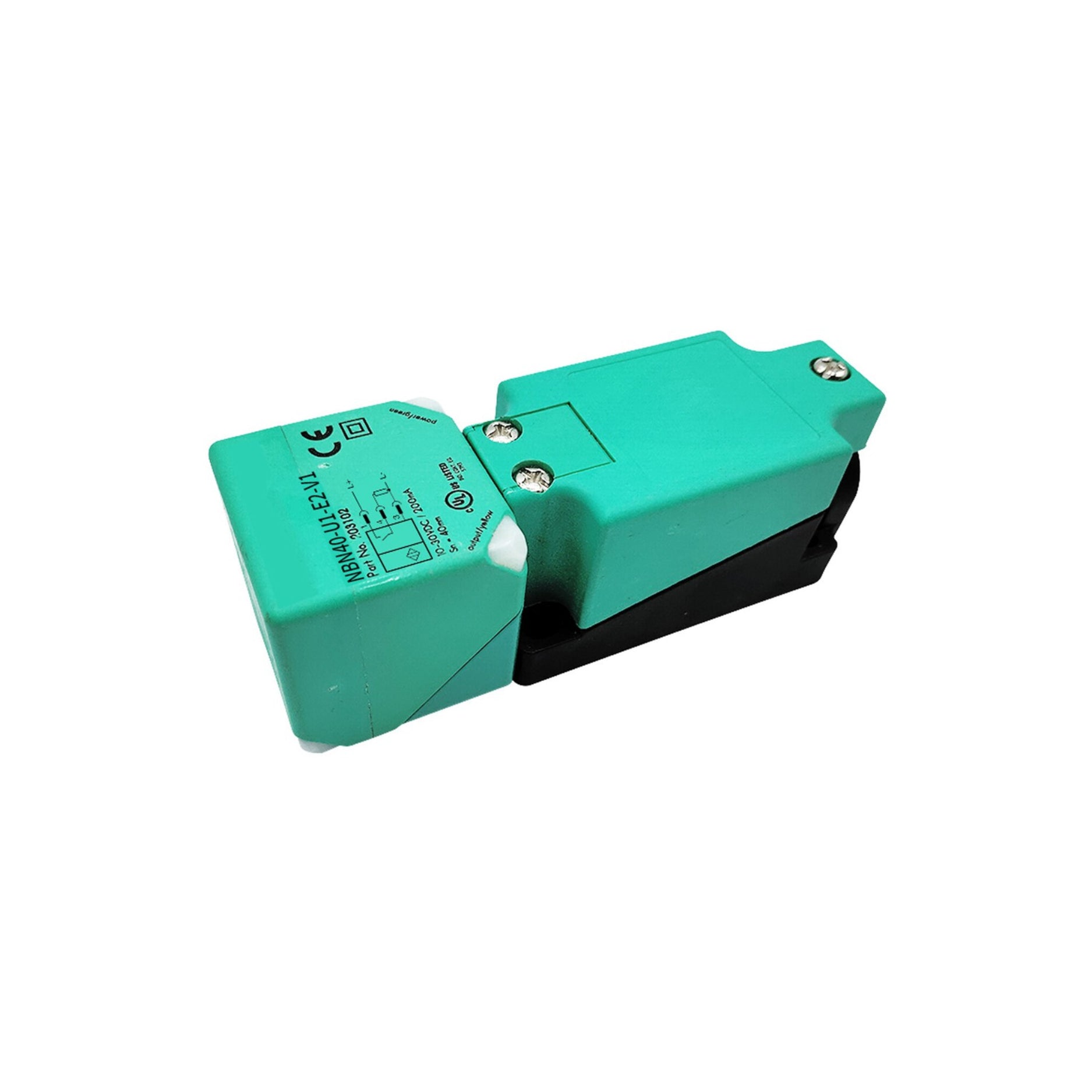

The NBN40-U1-E2-V1 from Pepperl+Fuchs is a rugged inductive proximity sensor offering a 40 mm sensing range in non-flush mounting. With a PNP normally open (NO) output, DC 3-wire configuration, and an M12 connector, it is ideal for detecting metal targets in industrial automation environments, even in harsh conditions.

Key Features

• 40 mm Sensing Distance – Extended range for non-flush mounting

• Inductive Sensing Principle – Reliable detection of metal objects

• PNP Output (NO) – Compatible with most PLC input cards

• M12 Connector – Quick and secure connection

• Robust Construction – Suitable for outdoor or industrial applications

• IP67 Rated – Dust-tight and protected against water immersion

Technical Specifications

• Model: NBN40-U1-E2-V1

• Part Number: 203095

• Sensor Type: Inductive proximity sensor

• Mounting Type: Non-flush

• Sensing Range: 40 mm

• Output Type: PNP, Normally Open (NO)

• Connection: M12 connector, 4-pin

• Voltage Range: 10–30 V DC

• Current Consumption: < 15 mA (no load)

• Switching Frequency: ≤ 100 Hz

• Housing Material: Plastic

• Protection Rating: IP67

• Ambient Temperature: -25°C to +70°C

Applications

• Conveyor Systems

• Automated Assembly Lines

• Packaging Machinery

• Material Handling Equipment

• Outdoor Equipment Monitoring

Why Choose This Sensor?

• Reliable operation in dirty or wet environments

• Fast, tool-free installation with M12 connector

• Trusted Pepperl+Fuchs engineering and durability
