Pepperl+Fuchs NBN4-F25-E8-V1 | 4 mm | PNP NO | Compact | IP67

Pepperl+Fuchs NBN4-F25-E8-V1 | Inductive Sensor, 4 mm, PNP NO, Rectangular, IP67

Overview:

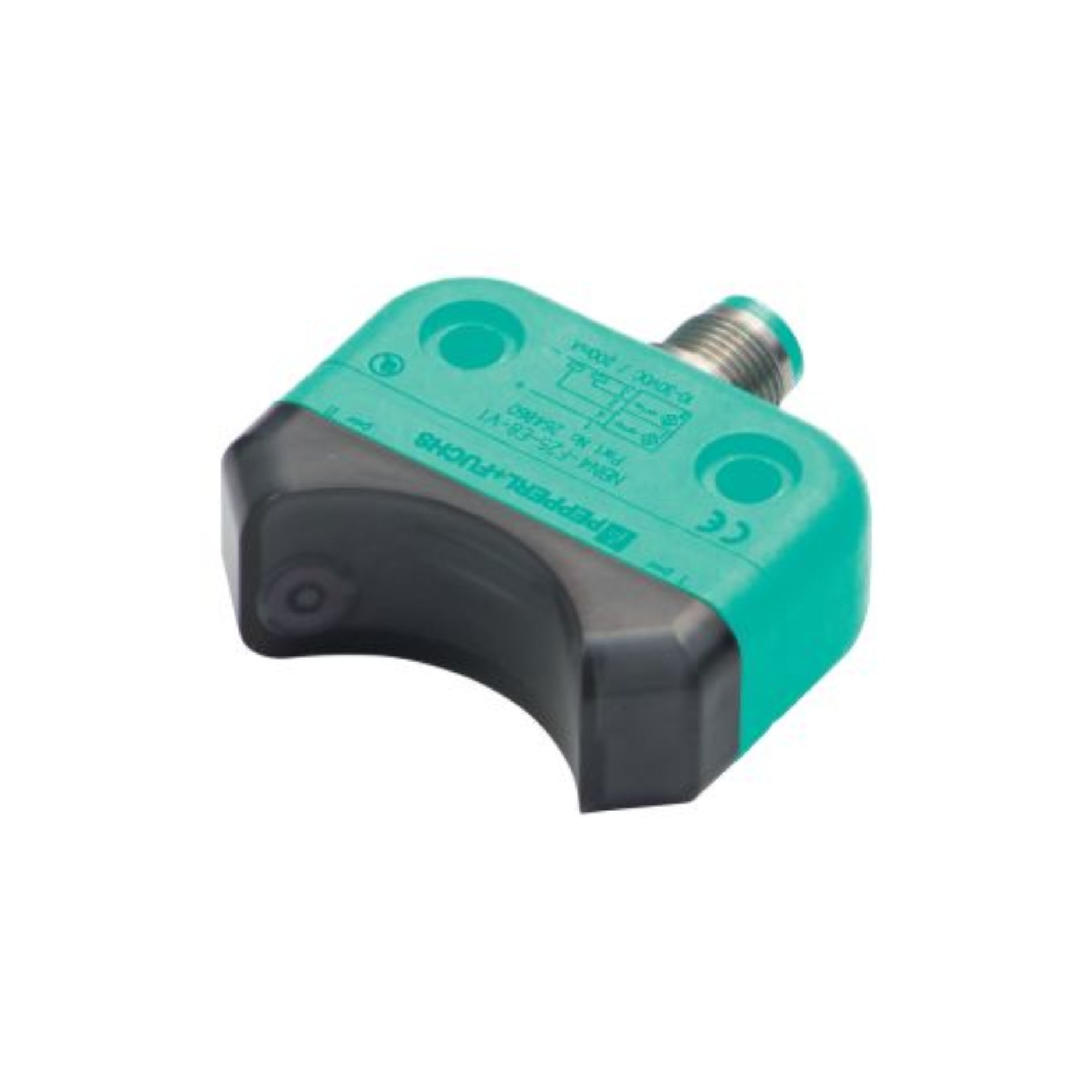

The Pepperl+Fuchs NBN4-F25-E8-V1 (Part No. 264860) is a compact rectangular inductive proximity sensor with a 4 mm sensing distance and flush mounting. Designed for applications with limited space, it features a PNP normally open output, M8 connector, and IP67 protection, ensuring reliable metal detection in automation systems and machine integration.

Key Features:

• Sensing Distance: 4 mm (flush mount)

• Output Type: PNP, Normally Open (NO)

• Operating Voltage: 10–30 VDC

• Connection Type: M8, 3-pin male connector

• Housing Style: Compact rectangular (F25 series)

• Housing Material: PBT plastic

• Protection Rating: IP67

• Switching Frequency: Up to 1,000 Hz

• LED Indicator: Status display

• Operating Temperature: -25°C to +70°C

Technical Specifications:

• Model Number: NBN4-F25-E8-V1

• Part Number: 264860

• Sensor Type: Inductive proximity

• Installation Type: Flush

• Voltage Drop: ≤ 1.5 V

• Load Current: Max. 100 mA

• Current Consumption: ≤ 10 mA (no load)

• Short-Circuit Protection: Yes

• Reverse Polarity Protection: Yes

• Dimensions: Approx. 25 mm x 8 mm x 8 mm

• Weight: Approx. 20 g

Applications:

• Automation Systems: Detect metal parts in compact layouts

• Robotics: Position feedback in tight spaces

• Material Handling: Monitor objects on mini conveyors

• Packaging Machines: Ensure correct component placement

• OEM Equipment: Ideal for embedded sensing solutions

Why Choose the NBN4-F25-E8-V1?

✅ Precise 4 mm flush sensing in a tiny footprint
✅ Quick-connect M8 plug for fast installation
✅ Reliable PNP NO output for PLC integration
✅ IP67-rated enclosure for industrial use
✅ Perfect for tight and dynamic applications

Order Now:

In stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
