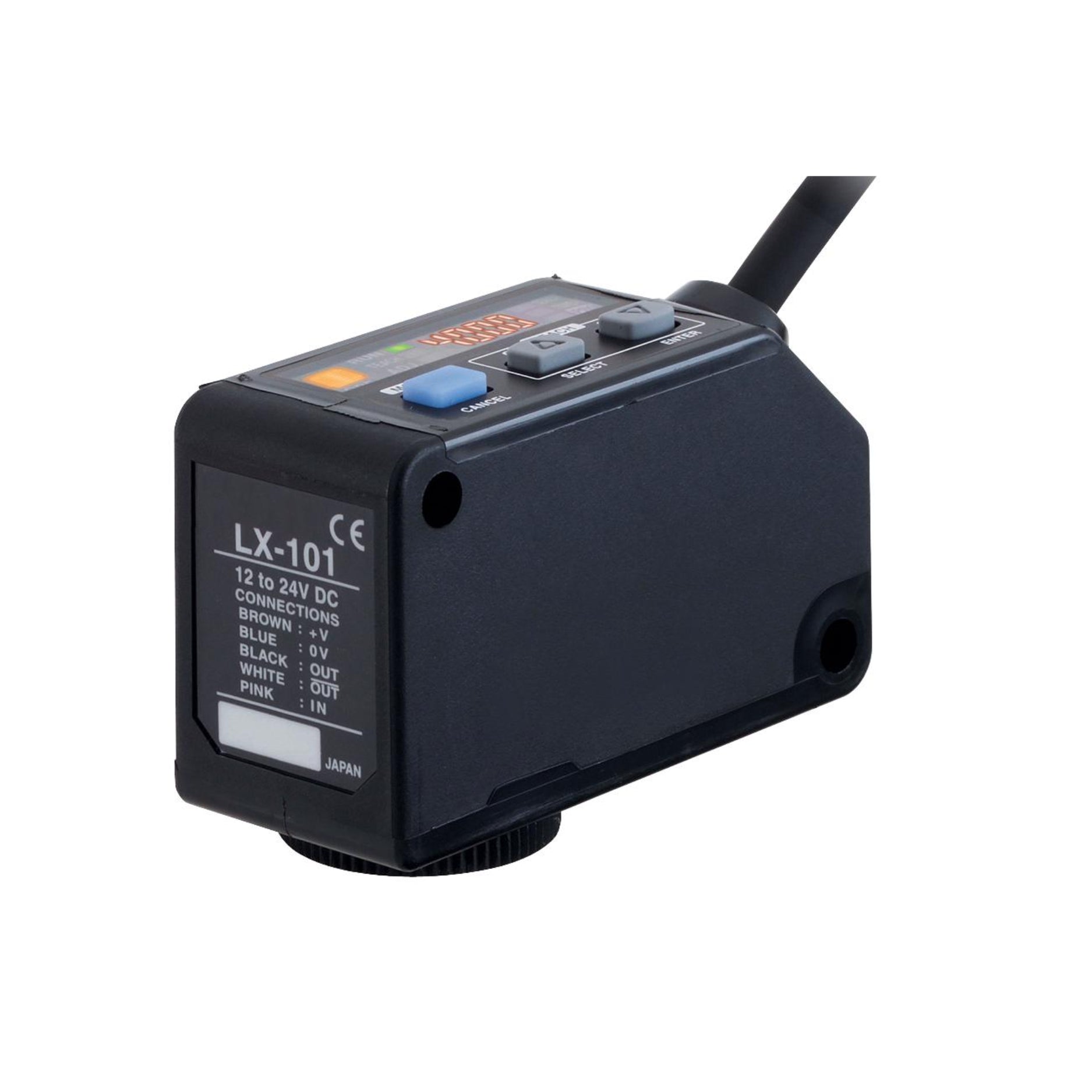

Panasonic LX-101 | High-Speed Digital Mark Sensor for Color

$222.00

Condition: New

Warranty: 1 Year

In Stock

+10 Available

We deliver worldwide

sales@ddpartssolution.com

📞 +1 (689) 275-3558

Panasonic LX-101 | Color Mark Sensor for High-Speed Print & Packaging Applications

Overview

The Panasonic LX-101 is a digital mark sensor from the LX-100 series, designed for fast, high-precision detection of color marks on packaging films, labels, and printed materials. It uses red LED illumination to detect subtle contrast differences between marks and backgrounds, even at high speeds.

With its compact body, adjustable sensitivity, and NPN output, the LX-101 is an excellent solution for cutting, positioning, and alignment applications in automated production systems.

Key Features

  • Fast Response Time: 45 μs

  • Red LED Light Source (660 nm): Optimized for color and contrast detection

  • NPN Open Collector Output – Normally open configuration

  • Compact Size: Slim and lightweight for space-limited installations

  • Manual Teaching Mode: Quick and easy mark/background setup

  • Bright LED Indicators: Show power and output status

  • Stable Operation: Reduces false detections from film wrinkles or print variations

Technical Specifications

  • Model: LX-101

  • Detection Method: Contrast-based color mark sensing

  • Light Source: Red LED (660 nm)

  • Response Time: 45 μs

  • Output Type: NPN open collector (NO)

  • Power Supply: 12–24 V DC ±10%

  • Current Consumption: Max. 30 mA

  • Control Method: Teach-in button (mark/background)

  • Connection: 2-meter cable

  • Operating Temperature: –10 to +55 °C

  • Protection Rating: IP64

  • Housing Material: Polycarbonate

  • Weight: Approx. 50 g

Applications

  • Printing Equipment – Detect registration marks for accurate alignment

  • Packaging Machines – Identify cutting/sealing positions using printed marks

  • Labeling Systems – Detect label gaps or mark positions on continuous rolls

  • Filling Machines – Synchronize product filling based on printed cues

Why Choose the Panasonic LX-101?

  • Ultra-fast detection for high-speed machines

  • Reliable mark sensing under challenging lighting and print conditions

  • Easy to install and configure

  • Compact design fits virtually anywhere in your system
