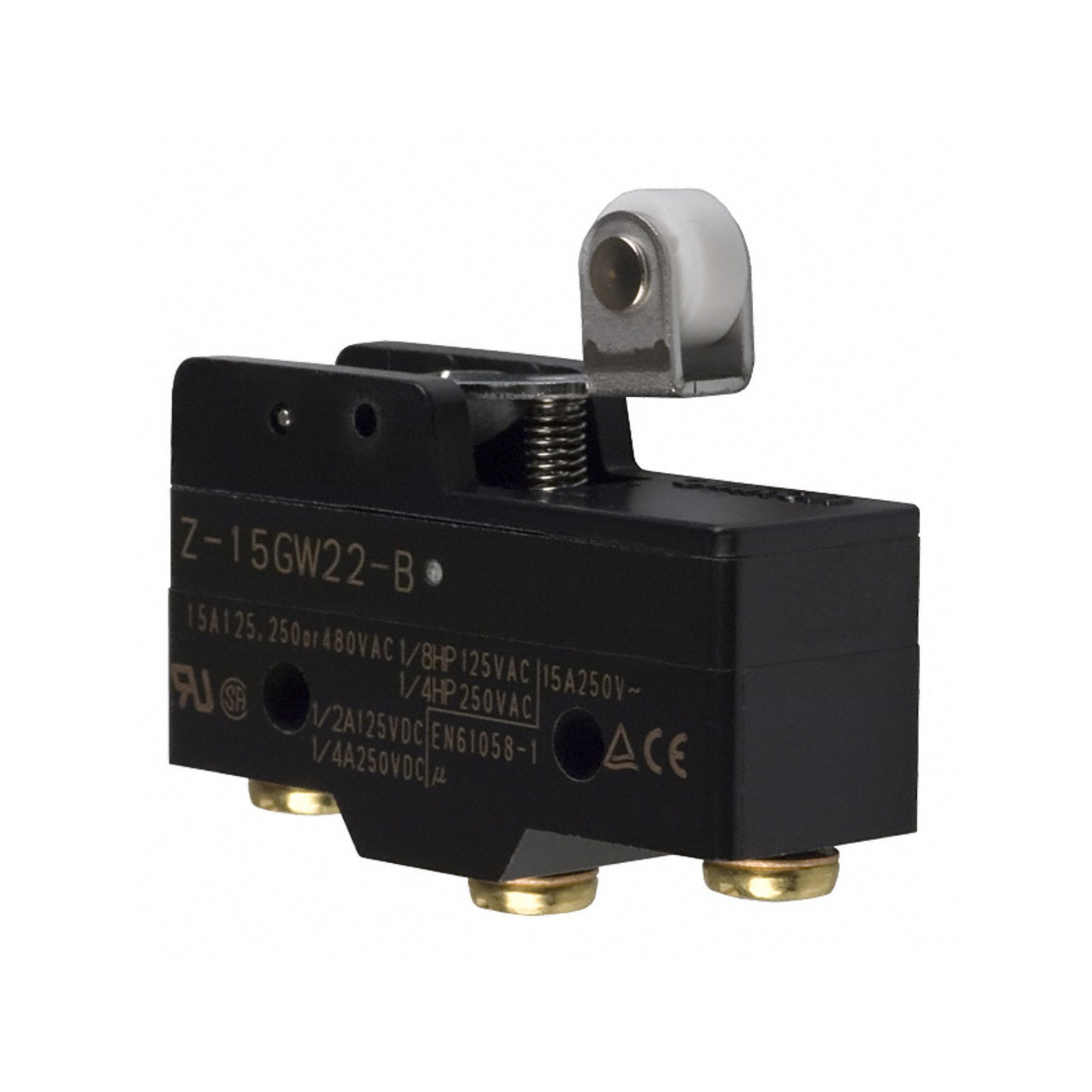

Omron Z-15GW22-B | 15A SPDT Basic Switch

$24.00

Condition: New

Warranty: 1 Year

In Stock

+10 Available

We deliver worldwide

sales@ddpartssolution.com

📞 +1 (689) 275-3558

Omron Z-15GW22-B | High-Precision Basic Switch for Industrial Applications

Overview

The Omron Z-15GW22-B is a general-purpose basic switch designed for high precision and reliability in industrial automation applications. Featuring a short hinge roller lever actuator and SPDT (Single-Pole, Double-Throw) contacts, this switch supports up to 15A at 125VAC and 6A at 30VDC, making it suitable for various control systems.

Key Features

  • High Current Capacity: Supports 15A at 125VAC and 6A at 30VDC, accommodating substantial electrical loads.

  • Actuator Type: Equipped with a short hinge roller lever, facilitating responsive actuation.

  • Contact Configuration: SPDT contacts provide versatile circuit control options.

  • Termination Style: Features screw terminals for secure and straightforward wiring.

  • Operating Force: Requires an operating force of 1.57 N (160 gf), ensuring reliable operation.

  • Mounting: Designed for chassis mount, allowing easy integration into various equipment.

Technical Specifications

  • Model Number: Z-15GW22-B

  • Contact Form: SPDT

  • Actuator Type: Short hinge roller lever

  • Current Rating:

    • AC: 15A at 125V

    • DC: 6A at 30V

  • Voltage Rating:

    • AC: 125V

    • DC: 30V

  • Operating Force: 1.57 N (160 gf)

  • Release Force: 0.41 N (42 gf)

  • Operating Position: 30.2 mm

  • Termination Style: Screw terminals

  • Mounting Type: Chassis mount

  • Ingress Protection: IP00

  • Operating Temperature Range: -25°C to 80°C

Applications

  • Industrial Automation: Provides reliable switching in control panels and machinery.

  • Conveyor Systems: Ensures precise control in material handling applications.

  • Packaging Equipment: Facilitates accurate operation in automated packaging lines.

  • Elevator Controls: Contributes to the safe and efficient functioning of elevator systems.

  • HVAC Systems: Supports control mechanisms in heating, ventilation, and air conditioning equipment.

Why Choose Omron Z-15GW22-B?

  • Reliable Performance: Engineered for high precision and repeatability in demanding environments.

  • Versatile Application: Suitable for a wide range of industrial and commercial applications.

  • Durable Construction: Built to withstand rigorous use, ensuring long service life.

  • Easy Installation: Screw terminals and chassis mount design simplify the installation process.

Order Now

Available for immediate shipping worldwide. Contact us to bundle with Omron relays, contactors, and other control components to complete your system setup.
