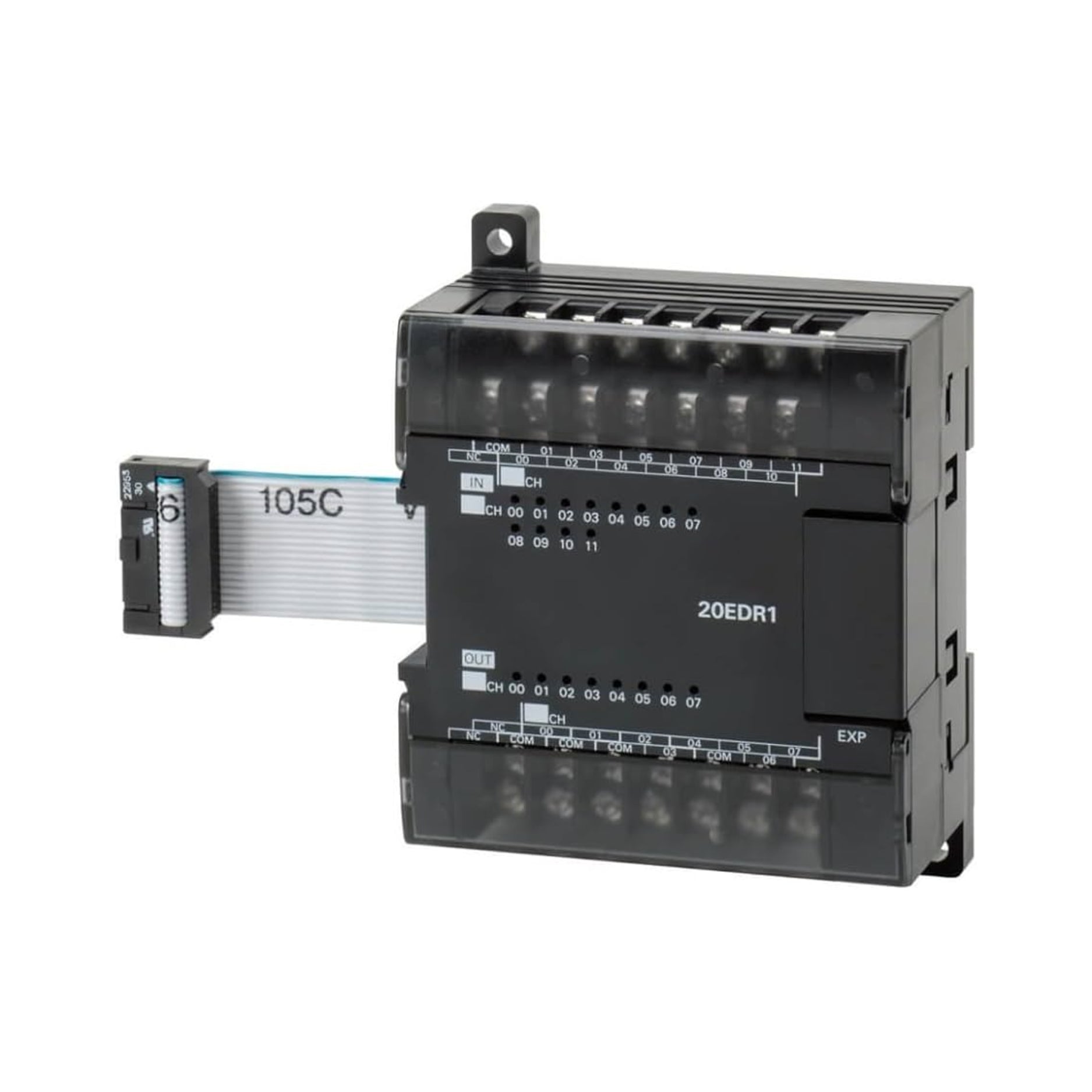

Omron CP1W-20EDR1 | I/O Expansion Module

Omron CP1W-20EDR1 | I/O Expansion Module for CP1 Series PLCs

Overview

The Omron CP1W-20EDR1 is a 20-point I/O expansion module designed for use with CP1 Series PLCs. It features 12 digital DC inputs and 8 relay outputs, offering a compact and cost-effective way to expand I/O capacity in machine control and automation systems.

Key Features

• Digital Inputs: 12 inputs compatible with 24V DC

• Digital Outputs: 8 relay outputs, NO (Normally Open) contacts

• Input Type: Sink/source input (PNP/NPN compatible)

• Output Ratings: 250 VAC / 30 VDC, 2A per point (max 8A total)

• Connection Type: Removable terminal block for easy wiring

• Compact Design: Saves panel space while expanding system capability

• DIN Rail Mountable: Quick and secure installation

Technical Specifications

• Model Number: CP1W-20EDR1

• Series: CP1 Series

• Number of Inputs: 12 (24V DC, PNP/NPN compatible)

• Number of Outputs: 8 relay outputs

• Input Voltage Range: 20.4 to 26.4 VDC

• Input Current: 7 mA typical per input

• Output Voltage Range: 5–250 VAC / 5–30 VDC

• Output Current: 2A per point, 8A total per unit

• Response Time: Input ON/OFF delay: 10 ms max

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +75°C

• Operating Humidity: 10% to 90% (non-condensing)

• Mounting: DIN rail or screw-mount

• Weight: Approx. 250 g

• Certifications: CE, UL, RoHS

Applications

• Machine Automation: Easily expand I/O capacity for industrial machinery

• Packaging Lines: Integrates additional sensors and actuators

• Building Automation: Provides control for lighting, HVAC, and access systems

• Process Monitoring: Connects more field devices for data acquisition

Why Choose Omron CP1W-20EDR1?

• Efficient Expansion: Adds 20 I/O points in a compact module

• Flexible Input Compatibility: Works with both PNP and NPN input devices

• Durable Outputs: Relay contacts support a wide range of voltage and current loads

• Reliable Integration: Seamless with Omron CP1H, CP1L, and CP1E PLCs

Order Now

Ready for immediate worldwide shipping. Ask us about compatible CP1 PLCs, expansion cables, and accessories to build your complete system.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
