Lenze ESV371N01SXC | 0.5 HP VFD, 1-Phase, 120 V, NEMA 1 Enclosure

Lenze ESV371N01SXC | 0.5 HP VFD, 1-Phase, 120 V, NEMA 1 Enclosure

Overview

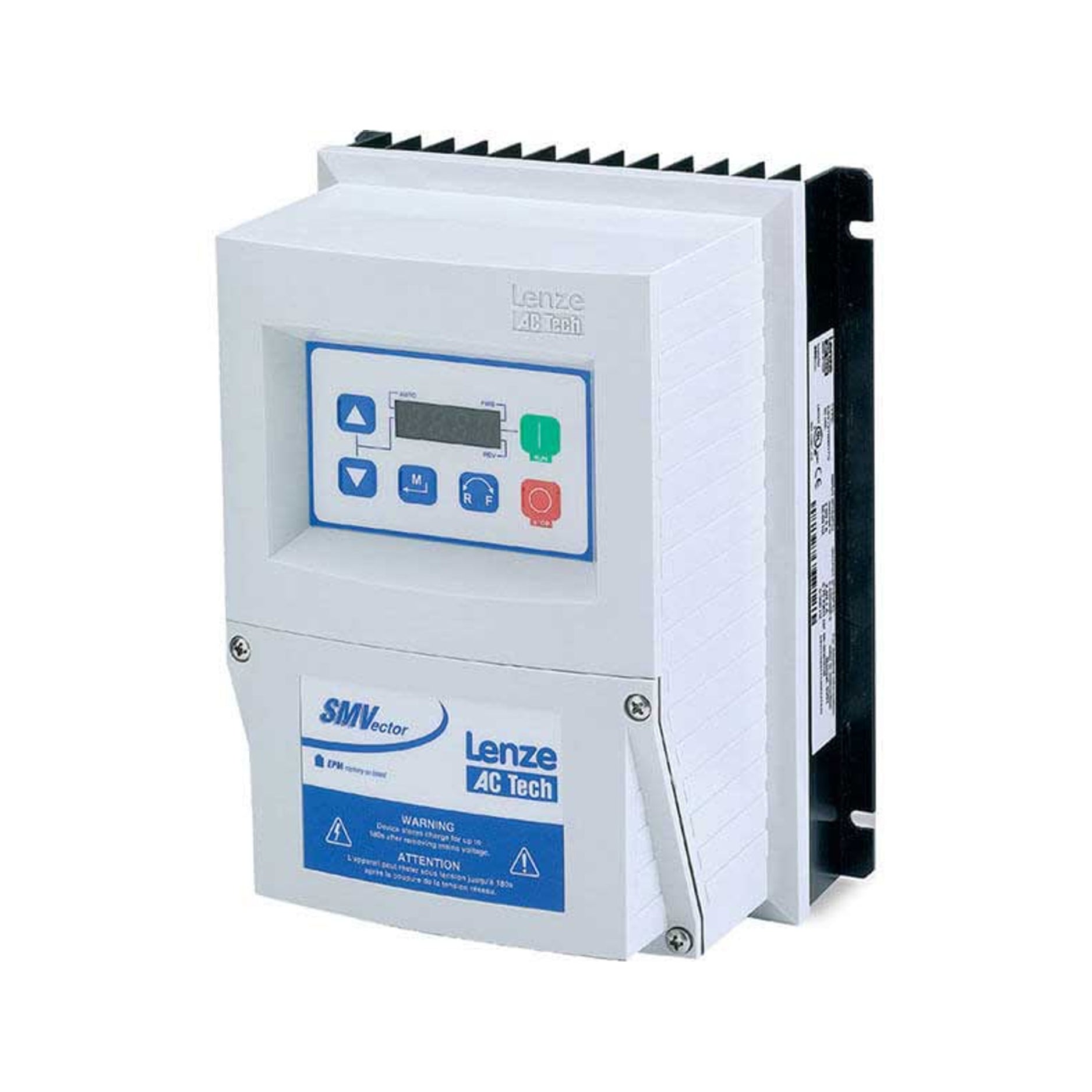

The Lenze ESV371N01SXC is a 0.5 HP variable frequency drive from the SMVector series, designed for reliable low-voltage motor control. With a NEMA 1 enclosure and compact design, it’s ideal for OEM and commercial use.

Key Features

• Power Output: 0.5 HP (approx. 0.37 kW)

• Input Voltage: 1-phase, 120 V AC

• Output Voltage: 3-phase, 0–230 V

• Control Type: V/f, Enhanced V/f, Sensorless Vector

• Integrated Keypad: Yes

• Enclosure Rating: NEMA 1 (IP31)

• Communication: Modbus RTU (standard); optional expansions available

Technical Specifications

• Frequency Range: 0–500 Hz

• Overload Capacity: 150% for 60 seconds

• Ambient Temp: -10°C to +45°C (no derating)

• Cooling: Internal fan

• I/O Configuration: Programmable analog and digital I/O

• Dimensions (H x W x D): Approx. 180 mm x 100 mm x 140 mm

• Weight: Approx. 1.3 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• Light conveyors

• Pumps and fans

• Small machinery

• Food processing equipment

• OEM automation

Product Description

The Lenze ESV371N01SXC delivers compact and efficient motor control with multiple control modes and communication options, making it a great fit for small-scale automation tasks.

Why Choose Lenze ESV371N01SXC?

• Easy installation and configuration

• Compact, low-voltage drive

• Versatile control and interface options

• Ideal for OEM and light-duty applications

Order Now

Boost your equipment efficiency with the Lenze ESV371N01SXC, a compact and intelligent drive for 120 V low-power applications.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
