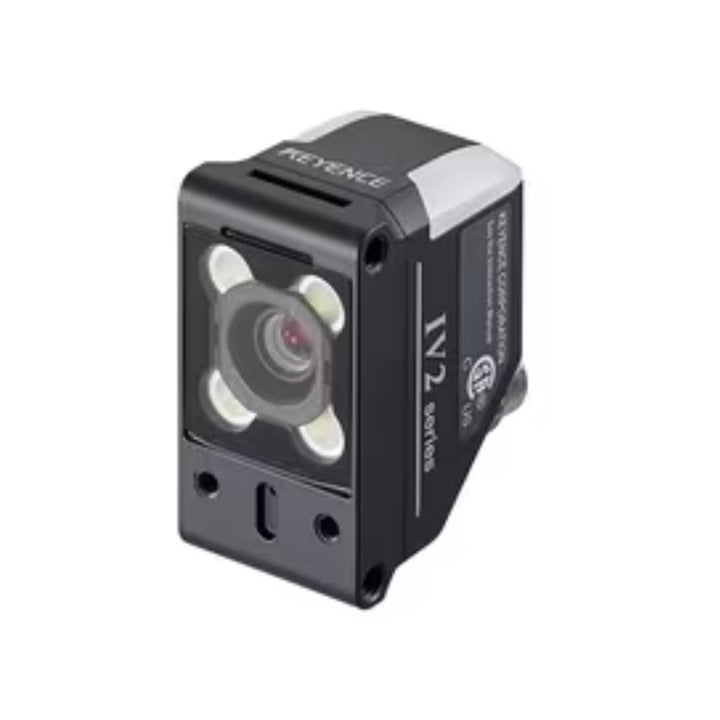

Keyence IV2-G300CA

Keyence IV2-G300CA | AI-Enhanced Color Vision Sensor with Built-in Autofocus & Lighting

Overview

The Keyence IV2-G300CA is an AI-powered color vision sensor equipped with a built-in autofocus lens and integrated lighting, delivering fast and stable inspection performance for a wide variety of targets. Its advanced image processing capabilities allow for detection of complex shapes, colors, and orientations with minimal setup and maximum reliability.

This model is optimized for use in manufacturing and quality control environments, where consistent detection and ease of use are critical.

Key Features

• AI Detection Engine – Learns target characteristics automatically

• Color CMOS Sensor – Accurately detects color differences and patterns

• Built-in Autofocus – Automatically adjusts for varying target distances

• Integrated Ring Lighting – RGB LED lighting with adjustable intensity

• Easy Setup Interface – Configure in minutes with Keyence software or touch panel

• Compact & Durable Design – Industrial-grade housing with IP67 protection

Technical Specifications

• Model: IV2-G300CA

• Image Sensor: 1/3-inch color CMOS

• Detection Method: AI-based color recognition

• Resolution: 752 × 480 pixels (VGA)

• Lens: Built-in autofocus (adjustable via software)

• Lighting: Built-in RGB LED ring

• Field of View (FOV): Varies based on installation distance

• Power Supply: 24 VDC ±10%

• Interface: Ethernet, EtherNet/IP, PROFINET, TCP/IP

• Operating Temperature: 0 to +50°C

• Protection Rating: IP67

• Dimensions: Approx. 40 × 60 × 80 mm

• Weight: Approx. 200 g

Applications

• Part Identification & Sorting – Based on shape and color

• Label Inspection – Verifies label presence, position, and print color

• Assembly Verification – Confirms correct component installation

• Packaging Lines – Detects products or packaging errors in motion

Why Choose the Keyence IV2-G300CA?

• AI-powered stability with minimal operator input

• Clear, consistent detection of colored parts

• Compact, all-in-one sensor simplifies machine integration

Order Now

In stock and ready for fast shipping. Worldwide delivery available. Controllers and accessories sold separately.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
