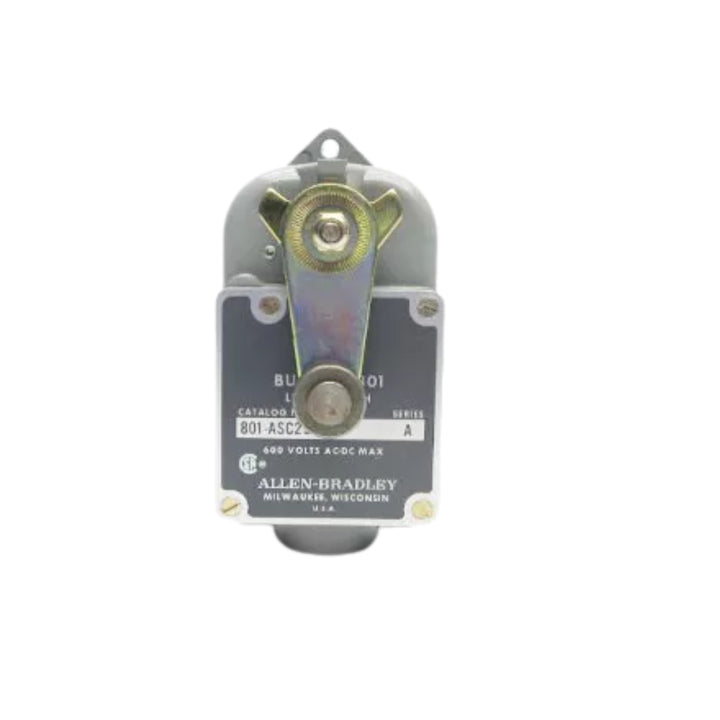

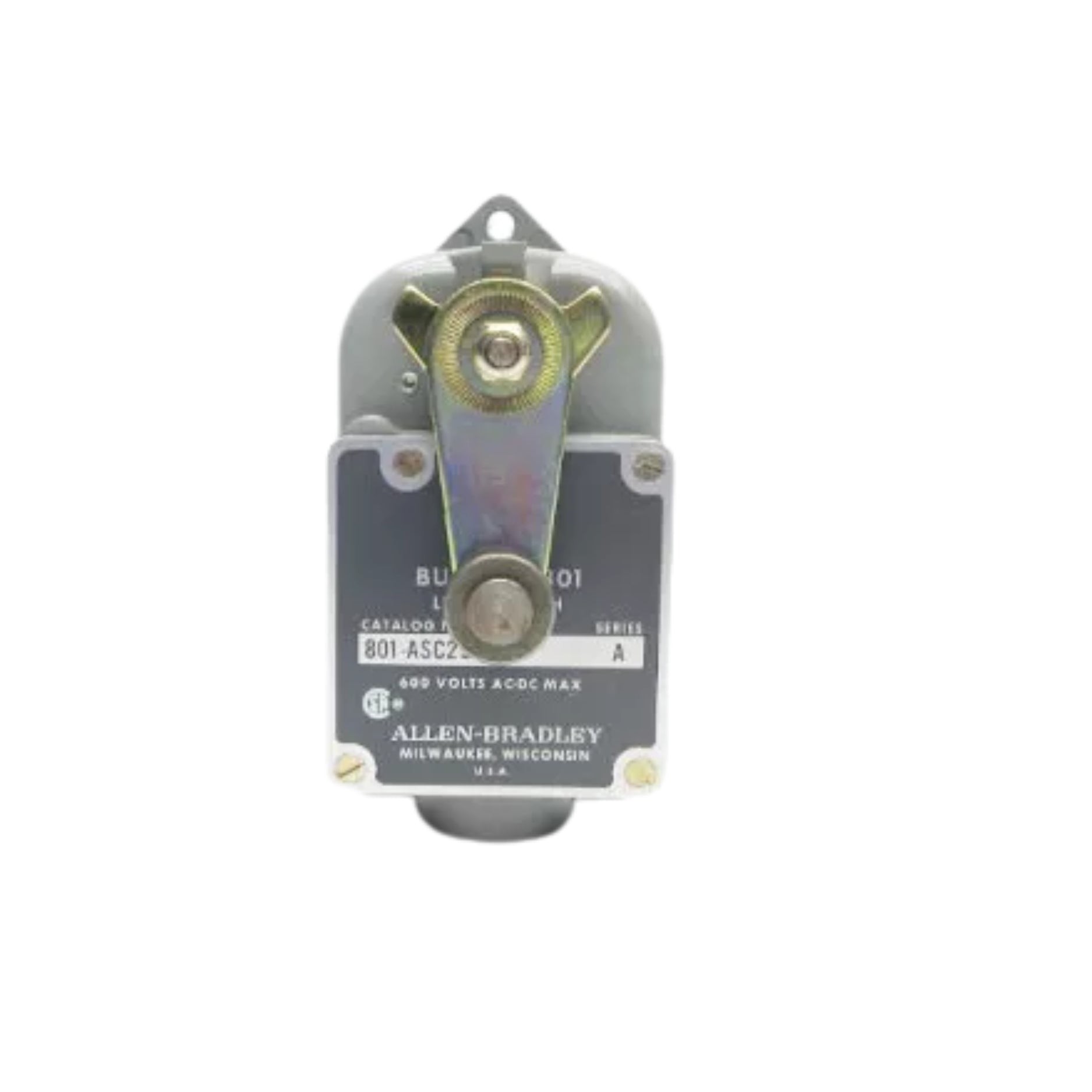

Allen-Bradley 801-ASC29

Allen-Bradley 801-ASC29 | General Purpose Limit Switch

Overview:

The Allen-Bradley 801-ASC29 is a general-purpose limit switch, designed for precise position detection and industrial automation control. Featuring a roller lever actuator, snap action mechanism, and spring return, this switch provides reliable operation in harsh environments.

With a Type 6 housing style and electrical ratings of 120V/6A to 600V/1.2A, the 801-ASC29 ensures durability and long-lasting performance in industrial applications.

Key Features:

• Roller Lever Actuator – Provides smooth and precise activation
• Snap Action Mechanism – Ensures quick and reliable switching
• Spring Return Design – Automatically resets after activation
• Electrical Ratings:
  • 120V AC – 6A
  • 600V AC – 1.2A
• Type 6 Housing Style – Built for rugged industrial environments
• Arrangement C Contact Configuration – Supports versatile application needs

Technical Specifications:

• Model: 801-ASC29
• Actuator Type: Roller Lever
• Switch Action: Snap Action
• Return Mechanism: Spring Return
• Voltage Rating: 120V/6A - 600V/1.2A
• Housing Style: Type 6
• Contact Arrangement: C
• Mounting: Panel or Machine Mount
• Certifications: UL, CE, RoHS

Applications:

• Machine Position Detection – Provides accurate sensing for industrial equipment
• Conveyor Systems & Material Handling – Ensures smooth and automated operation
• Packaging & Assembly Lines – Enhances control of production processes
• Industrial Safety & Automation – Supports interlocking and safety mechanisms

Why Choose the Allen-Bradley 801-ASC29?

The Allen-Bradley 801-ASC29 limit switch offers rugged industrial performance, high-speed snap action switching, and long-lasting durability, making it a reliable solution for position detection in automation systems.
