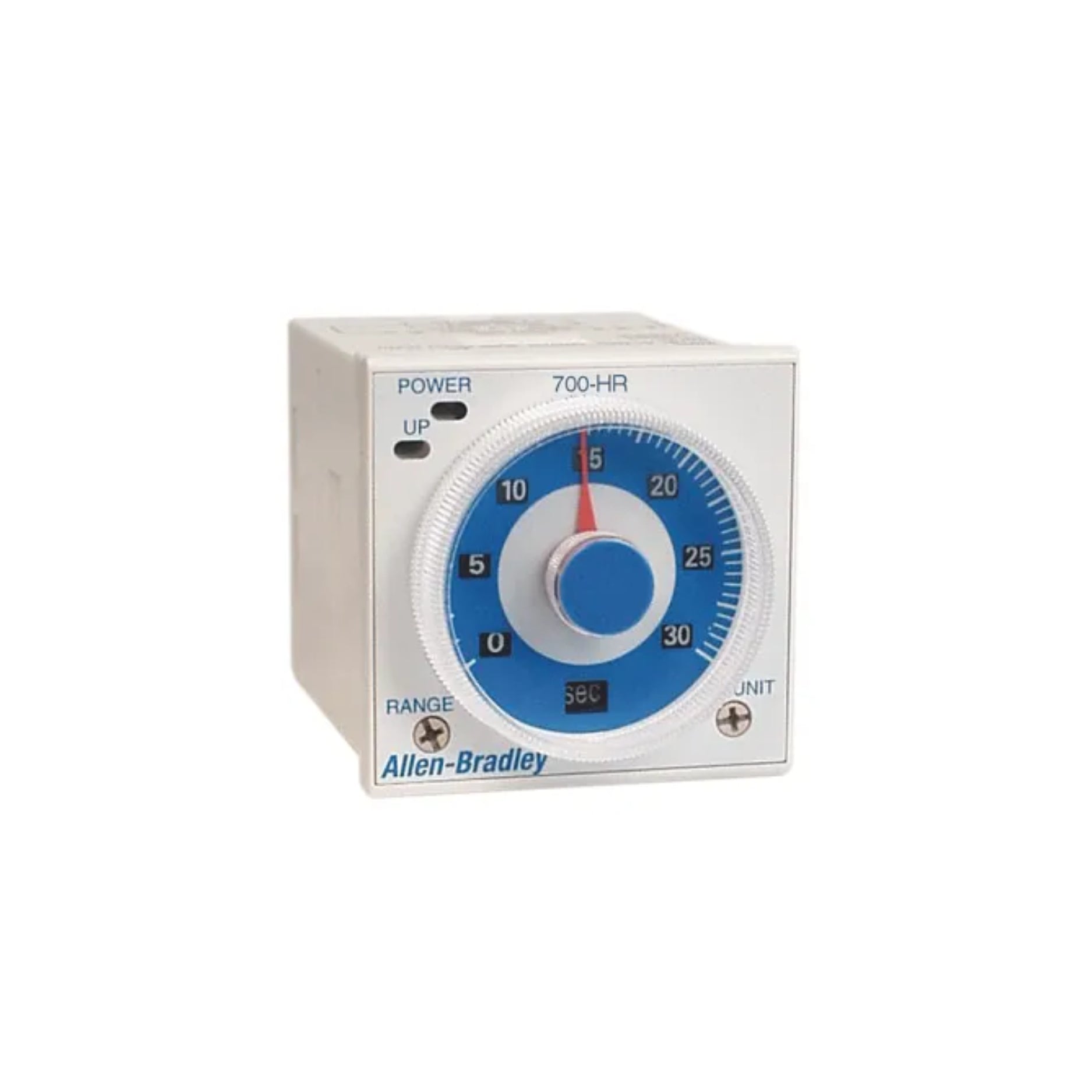

Allen-Bradley 700-HR52TA17 Timing Relay

Product Description:

The Allen-Bradley 700-HR52TA17 is a versatile general-purpose dial timing relay offering a wide range of timing functions and a broad timing range.¹ This multi-function relay features two timed contacts with no voltage inputs, allowing for flexible control of various loads. It offers six selectable timing modes, covering a range from 0.05 seconds to 300 hours. The timed output contacts are Double Pole Double Throw (DPDT).² The relay accepts a wide input voltage range of 100-240V AC at 50/60Hz and 100-125V DC.³

Key Features:

• Multi-Function: Offers six selectable timing functions (specify these from documentation if possible – e.g., On-Delay, Off-Delay, Interval, etc.).⁴
• Wide Timing Range (0.05 seconds to 300 hours): Provides flexibility for various timing requirements.⁵
• 2 Timed Contacts (No Voltage Inputs): Allows for controlling two independent circuits based on the timing function. The "no voltage inputs" likely means the timing is initiated by the application of the control voltage to the coil, not by separate trigger signals.
• Multi-Mode (6 Functions): Offers different timing modes to suit various applications.⁶
• DPDT Timed Contacts: Each timed contact has both a normally open (NO) and a normally closed (NC) contact, providing greater control flexibility.⁷
• Wide Voltage Input (100-240V AC 50/60Hz / 100-125V DC): Accommodates a broad range of supply voltages.
• Dial Adjustment: Allows for easy setting of the desired time delay.

Technical Specifications:

• Product Type: General Purpose Dial Timing Relay
• Catalog Number: 700-HR52TA17
• Series: 700-HR
• Timing Range: 0.05 seconds to 300 hours⁸
• Number of Timed Contacts: 2 (DPDT)⁹
• Input Voltage: 100-240V AC 50/60Hz / 100-125V DC

Applications:

• Machine control
• Process control
• Packaging machinery
• Material handling
• Any application requiring precise timing control
