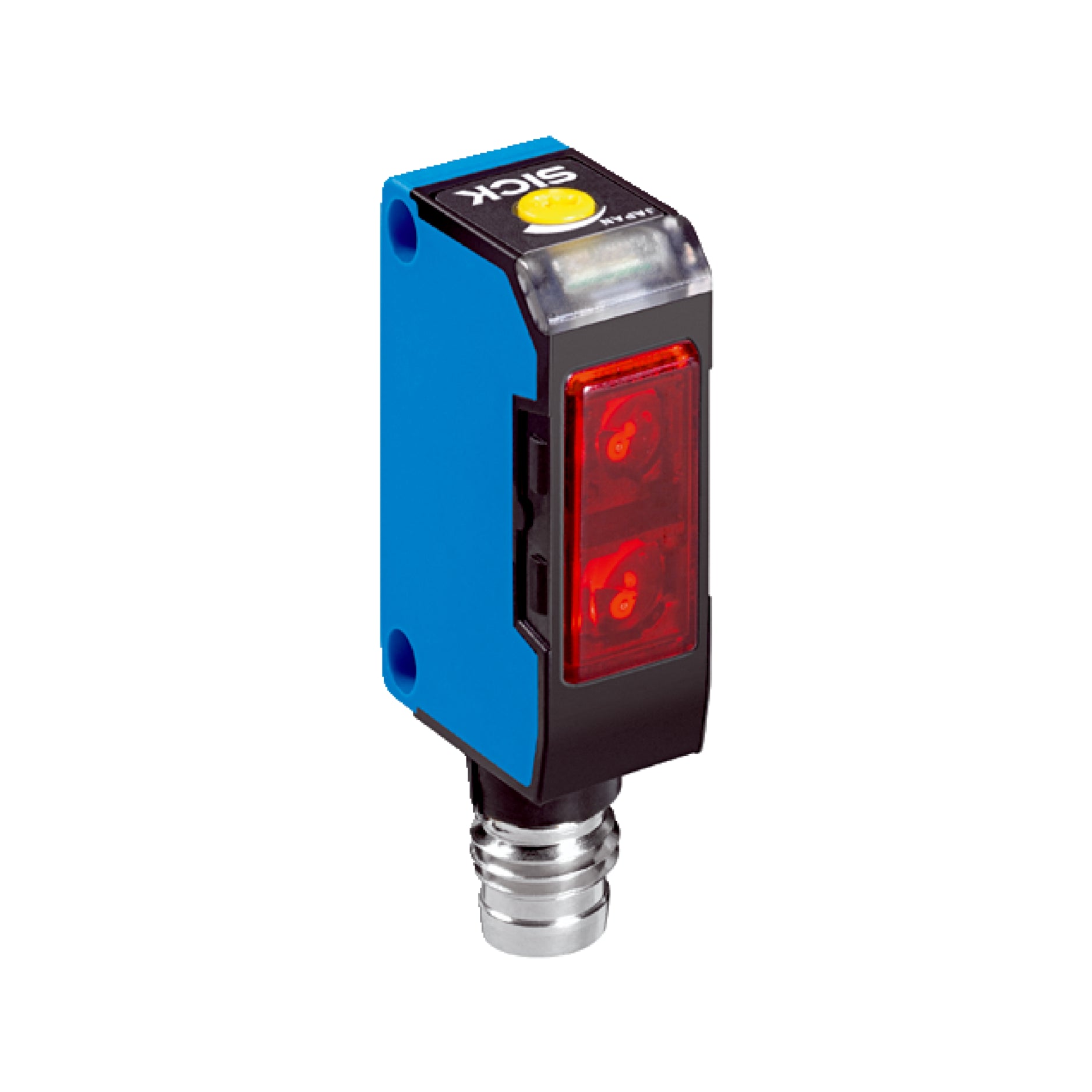

SICK WT150-P460 | 6011050 Miniature Photoelectric Sensor with

SICK WT150-P460 | Miniature Photoelectric Sensor with Background Suppression, 2-100 mm Sensing Range, PNP Output

Overview

The SICK WT150-P460 is a miniature photoelectric proximity sensor designed for precise object detection in industrial environments. Featuring background suppression, it accurately detects objects within a sensing range of 2 mm to 100 mm, regardless of color or surface qualities. The sensor emits visible red light from an LED source, facilitating easy alignment during installation. Its compact design and robust performance make it suitable for applications where space is limited, yet reliable detection is crucial.

Key Features

• Background Suppression: Ensures reliable detection of objects without interference from backgrounds.
• Sensing Range: Adjustable from 2 mm to 100 mm, accommodating various application needs.
• Visible Red Light LED: Simplifies sensor alignment and setup.
• Compact Dimensions: Measures 10 mm (W) x 28 mm (H) x 18 mm (D), ideal for installations with limited space.
• PNP Switching Output: Provides compatibility with a wide range of control systems.
• Light/Dark Switching: Selectable via control cable for application flexibility.
• Durable Construction: Housing made from ABS plastic with IP67 enclosure rating, suitable for harsh industrial environments.

Technical Specifications

• Model: WT150-P460
• Part Number: 6011050
• Sensing Range: 2 mm to 100 mm
• Light Source: LED, visible red light
• Supply Voltage: 10 V DC to 30 V DC
• Current Consumption: ≤ 20 mA (without load)
• Switching Frequency: Up to 1,000 Hz
• Response Time: ≤ 0.5 ms
• Output Type: PNP, light/dark-switching, open collector
• Connection: M8, 4-pin male connector
• Housing Material: ABS plastic
• Optics Material: Polycarbonate (PC)
• Enclosure Rating: IP67
• Operating Temperature: -25 °C to +55 °C
• Weight: 7 g

Applications

• Material Handling: Detects items on conveyors, ensuring proper sorting and processing.
• Packaging Industry: Monitors presence and position of packages for accurate packaging operations.
• Automated Assembly: Ensures components are correctly positioned before assembly processes.
• Robotics: Provides feedback for robotic arms to interact accurately with objects.
• Printing Industry: Detects paper edges or printed marks for alignment and quality control.

Why Choose the SICK WT150-P460?

• High Precision Detection: Accurately detects objects with varying colors and surfaces without background interference.
• Compact and Robust Design: Fits into tight spaces while withstanding demanding industrial conditions.
• Easy Installation and Adjustment: Visible red light and adjustable potentiometer facilitate quick setup and calibration.
• Reliable Performance: Fast response time and high switching frequency ensure efficiency in high-speed applications.

Order Now

Fast shipping and worldwide delivery available. Ensure reliable object detection in your industrial applications with the SICK WT150-P460 photoelectric sensor.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
