SEW-Eurodrive DEH11B | Hiperface® Encoder Card

SEW-Eurodrive DEH11B | Dual-Channel Hiperface® Encoder Interface for Precision Motion Control

Overview

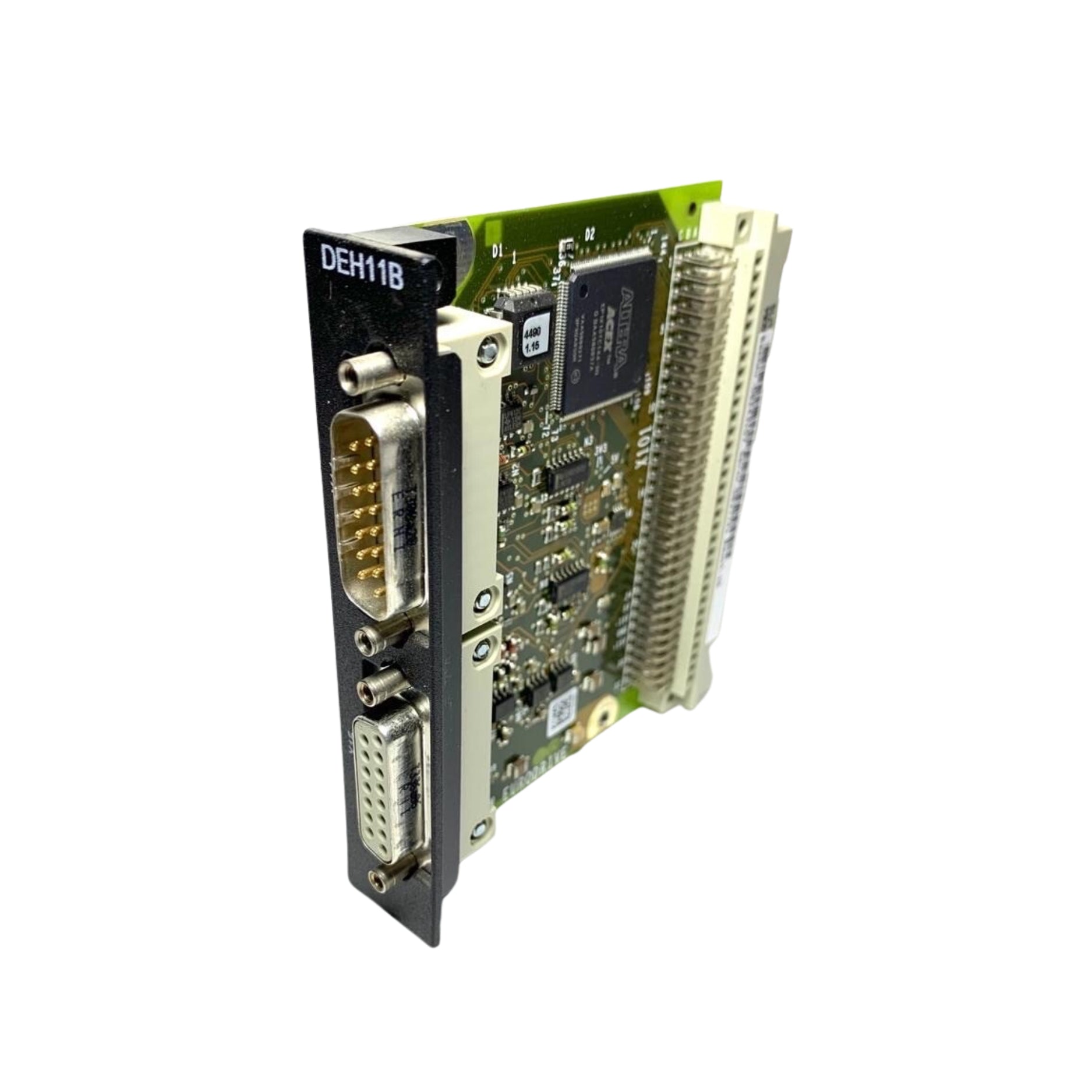

The SEW-Eurodrive DEH11B is a Hiperface® encoder card designed for use with MOVIDRIVE® MDX61B inverters. It provides inputs for both motor and external encoders, facilitating precise motion control in industrial applications.

Key Features

• Motor Encoder Input (X15): Supports Hiperface®, sin/cos (1 Vpp), TTL (with negated tracks), and RS422 signal level encoders

• External Encoder Input/Output (X14):

  • Input: Supports Hiperface®, sin/cos (1 Vpp), TTL (with negated tracks), and RS422 signal level encoders

  • Output: RS422 signal for incremental encoder simulation

• Encoder Power Supply: 12 VDC (10.5–13 V), max 650 mA

• Compact Design: Easy integration into existing systems

• Compatibility: Designed for MOVIDRIVE® MDX61B inverters

Technical Specifications

• Model: DEH11B

• Part Number: 824 310 7

• Motor Encoder Input (X15):

  • Supported Encoder Types:

    • Hiperface®

    • Sin/cos encoder (Vpp = AC 1 V)

    • TTL encoder with negated tracks

    • Encoder with RS422 signal level

  • Permitted PPR Count: 128, 256, 512, 1024, 2048 increments

• External Encoder Input/Output (X14):

  • Input:

    • Supported Encoder Types:

      • Hiperface®

      • Sin/cos encoder (Vpp = AC 1 V)

      • TTL encoder with negated tracks

      • Encoder with RS422 signal level

    • Maximum Input Frequency: 200 kHz

  • Output:

    • Signal Level: RS422

    • Pulses per Revolution: Matches motor encoder input (X15)

• Encoder Power Supply:

  • Voltage: 12 VDC (tolerance range: 10.5–13 V)

  • Maximum Current: 650 mA

• Maximum Cable Length: 100 m (328 ft)

• Dimensions: Approximately 10 × 8.8 × 2 cm

• Weight: Approximately 0.5 kg

• Country of Origin: Germany

Applications

• Industrial Automation

• Material Handling Systems

• Packaging Machinery

• Robotics and CNC Machines

Why Choose SEW-Eurodrive DEH11B?

• Dual Encoder Inputs: Facilitates complex motion control tasks

• High Compatibility: Seamless integration with MOVIDRIVE® MDX61B inverters

• Robust Performance: Reliable operation in demanding industrial environments

• Compact and Lightweight: Easy installation without adding significant bulk

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
