Product Description:

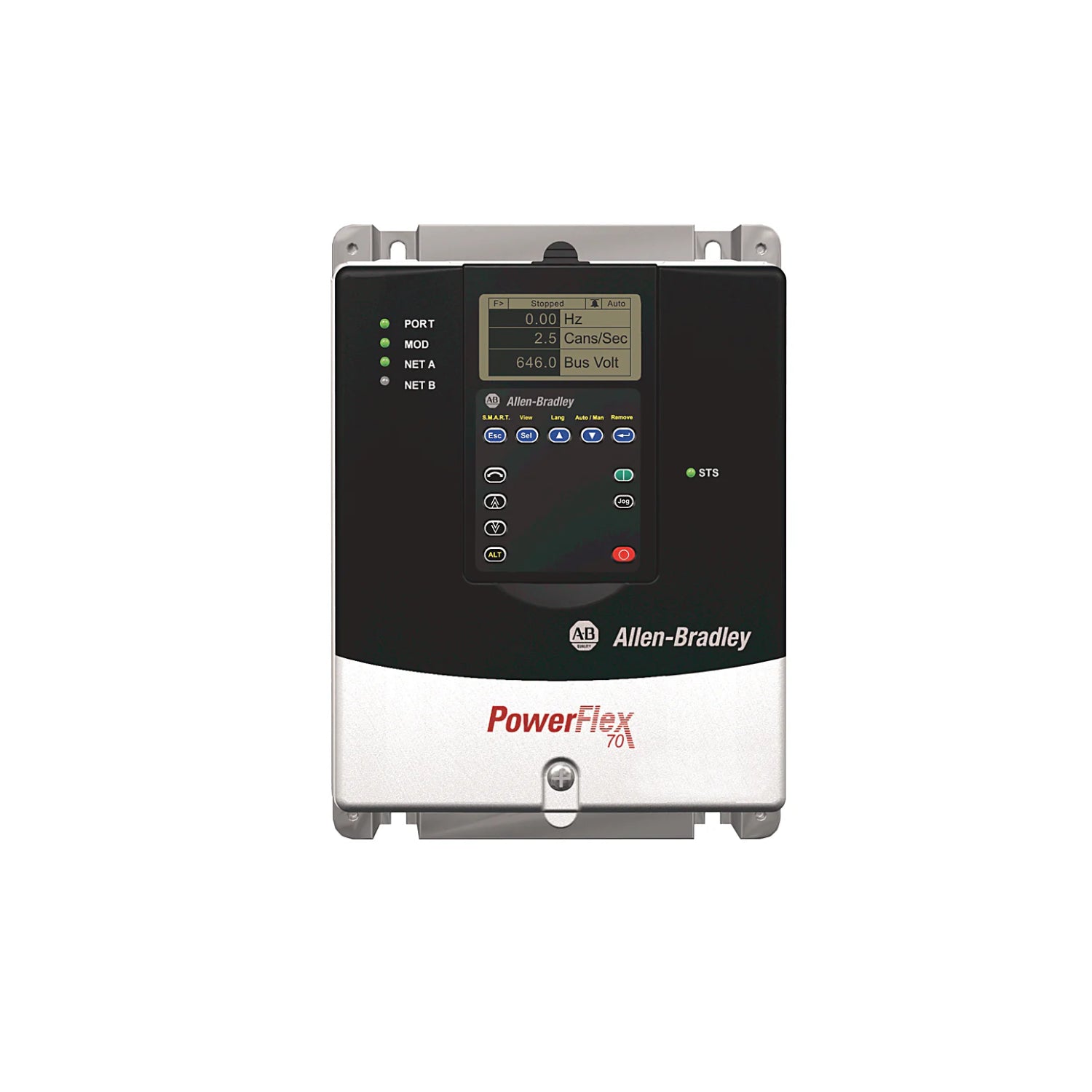

Allen-Bradley PowerFlex 70 20AC3P5A0AYNANC0 AC Drive – Compact, Cost-Effective, and EMC-Compliant Motor Control for European Industrial Applications

DDPARTSSOLUTION offers the Allen-Bradley PowerFlex 70 20AC3P5A0AYNANC0 AC Drive, a compact and economical solution ideally suited for a wide range of general-purpose industrial applications requiring compliance with European EMC directives. This drive provides reliable and efficient motor control in a small footprint, making it perfect for space-constrained installations. Designed for panel mounting, it includes a built-in brake IGBT for dynamic braking capabilities (requires an external resistor). A key feature of this model is the integrated Second Environment Filter, ensuring compliance with CE EMC directives (89/336/EEC).¹

Key Features:

• Compact Design: Small footprint optimizes panel space.
• 400V AC, 3-Phase Input: Designed for compatibility with standard European industrial power systems.
• Dual Rating (1.5 kW ND / 1.1 kW HD): Offers operational flexibility for handling various load profiles.
• Panel Mount - IP20 / NEMA Type 1: Designed for mounting within protected industrial environments.
• Brake IGBT Installed: Provides dynamic braking capability for controlled deceleration; an external brake resistor is required for operation.
• Enhanced Control: Offers advanced control features for optimized motor performance.²
• No Feedback: Operates in open-loop control mode.
• No HIM (Blank Plate): Does not include a Human Interface Module (HIM); configuration is typically performed via software.
• Without Drive Mounted Brake Resistor: Requires the use of an external brake resistor for dynamic braking functionality.³
• Second Environment Filter (CE EMC Directive 89/336/EEC): Includes a filter for compliance with CE EMC standards for use in second environment industrial locations.⁴
• No Communication Module: Lacks an optional communication module for network connectivity.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁵
• Series: PowerFlex 70
• Model: 20AC3P5A0AYNANC0
• Input Voltage: 400V AC, 3-Phase⁶
• Output Current: 3.5 A⁷
• Capacity: 1.5 kW (Normal Duty), 1.1 kW (Heavy Duty)⁸
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁹
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module
• Control: Enhanced Control
• Feedback: No Feedback

Applications:

The Allen-Bradley PowerFlex 70 20AC3P5A0AYNANC0 AC Drive is well-suited for a variety of general-purpose industrial applications requiring CE compliance, including:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications
• Applications requiring compliance with European EMC directives

Benefits:

• Cost-Effective Solution: Provides an economical solution for basic motor control requirements.
• Compact Size: Conserves valuable panel space.
• Simplified Installation: Designed for straightforward panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT allows for controlled deceleration when paired with an appropriately sized external resistor.
• CE EMC Compliance: Integrated Second Environment Filter ensures compliance with European EMC directives.¹⁰
