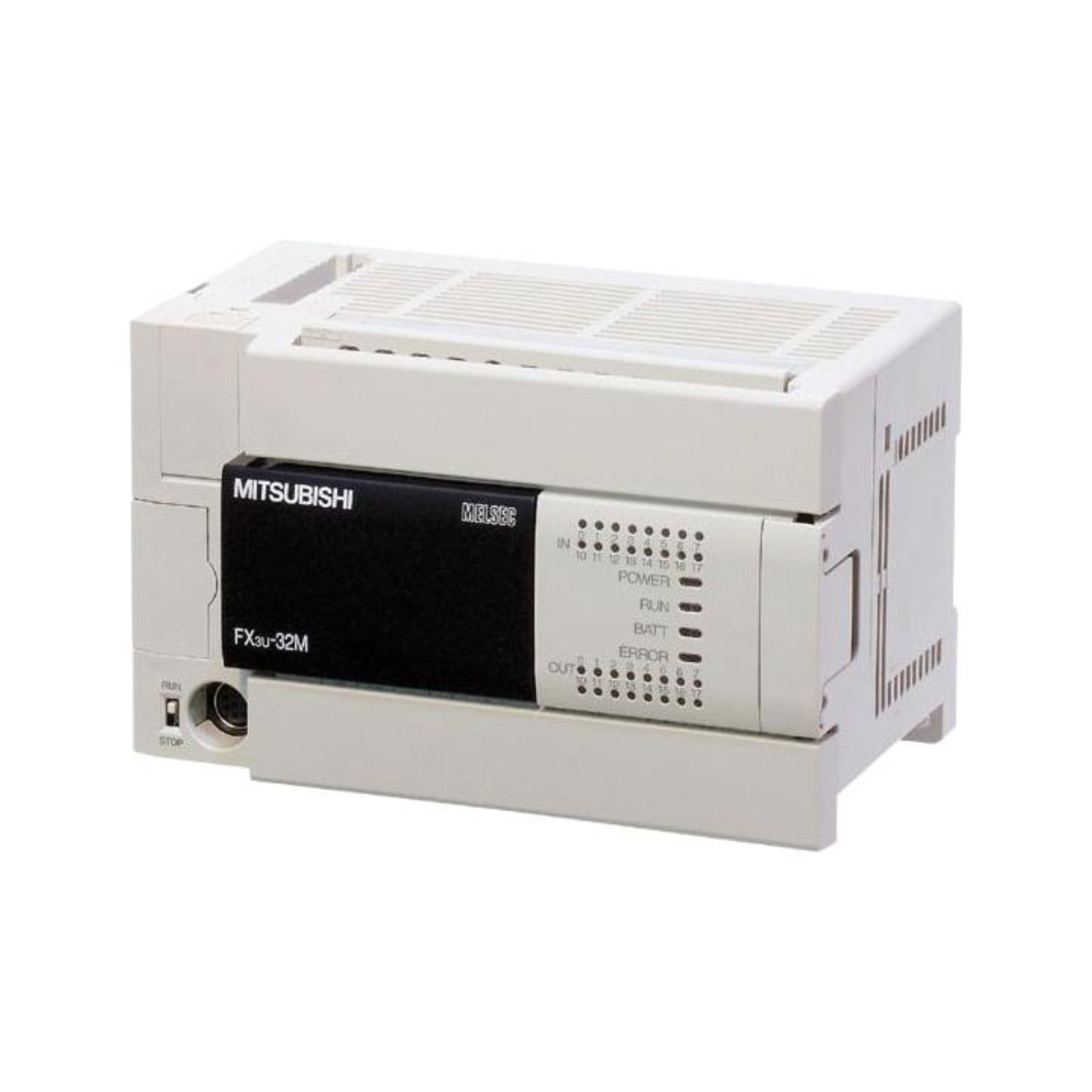

Mitsubishi FX3U-32MR-DS

Mitsubishi FX3U-32MR-DS

Overview

The Mitsubishi FX3U-32MR-DS is a compact main unit PLC from the advanced FX3U series, offering 16 digital inputs and 16 relay outputs. Powered by 100–240V AC, it provides fast processing speed, built-in memory, and high-performance control in a DIN rail-mountable format. Ideal for small to mid-size automation systems, it supports a wide range of expansion options.

Key Features

• Series: FX3U

• Total I/O Points: 32 (16 inputs, 16 relay outputs)

• Power Supply: 100–240V AC

• Input Type: 24V DC (sink/source)

• Output Type: Relay (2A max per point)

• Processing Speed: 0.21 µs per basic instruction

• Memory: 64k steps (built-in flash)

• Expansion: Supports digital, analog, and communication modules

• Mounting: DIN rail or panel

• Programming Software: GX Developer / GX Works

Technical Specifications

• Catalog Number: FX3U-32MR-DS

• Input Points: 16 (24V DC sink/source)

• Output Points: 16 (relay)

• Power Supply: 100–240V AC, 50/60 Hz

• Output Current: 2A per point, 8A common

• Built-in Features: High-speed counters, pulse outputs, timers

• Communication Options: RS-232, RS-485, Ethernet (via expansion)

• Ambient Temperature: 0°C to 55°C

• Dimensions: Approx. 150 x 90 x 86 mm

• Weight: ≈ 0.6 kg

• Certifications: CE, UL, cUL, RoHS

Applications

• OEM control panels

• Packaging equipment

• Process automation

• Food and beverage production lines

• Compact machinery with moderate I/O demand

Why Choose the FX3U-32MR-DS

• Compact and Expandable: Fits small panels with room to grow

• Reliable Power Input: Works with standard 100–240V AC

• High-Speed Processing: Handles complex logic quickly

• Flexible Programming: Supports multiple instruction sets

• Global Certification: Suitable for international deployment

Order Now

The Mitsubishi FX3U-32MR-DS PLC is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
