Omron 3G3AX-MX2-ECT

Omron 3G3AX-MX2-ECT | EtherCAT Option Board for High-Speed MX2 Inverter Integration

Overview

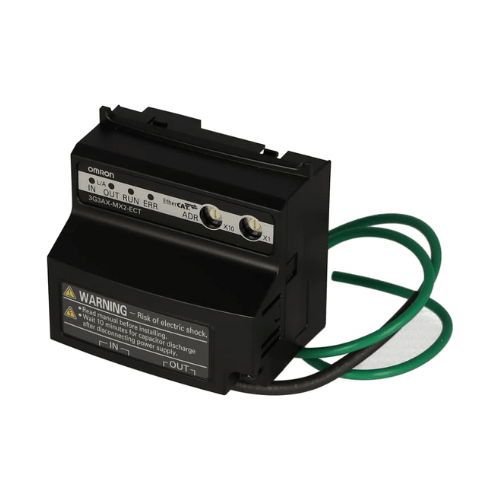

The Omron 3G3AX-MX2-ECT is an EtherCAT communication option board designed for Omron’s MX2 series inverters. It allows integration of MX2 drives into EtherCAT networks for high-speed, real-time control applications. Ideal for motion and machine control systems requiring synchronized operation and fast communication.

Key Features

• EtherCAT Compatibility: Enables MX2 inverters to communicate with EtherCAT masters.

• Real-Time Control: Supports high-speed, deterministic communication for precise motor control.

• Plug-in Module: Installs directly into the inverter, no additional wiring or modules needed.

• Flexible Integration: Allows multiple drives to be networked via EtherCAT.

• Compact Design: Maintains the compact footprint of MX2 drives.

Technical Specifications

• Model Number: 3G3AX-MX2-ECT

• Function: EtherCAT communication option

• Compatible With: Omron MX2 series inverters

• Communication Protocol: EtherCAT (CoE profile)

• Connection Type: RJ45 Ethernet ports (IN/OUT)

• Mounting: Direct slot insertion into inverter

• Voltage Supply: Powered via inverter

• Certifications: CE, RoHS compliant

Applications

• Packaging Machines

• Conveyor and Material Handling Systems

• Pick-and-Place Machines

• Synchronized Multi-Axis Motion Systems

• General Machine Automation

Why Choose Omron 3G3AX-MX2-ECT?

• Seamless integration of MX2 drives into EtherCAT-based systems

• Compact and simple plug-in design with no need for external modules

• Ideal for real-time control in synchronized and high-speed motion applications

• Backed by Omron reliability and compatibility with Sysmac Studio
