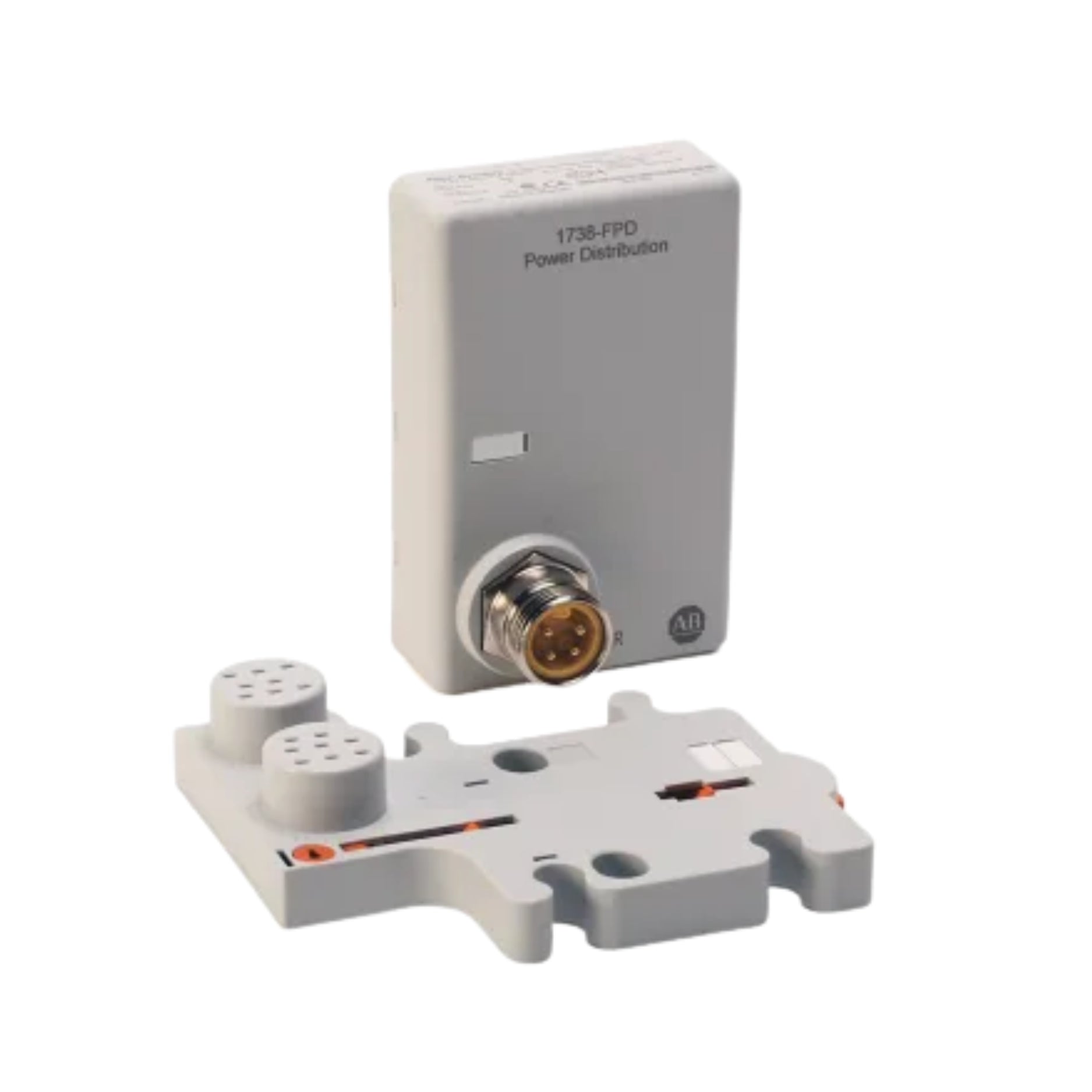

The Allen-Bradley 1738-FPD is an ArmorPoint Field Potential Distributor (FPD) module designed to allow segmentation of the field power distribution in an ArmorPoint I/O system. This module enables the change of field power sources to I/O modules located to its right, facilitating logical or functional partitioning in applications with mixed I/O requirements. The 1738-FPD passes through all backplane signals except the internal power bus, allowing for versatile voltage input configurations, including both DC and AC applications.

Key Features

• Field Power Segmentation:

  • Enables partitioning of field power distribution for logical grouping of I/O modules.

  • Supports a wide range of voltage inputs: 12V DC, 24V DC (10–28.8V DC range), and 120V AC, 240V AC (50/60 Hz).

• Robust Industrial Design:

  • Meets IP65/66/67 ratings (when properly marked), providing protection against dust and water ingress.

  • Suitable for on-machine mounting in harsh industrial environments.

• High Current Capacity:

  • Supports up to 10A maximum input current, accommodating various field devices.

• Compact and Modular:

  • Dimensions: 1.25 in. (H) x 2.63 in. (W) x 4.25 in. (D) (31.75 mm x 66.80 mm x 107.95 mm).

  • Facilitates easy integration into existing ArmorPoint I/O systems.

Technical Specifications

• Model: 1738-FPD

• Input Voltage Ratings:

  • DC: 12V DC, 24V DC nominal (10–28.8V DC range).

  • AC: 120V AC, 240V AC nominal (50/60 Hz).

• Input Current: 10A maximum.

• Isolation Voltage: 50V RMS, 120V RMS/240V RMS; tested at 1528V AC RMS for 60 seconds.

• Environmental Ratings:

  • Operating Temperature: -20°C to +60°C (-4°F to +140°F).

  • Storage Temperature: -40°C to +85°C (-40°F to +185°F).

  • Relative Humidity: 5% to 95% non-condensing.

  • Shock: 30g operating, 50g non-operating.

  • Vibration: 5g at 10–500Hz.

• Certifications:

  • UL Listed.

  • CE Marked.

  • C-Tick.

Applications

• Industrial Automation Systems:

  • Facilitates logical segmentation of field power in complex I/O configurations.

  • Ideal for systems requiring mixed voltage levels or isolation between different sections.

• On-Machine Applications:

  • Suitable for direct mounting on machinery, reducing the need for additional enclosures.

  • Provides robust performance in environments exposed to dust and moisture.

Order Now

Available and ships worldwide. For assistance with integration into your existing ArmorPoint I/O system or to discuss your specific application needs, please contact our sales team.
