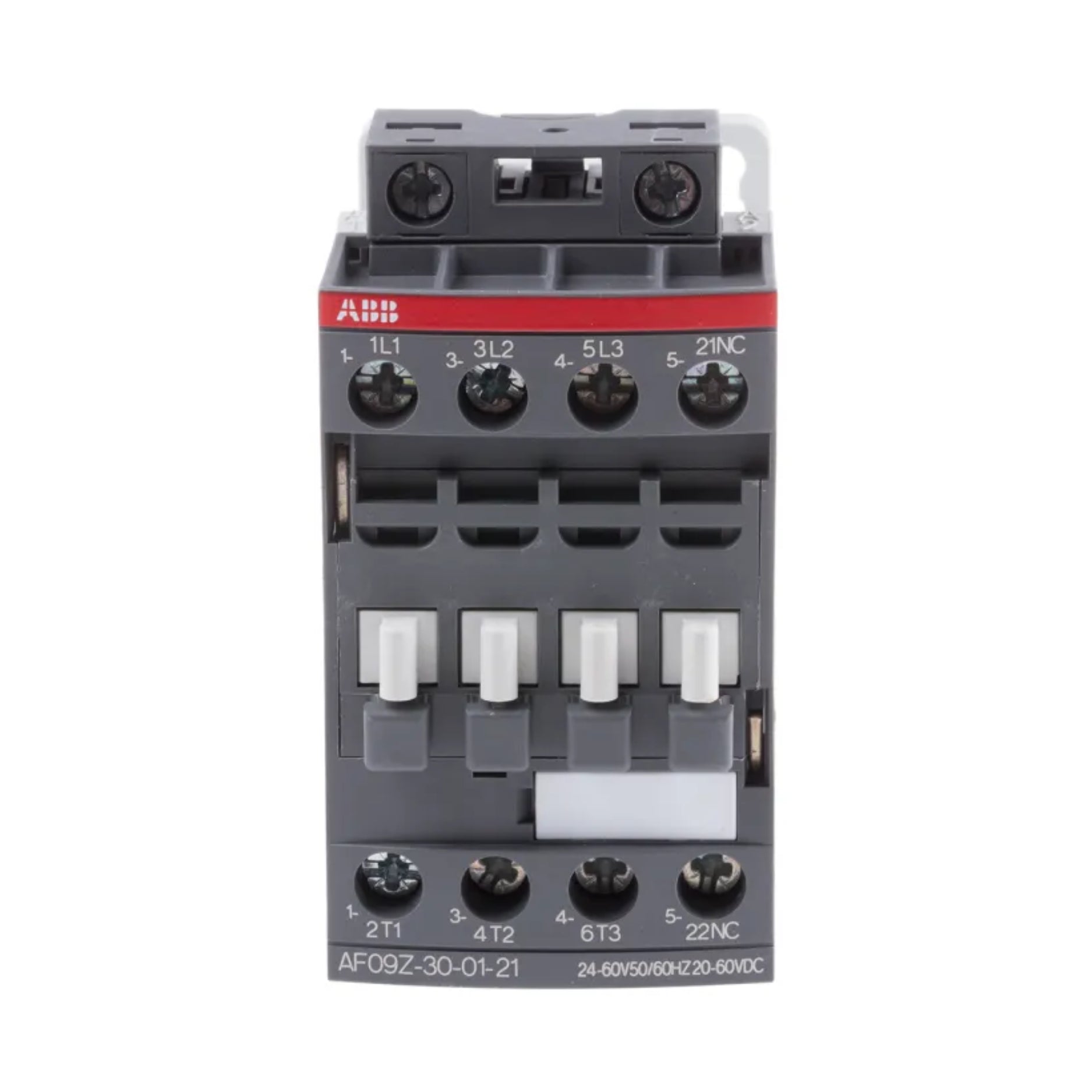

ABB AF09Z-30-01-21 | 3-Pole IEC Contactor

ABB AF09Z-30-01-21 | 3-Pole IEC Contactor

Overview

The ABB AF09Z-30-01-21 is a high-performance IEC contactor designed for reliable switching of electrical loads in industrial and commercial applications. It features a wide-range electronic coil, reducing the need for multiple coil voltages and ensuring consistent performance across various operating conditions.

Key Features

• Wide-range electronic coil: Operates with AC or DC control voltage
• Compact and modular design: Saves panel space and allows easy integration
• High electrical durability: Ensures reliable operation over an extended lifespan
• Built-in surge suppression: Protects control circuits from voltage spikes
• Flexible mounting options: DIN rail or screw mounting
• Front and side-mounting auxiliary contacts available

Technical Specifications

• Model: AF09Z-30-01-21
• Number of Poles: 3
• Rated Operational Current (AC-3): 9A
• Rated Operational Voltage: Up to 690V AC
• Control Voltage: 100-250V AC/DC
• Frequency: 50/60Hz
• Auxiliary Contacts: 1NO (Normally Open)
• Operating Temperature Range: -40°C to +70°C
• Mounting: DIN rail or panel mount
• Certifications: CE, UL, cUL, RoHS

Applications

• Motor control and automation systems
• HVAC equipment and compressors
• Industrial machinery and conveyor systems
• Electrical distribution and panel building
• Pump and fan control

The ABB AF09Z-30-01-21 contactor provides a reliable and efficient solution for industrial and commercial motor control applications, ensuring durability and energy-efficient operation.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
