GE Fanuc IC660BBA023 | 6-Channel Thermocouple Input Block | 24/48 VDC | Genius I/O Series

Title:

GE Fanuc IC660BBA023 | 6-Channel Thermocouple Input Block | 24/48 VDC | Genius I/O

Meta Description (under 165 characters):

GE Fanuc IC660BBA023 thermocouple input block with 6 channels, 24/48 VDC power, and advanced diagnostics for precise industrial temperature monitoring.

Overview

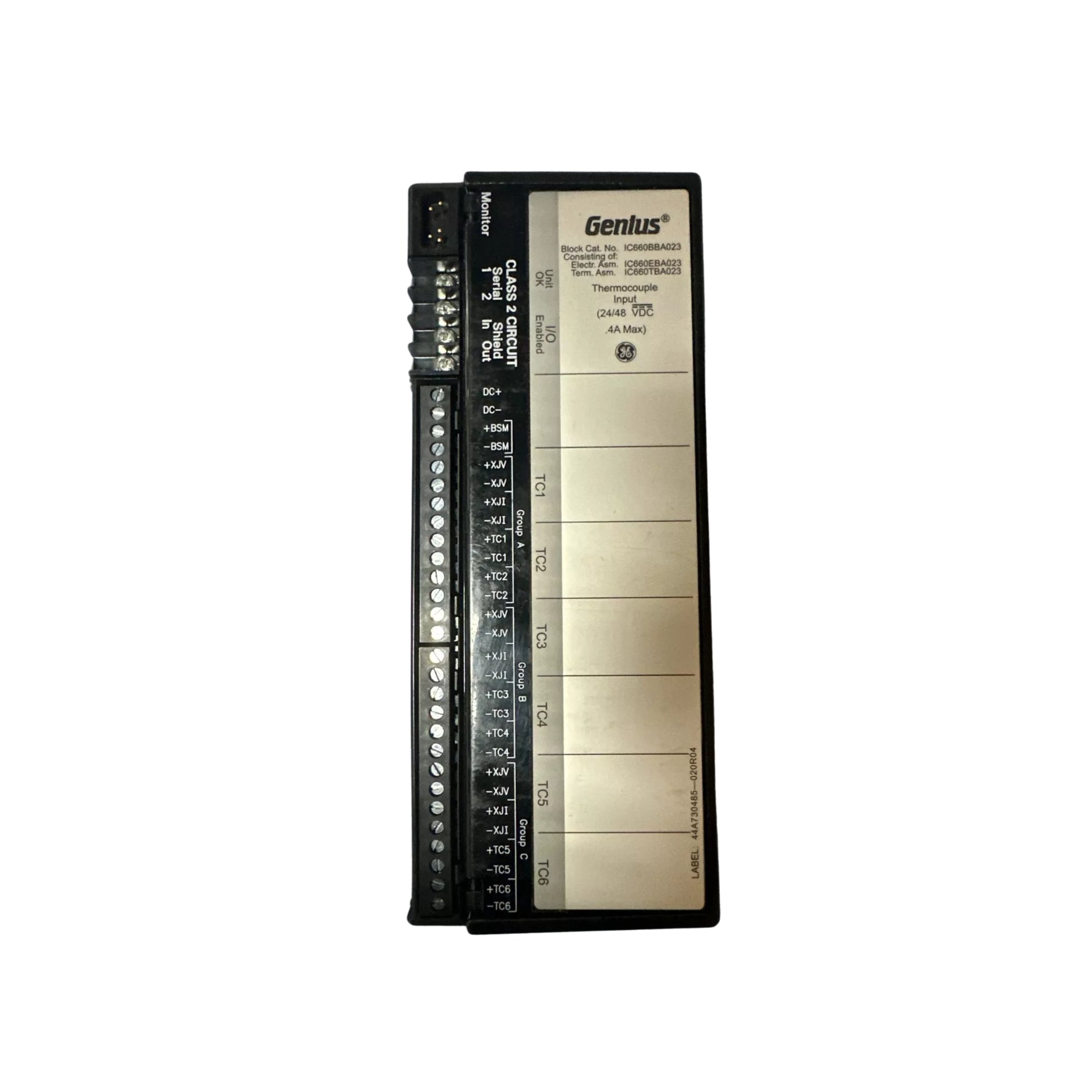

The GE Fanuc IC660BBA023 is a 6-channel thermocouple input block designed for the Genius I/O system. It provides accurate temperature measurements by accepting inputs from various thermocouple types. With its robust design and advanced diagnostics, it ensures reliable operation in demanding industrial environments.

Key Features

• Input Channels: 6 thermocouple inputs, grouped in three isolated pairs

• Supported Thermocouple Types: J, K, T, E, R, S, B, N

• Input Voltage Range: -25 mV to +150 mV

• Power Supply: 24/48 VDC

• Diagnostics: Open wire detection, overrange/underrange indication, high/low alarms, internal fault detection

• Cold Junction Compensation: Internal and external options

• Mounting: Field-mountable design suitable for industrial environments

Technical Specifications

• Model Number: IC660BBA023

• Power Supply Voltage: 18–56 VDC (10% max. ripple)

• Power Supply Dropout Time: 10 ms

• Heat Dissipation: 9 Watts maximum

• Input Update Time: 2 seconds (typical), 3 seconds (maximum)

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 100°C (-40°F to 212°F)

• Humidity: 5% to 95% non-condensing

• Dimensions (H x W x D): 8.83 x 3.56 x 4.42 inches (224.4 x 90.4 x 112.3 mm)

• Weight: Approximately 4 lbs (1.8 kg)

Applications

• Industrial Automation: Precise temperature monitoring in manufacturing processes

• Process Control: Integration into systems requiring accurate thermal measurements

• HVAC Systems: Monitoring and controlling heating, ventilation, and air conditioning

• Energy Management: Temperature data acquisition for energy-efficient operations

Why Choose the IC660BBA023?

• High Accuracy: Precise temperature measurements with advanced diagnostics

• Versatility: Supports multiple thermocouple types for diverse applications

• Robust Design: Built to withstand harsh operating conditions

• Easy Integration: Seamlessly integrates into Genius I/O networks

• Comprehensive Diagnostics: Ensures system reliability and simplifies troubleshooting

Order Now

The GE Fanuc IC660BBA023 thermocouple input block is available for immediate shipment.
