Allen-Bradley 22C-D088A103

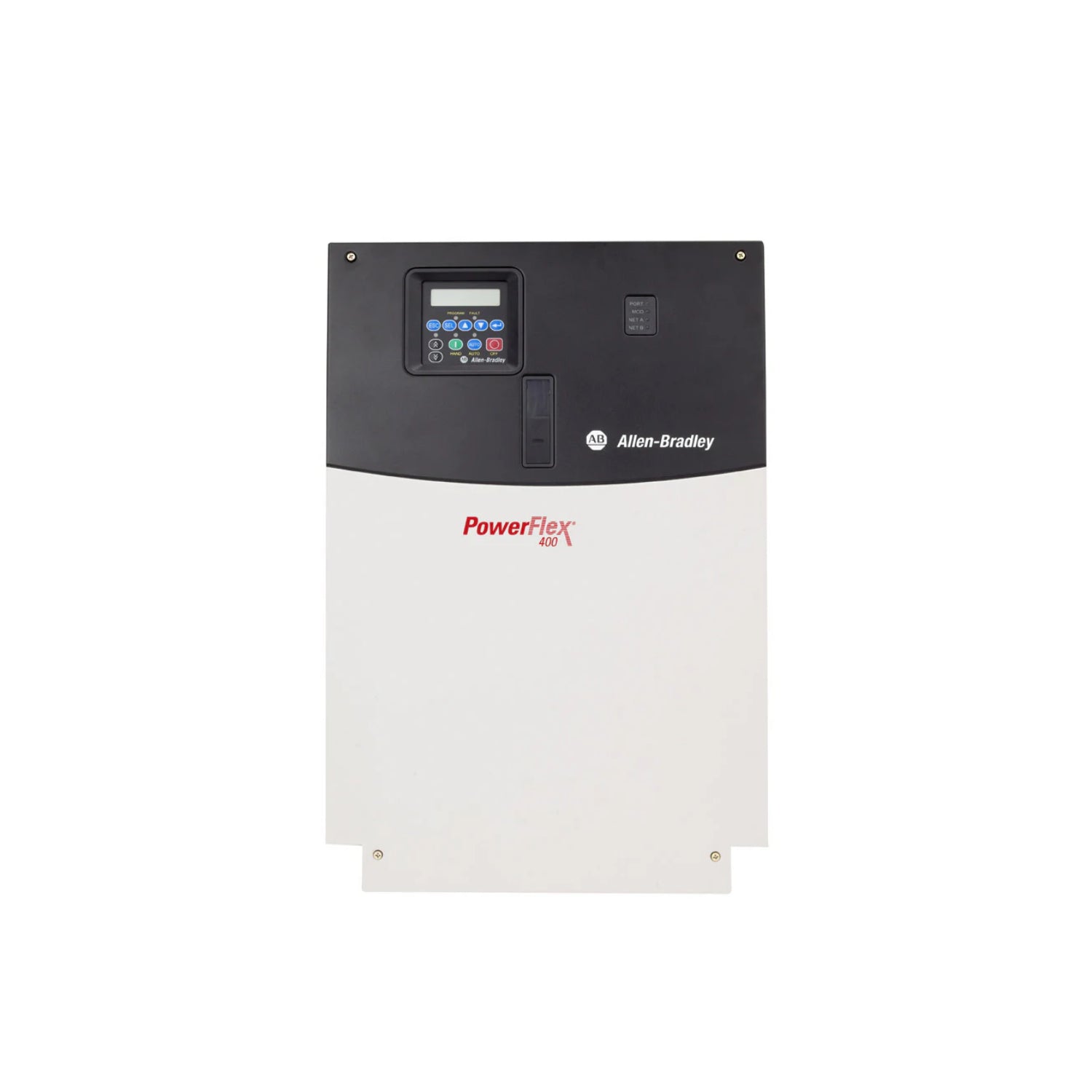

Allen-Bradley 22C-D088A103 | PowerFlex 400 Fan & Pump AC Drive

Overview:

The Allen-Bradley 22C-D088A103 is a PowerFlex 400 AC drive, designed specifically for fan and pump control applications in HVAC and industrial environments. Operating at 480V AC, 3-phase, with an 88A output, this drive supports 45 kW (60HP) motor control and features an IP30 (NEMA 1 / UL Type 1) enclosure for reliable performance in controlled environments.

Equipped with RS485 communication, a fixed keypad interface, and optimized for pump and fan applications, this drive enhances energy efficiency, process control, and motor performance.

Key Features:

. 480V AC, 3-Phase Input – Designed for industrial fan and pump applications
. 88A Output Current | 60HP (45 kW) – Supports high-powered motor control
. Frame Size E – Compact and efficient power conversion
. IP30 (NEMA 1 / UL Type 1) Enclosure – Suitable for standard industrial installations
. Fixed Keypad Interface – Provides user-friendly control and monitoring
. RS485 Communication – Enables seamless integration into control networks
. Optimized for Fan & Pump Control – Enhances energy efficiency and process automation
. No Brake IGBT – Designed for applications that do not require braking resistors

Technical Specifications:

• Model: 22C-D088A103
• Series: PowerFlex 400
• Voltage Rating: 480V AC
• Phase: 3-Phase
• Output Current: 88A
• Power Rating: 45 kW (60HP)
• Frame Size: E
• Enclosure Rating: IP30 (NEMA 1 / UL Type 1)
• Keypad: Fixed
• Communication: RS485
• Brake IGBT: No
• Application: HVAC, pump, and fan control

Applications:

. HVAC Systems – Optimized control for fans and blowers
. Pump Control in Water Treatment & Irrigation – Ensures efficient fluid handling
. Industrial Ventilation & Air Handling – Supports variable-speed fan control
. Cooling Towers & Compressors – Enhances energy efficiency in industrial applications

Why Choose the Allen-Bradley 22C-D088A103?

The Allen-Bradley 22C-D088A103 PowerFlex 400 AC drive is a high-performance fan and pump drive, offering energy-efficient motor control, robust RS485 communication, and a user-friendly fixed keypad. It is an ideal solution for industrial and commercial HVAC applications.
