Allen-Bradley 20G11ND096AA0NNNNN

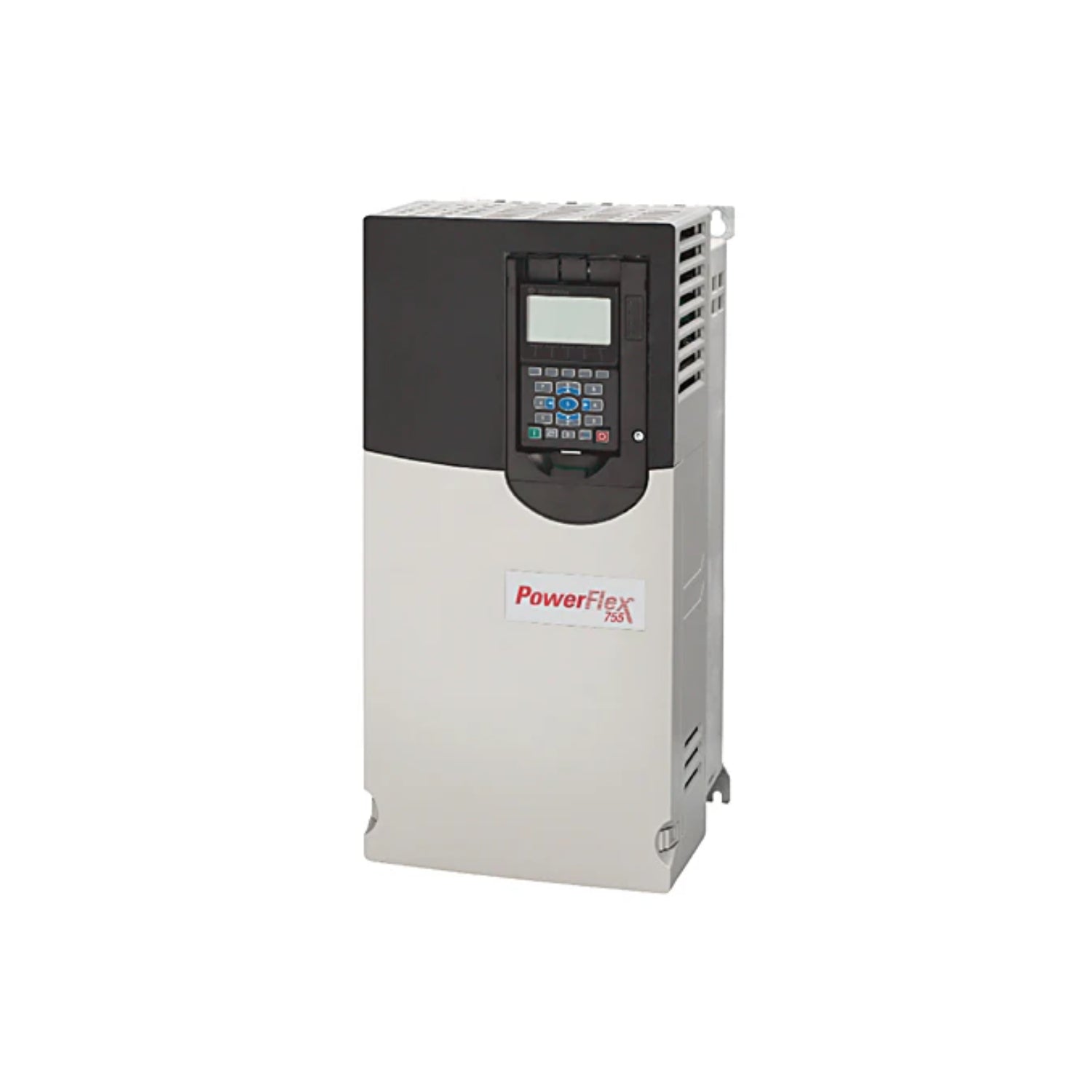

Allen-Bradley 20G11ND096AA0NNNNN | PowerFlex 755 AC Drive

Overview:

The Allen-Bradley 20G11ND096AA0NNNNN is a high-performance PowerFlex 755 AC drive, designed for precision motor control in demanding industrial applications. Operating at 480V AC, 3-phase, with an output current of 96A, this drive supports 75HP for normal duty and 60HP for heavy duty applications.

This drive features air cooling, a 6-pulse AC input, and a filtered configuration to reduce electrical noise. Additionally, it includes a dynamic braking (DB) transistor for enhanced braking performance, with the common mode (CM) jumper removed for compliance with specific industrial applications.

The open-type enclosure is designed for panel mounting, and this model does not include an HIM (Human Interface Module), requiring external programming interfaces.

Key Features:

. 480V AC, 3-Phase Input – Designed for industrial motor control applications
. Output Current: 96A – Supports high-power motor operation
. 75HP (Normal Duty) / 60HP (Heavy Duty) – Handles a range of industrial loads
. Air-Cooled Design – Ensures efficient heat dissipation
. 6-Pulse AC Input – Standard rectifier configuration for reliable power conversion
. Filtered Configuration – Reduces electrical noise for improved performance
. Dynamic Braking (DB) Transistor – Enhances braking capability for high-inertia loads
. Common Mode (CM) Jumper Removed – Complies with specific industrial grounding requirements
. Open-Type Enclosure – Suitable for installation in electrical control panels
. No HIM (Human Interface Module) – Requires an external programming interface

Technical Specifications:

• Model: 20G11ND096AA0NNNNN
• Series: PowerFlex 755
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 96A
• Power Rating:
  • 75HP (Normal Duty)
  • 60HP (Heavy Duty)
• Cooling Method: Air Cooled
• Input Configuration: 6-Pulse AC Input
• Enclosure Type: Open
• Filter: Included
• Dynamic Braking Transistor: Yes
• CM Jumper: Removed
• HIM (Human Interface Module): Not Included
• Mounting: Control Panel

Applications:

. Industrial Motor Control – Provides precise variable speed control
. Manufacturing & Automation Systems – Enhances efficiency and productivity
. Pumps, Fans, & Compressors – Supports various motor-driven applications
. Material Handling & Conveyor Systems – Ensures smooth operation and torque management
. High-Inertia Load Applications – Utilizes dynamic braking for improved performance

Why Choose the Allen-Bradley 20G11ND096AA0NNNNN?

The Allen-Bradley 20G11ND096AA0NNNNN PowerFlex 755 AC drive is a high-performance solution for industrial motor control, offering network-ready integration, dynamic braking support, and robust power handling. It is an ideal choice for automation and manufacturing environments requiring precision motor control and energy efficiency.
