Allen-Bradley 20G11ND011AA0NNNNN

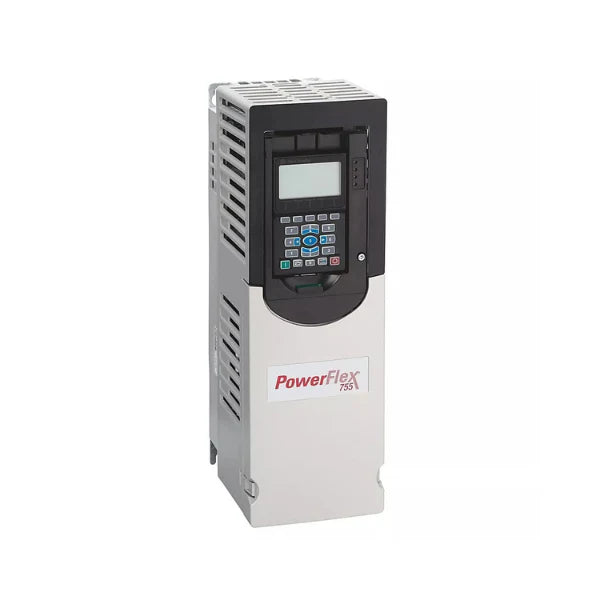

Allen-Bradley 20G11ND011AA0NNNNN | PowerFlex 755 AC Drive

Overview:

The Allen-Bradley 20G11ND011AA0NNNNN is a high-performance PowerFlex 755 AC drive, designed for precision motor control in industrial automation. Operating at 480V AC, 3-phase, this drive delivers 11A output current, supporting 7.5HP normal duty (ND) and 5HP heavy duty (HD) applications.

This model features embedded EtherNet/IP connectivity, enabling seamless integration with industrial networks. It also includes a dynamic braking (DB) transistor, a filtered configuration, and a CM jumper removed for enhanced grounding and electrical noise compliance. The open-type enclosure is designed for panel mounting, and the drive comes without a Human Interface Module (HIM).

Key Features:

• 480V AC, 3-Phase Input – Provides reliable industrial power
• 11A Output Current – Supports consistent motor control
• 7.5HP (Normal Duty) / 5HP (Heavy Duty) – Handles various motor load requirements
• Embedded EtherNet/IP Communication – Enables real-time network integration
• Air-Cooled Design – Enhances efficiency and thermal management
• Filtered Configuration – Reduces electrical noise interference
• Dynamic Braking (DB) Transistor – Supports braking for high-inertia loads
• Common Mode (CM) Jumper Removed – Ensures compliance with industrial grounding standards
• Open-Type Enclosure – Suitable for panel mounting in controlled environments
• No HIM (Human Interface Module) – Requires an external interface for configuration

Technical Specifications:

• Model: 20G11ND011AA0NNNNN
• Series: PowerFlex 755
• Input Voltage: 480V AC
• Phase: 3-Phase
• Output Current: 11A
• Power Rating:
  • 7.5HP (Normal Duty, Frame 1 & 2)
  • 5HP (Heavy Duty, Frame 1)
  • 7.5HP (Heavy Duty, Frame 2)
• Cooling Method: Air Cooled
• Input Configuration: AC Input with DC Terminals
• Enclosure Type: Open
• Filter: Included
• Dynamic Braking Transistor: Yes
• CM Jumper: Removed
• Communication: Embedded EtherNet/IP
• HIM (Human Interface Module): Not Included
• Frame Size: 2
• Mounting: Control Panel

Applications:

• Industrial Motor Control – Ensures precise variable speed control
• Manufacturing & Automation Systems – Improves efficiency and process optimization
• Pumps, Fans, & Compressors – Supports energy-efficient operation
• Material Handling & Conveyor Systems – Ensures smooth motion and load management
• High-Inertia Load Applications – Utilizes dynamic braking for improved stopping performance

Why Choose the Allen-Bradley 20G11ND011AA0NNNNN?

The Allen-Bradley 20G11ND011AA0NNNNN PowerFlex 755 AC drive is a versatile, high-efficiency motor control solution, offering advanced network integration, dynamic braking, and robust performance. It is an ideal choice for industrial applications requiring precision motor control and seamless EtherNet/IP connectivity.
