Allen-Bradley 20BC105A0AYNANC0

Allen-Bradley 20BC105A0AYNANC0

Overview

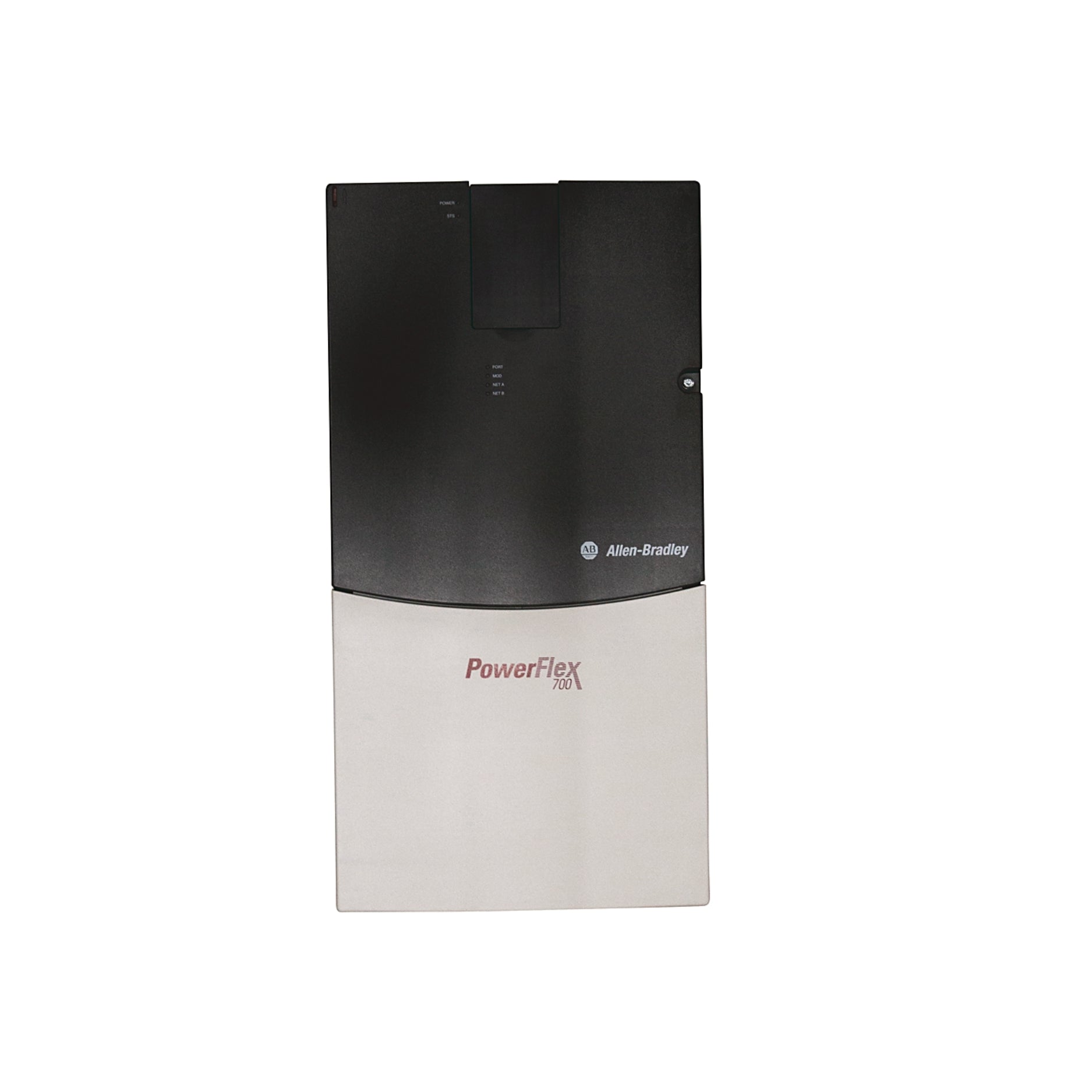

The Allen-Bradley 20BC105A0AYNANC0 is a high-performance PowerFlex 700 AC drive designed for demanding industrial motor control applications. Operating on a 400V AC three-phase input, this drive delivers 55 kW (Normal Duty) and 45 kW (Heavy Duty) power output, with a 105 A output current. It features vector control, a brake IGBT, and a Second Environment CE EMC filter for electromagnetic compliance. The unit is panel mounted with an IP20 / NEMA Type 1 enclosure, and comes without a HIM module or communication interface, making it ideal for system-integrated environments.

Key Features

• Power Output: 55 kW Normal Duty / 45 kW Heavy Duty

• Input Voltage: 400V AC, 3-phase

• Output Current: 105 A

• Enclosure: IP20 / NEMA Type 1 (panel mount)

• Brake IGBT: Installed

• CE EMC Filter: Included (Second Environment per 89/336/EEC)

• HIM Module: Not included (blank plate)

• Communication Module: Not included

• Control Mode: Vector control

• Feedback: Not included

• Conformal Coating: Yes, for protection against harsh environments

Technical Specifications

• Catalog Number: 20BC105A0AYNANC0

• Series: PowerFlex 700

• Frequency Range: 0–500 Hz

• Cooling Method: Internal fan

• Ambient Operating Temperature: 0°C to +50°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95%, non-condensing

• Protection Features: Overvoltage, undervoltage, overload, and motor fault detection

• Certifications: UL, cUL, CE (with included filter), RoHS

• Mounting Orientation: Panel mount only

• Frame Size: 5

• Dimensions (H × W × D): 555.8 mm × 280.3 mm × 219.8 mm

• Weight: Approximately 39 kg

Applications

• Heavy-duty industrial motor applications

• Conveyors, pumps, and compressors

• Automated machinery with braking and EMC compliance needs

• OEM equipment requiring compact, integrated drive solutions

Why Choose the 20BC105A0AYNANC0

• High Power Density: Delivers substantial power in a compact form factor

• Integrated CE-Compliant EMC Filter: Ensures compliance with European EMC directives

• Enhanced Motor Control: Offers high-performance algorithms for precise motor control

• Robust Design: Built to withstand demanding industrial environments

• Conformal Coating: Provides additional protection against moisture, dust, and corrosive substances

Order Now

The Allen-Bradley 20BC105A0AYNANC0 PowerFlex 700 AC drive is available and ships worldwide. Enhance your motor control systems with this reliable and efficient drive.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
