Allen-Bradley 20BC085A0AYNANC0

Allen-Bradley 20BC085A0AYNANC0

Overview

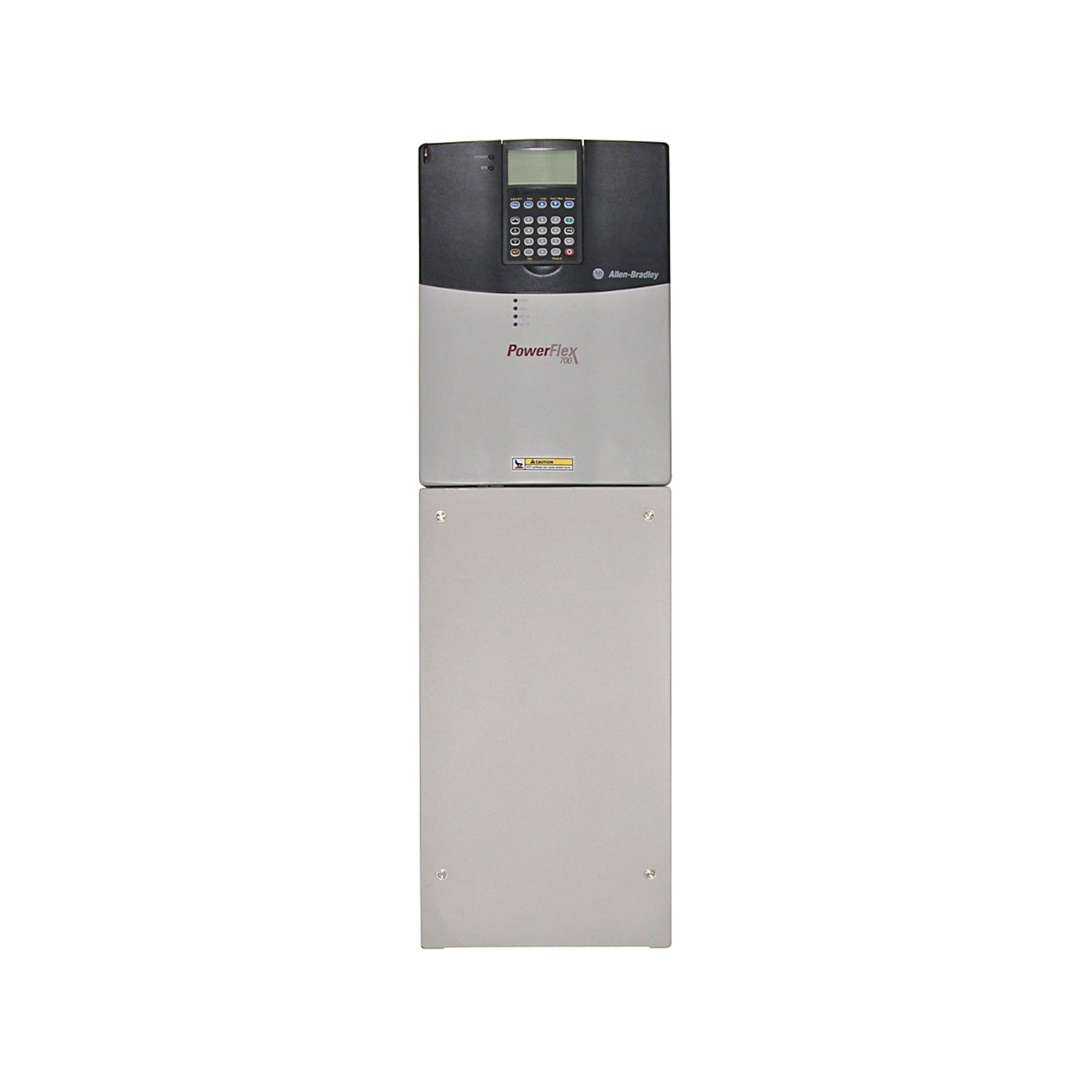

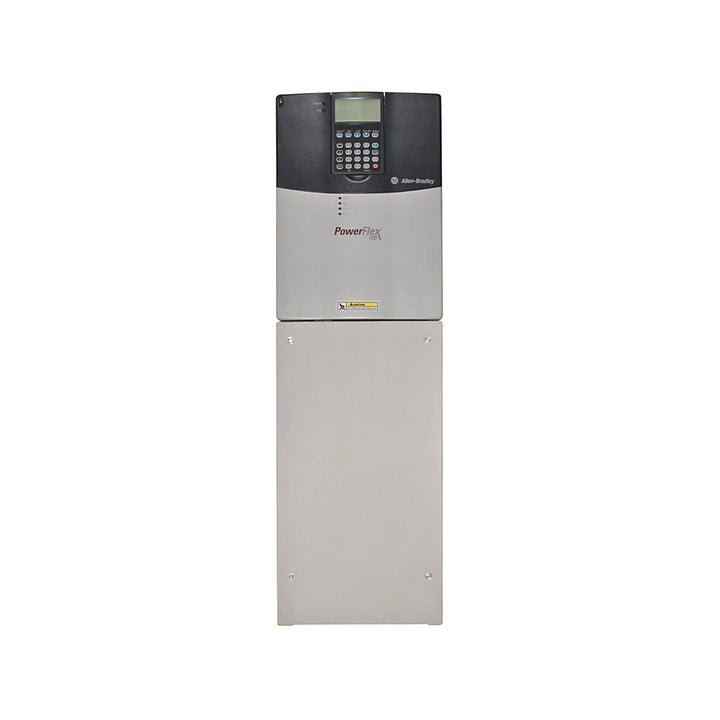

The Allen-Bradley 20BC085A0AYNANC0 is a high-capacity PowerFlex 700 AC drive designed for demanding industrial motor control. Supporting up to 60 HP (45 kW Normal Duty) or 50 HP (37 kW Heavy Duty), it runs on 400V AC three-phase input with 85 A output current. Engineered for precision vector control, this model features IP20 / NEMA Type 1 panel-mounting, a brake IGBT, and a second environment CE-compliant EMC filter for enhanced noise immunity in sensitive installations.

Key Features

• Power Rating: 60 HP (45 kW) Normal Duty / 50 HP (37 kW) Heavy Duty

• Input Voltage: 400V AC, three-phase

• Output Current: 85 A

• Enclosure: IP20 / NEMA Type 1

• Brake IGBT: Installed

• CE EMC Filter: Second Environment (89/336/EEC)

• HIM (Display Module): Not included (blank plate)

• Communication Module: Not included

• Control Mode: Vector control with 24V I/O

• Feedback: Not included

Technical Specifications

• Catalog Number: 20BC085A0AYNANC0

• Series: PowerFlex 700

• Motor Control Modes: V/Hz, sensorless vector, and full vector control

• Frequency Range: 0–500 Hz

• Ambient Temp Range: 0°C to +50°C

• Cooling Method: Internal fan

• Certifications: UL, cUL, CE (with EMC filter), RoHS

• Protection Features: Overload protection, over/undervoltage, motor stall, fault diagnostics

Applications

• Heavy-duty conveyors and compressors

• High-inertia fan and blower systems

• Process automation requiring torque precision

• CE-compliant industrial environments with electromagnetic noise considerations

Why Choose the 20BC085A0AYNANC0

• Delivers robust 60 HP motor control with precision

• Built-in CE filter ensures EMC compliance

• Brake IGBT supports dynamic braking in high-demand applications

• Supports vector control for torque-sensitive operations

Order Now

The Allen-Bradley 20BC085A0AYNANC0 PowerFlex 700 AC drive is in stock and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
